Personal Climber Owner’s Manual Page 5
Assembling the Personal Climber
Attach the Feet to the Base
Carefully turn the base (1) upside down. Attach the left (2) and right (3) feet using three of the
5/16” by 2.25” screws (9) and washers (10), and one 5/16” nut (11). Attach the front foot using
two of the 5/16” by 2” screws (8) and washers (10). See Figure 1. Roll the base onto its feet.

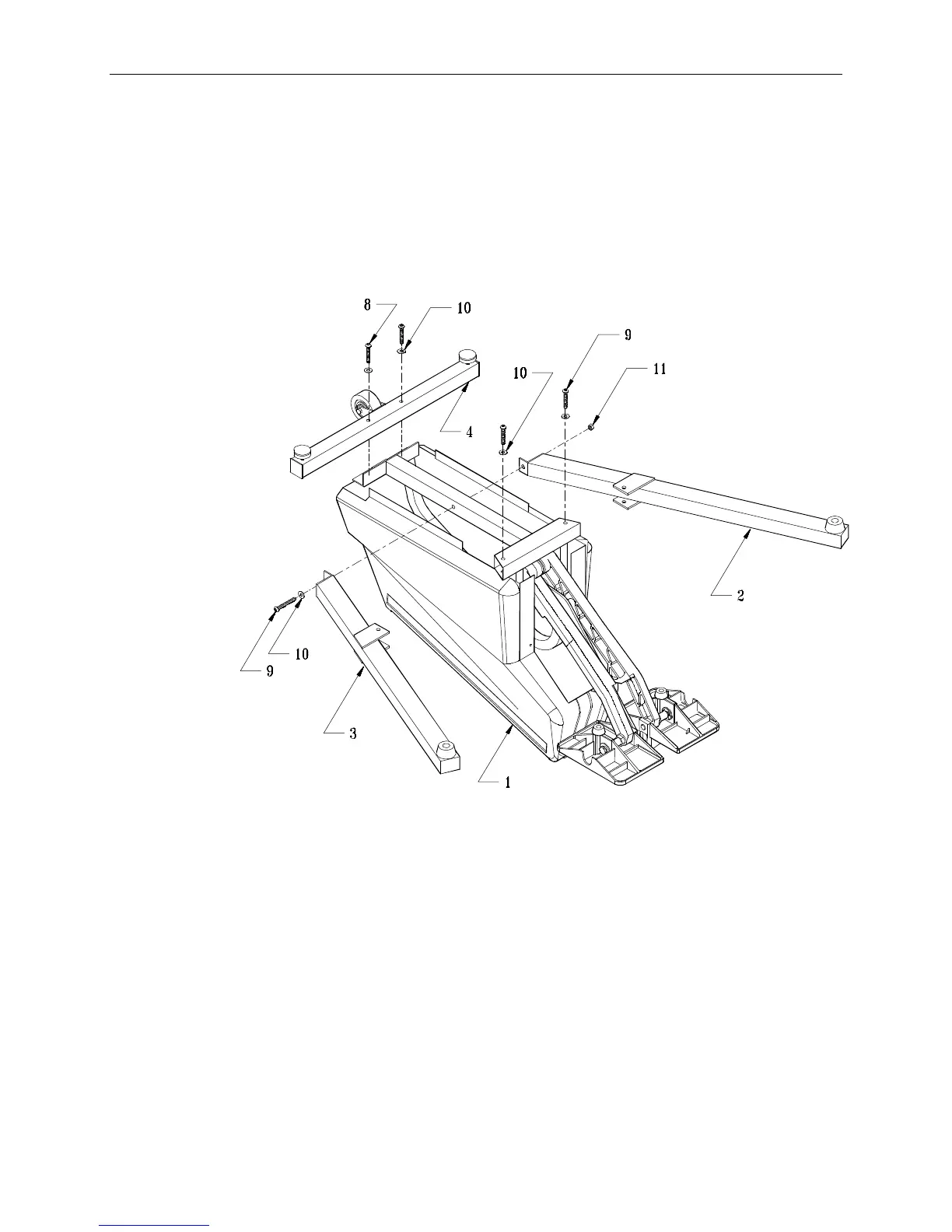

Figure 1 - Attaching the Feet
