Tecumseh HM100 Technician's Handbook

25
58
57

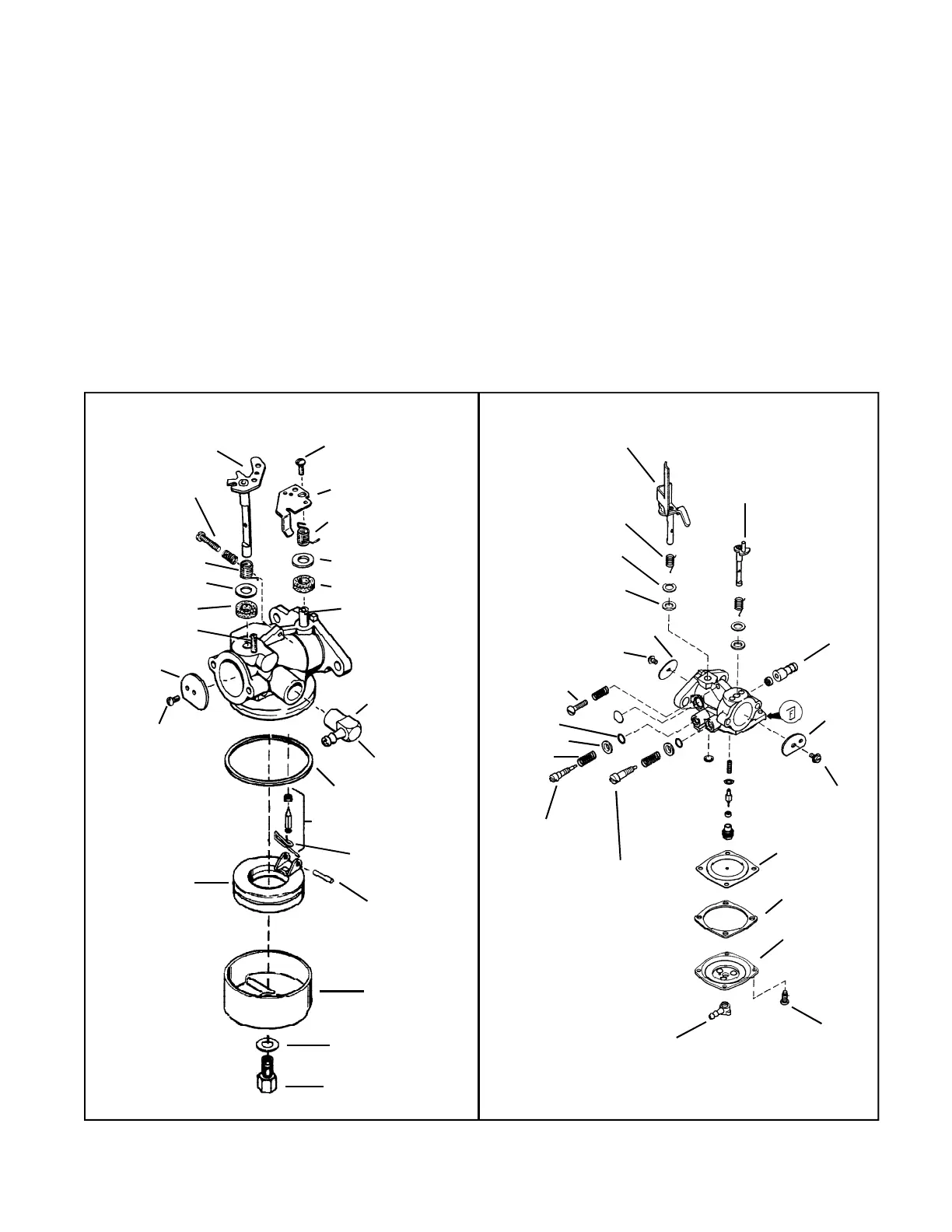

FLOAT TYPE CARBURETOR DIAPHRAGM TYPE CARBURETOR
LOW SPEED
ADJUSTMENT
SCREW
HIGH SPEED
ADJUSTMENT
SCREW
THROTTLE LEVER
AND SHAFT
SPRING
WASHER
SEAL
WASHER
SPRING
PRIMER FITTING
DIAPHRAGM
COVER
DIAPHRAGM
GASKET
SHUTTER
SCREW
FUEL INLET
CHOKE LEVER
AND SHAFT
FELT SEAL
THROTTLE SHUTTER
DIAPHRAGM
IDLE
ADJUSTMENT
SCREW
SHUTTER SCREW
CHOKE SHAFT
SELF TAPPING SCREW
LEVER
SPRING
WASHER
FELT SEAL
THROTTLE SHAFT
IDLE CRACK
SCREW AND
SPRING
SPRING
WASHER
FELT SEAL
CHOKE STOP
SPRING
SCREW
SHUTTER
SHANK
FUEL FITTING
"O" RING
SEAT AND CLIP
INLET NEEDLE
SPRING CLIP
FLOAT SHAFT
FLOAT
FLOAT BOWL
HIGH SPEED BOWL NUT
BOWL NUT WASHER
DIAPHRAGM
COVER SCREW
CHOKE
SHUTTER
Throttle Lever
Remove the throttle lever and spring and file off the peened end of the throttle shaft until the lever can be removed. Install
the throttle spring and lever on the new carburetor with the self-tapping screw furnished. If dust seals are furnished,
install them under the return spring.
Idle Speed Adjustment Screw
Remove the screw assembly from the original carburetor and install it in the new carburetor. Turn it in until it contacts the
throttle lever. Then an additional 1-1/2 turns for a static setting.
Final Checks
Consult the service section under “Pre-sets and Adjustments” and follow the adjustment procedures before placing the
carburetor on the engine.
