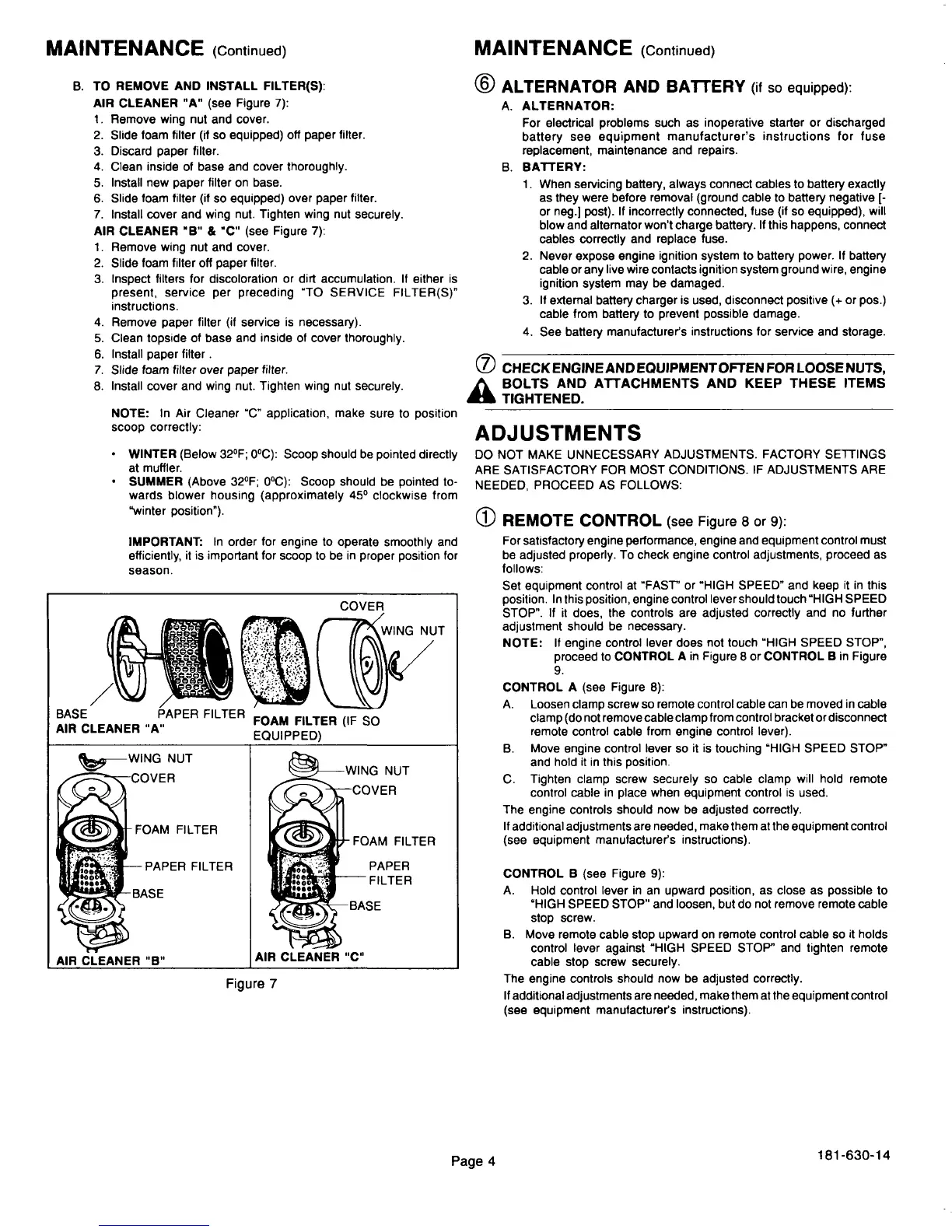

MAINTENANCE (Continued)
B.
TO REMOVE AND INSTALL FILTER(S):
AIR CLEANER
nAn (see Figure 7):
1.
Remove wing nut and cover.
2.
Slide foam filter (if so equipped) off paper filter.
3.
Discard paper filter.
4.
Clean inside of base and cover thoroughly.
5.
Install new paper filter
on
base.
6. Slide foam filter (if so equipped) over paper filter.
7. Install cover and wing nut. Tighten wing nut securely.
AIR CLEANER
"B"
&
"C"
(see Figure 7):
1. Remove wing nut and cover.
2.
Slide foam filter off paper filter.
3.
Inspect filters for discoloration or dirt accumulation.
If
either
is
present, service per preceding "TO SERVICE FILTER(S)"
instructions.
4.
Remove paper filter (if service
is
necessary).
5.
Clean topside of base and inside of cover thoroughly.
6. Install paper filter.
7.
Slide foam filter over paper filter.
8. Install cover and wing nut. Tighten wing nut securely.
MAINTENANCE (Continued)
® ALTERNATOR AND
SA
TTERY (if so equipped):
A.
ALTERNATOR:
For electrical problems such as inoperative starter or discharged
battery see
equipment
manufacturer's
instructions
for
fuse
replacement, maintenance and repairs.
B.
BATTERY:
1. When servicing battery, always connect cables to battery exactly
as they were before removal (ground cable to battery negative [-
or neg.) post).
If incorrectly connected, fuse (if so equipped), will
blow and altematorwon't charge battery.
If this happens, connect
cables correctly and replace fuse.
2.
Never expose engine ignition system to battery power. If battery
cable or any live wire contacts ignition system ground wire, engine
ignition system may be damaged.
3.
If
extemal battery charger
is
used, disconnect positive (+ or pos.)
cable from battery to prevent possible damage.
4.
See battery manufacturer's instructions for service and storage.
(l) CHECKENGINE AND EQUIPMENTOFTENFOR LOOSE NUTS,
h BOLTS AND ATTACHMENTS AND KEEP THESE ITEMS
..
TIGHTENED.
Figure 7
CONTROL B (see Figure 9):
A.
Hold control lever
in
an
upward position, as close as possible to
"HIGH SPEED STOP" and loosen, but do not remove remote cable
stop screw.
B.
Move remote cable stop upward
on
remote control cable so it holds
control lever against "HIGH SPEED STOP" and tighten remote
cable stop screw securely.
The engine controls should now be adjusted correctly.
Ifadditional adjustments are needed, makethem at the equipmentcontrol
(see equipment manufacturer's instructions).
ADJUSTMENTS
DO NOT MAKE UNNECESSARY ADJUSTMENTS. FACTORY SETTINGS
ARE SATISFACTORY FOR MOST CONDITIONS. IF ADJUSTMENTS ARE
NEEDED, PROCEED
AS
FOLLOWS:
CD
REMOTE CONTROL (see Figure 8 or 9):
For satisfactory engine performance, engine and equipment control must
be adjusted properly. To check engine control adjustments, proceed as
follows:
Set equipment control at "FAST" or "HIGH SPEED" and keep it
in
this
position.
In
this position, engine control lever should touch "HIGH SPEED
STOP". If it does, the controls are adjusted correctly and no further
adjustment should be necessary.
NOTE:
If
engine control lever does not touch "HIGH SPEED STOP",
proceed to CONTROL A
in
Figure 8 or CONTROL B
in
Figure
9.
CONTROL A (see Figure 8):
A.
Loosen clamp screw so remote control cable can be moved
in
cable
clamp (do not removecable clampfrom control bracketordisconnect
remote control cable from engine control lever).
B.
Move engine control lever so it
is
touching "HIGH SPEED STOP"
and hold it
in
this position.
C. Tighten clamp screw securely so cable clamp will hold remote
control cable
in
place when equipment control
is
used.
The engine controls should now be adjusted correctly.
If additional adjustments are needed, make them at the equipment control
(see equipment manufacturer's instructions).
COVER
''-=:;>,".l--WING NUT
COVER
FOAM FILTER
PAPER
dIiI:-i._--
FILTER
:r>;;;;::;~-BASE
AIR CLEANER "C"
FOAM FILTER (IF SO
EQUIPPED)
FOAM FILTER
~WINGNUT
COVER
tm~~-
PAPER FILTER
IMPORTANT:
In
order for engine to operate smoothly and
efficiently, it is important for scoop to be
in
proper position for
season.
• WINTER (Below 32°F;
O°C):
Scoop should be pointed directly
at muffler.
• SUMMER (Above 32°F;
OOC):
Scoop should be pointed to-
wards blower housing (approximately 45° clockwise from
"winter position").
NOTE:
In
Air Cleaner "C" application, make sure to position
scoop correctly:
~~~LBASE
AIR CLEANER
"B"
/
BASE PAPER FILTER
AIR CLEANER
"A"
Page 4
181-630-14
