181-732-14 Four-Cycle L-Head Engine • Vertical Crankshaft • Air-Cooled Page 9
A. Checking and Changing Oil
To avoid engine damage, it is important to:
• Check oil level before each use and every 5
operating hours when engine is warm. See "A.
Checking Oil Level" instructions on page 4.
• Change oil after first 2 operating hours and every 50
operating hours thereafter; more often if operated in
extremely dusty or dirty conditions. Engine should
still be warm but not hot from recent use.
1. Be sure you find the correct drain plug location, if
present. (See equipment manufacturer’s instructions).
See Figure 13.
2. Disconnect spark plug wire and keep it away from
spark plug. See "G. Avoid Accidental Starts" instruc-
tions on page 2.
3. Be sure the gas cap is on and is tightened securely.
4. Clean area around oil drain plug. See Figure 13.
5. Place approved recyclable oil container under oil drain
plug. (See equipment manufacturer’s instructions).
NOTE
Used oil must be disposed of at a proper
collection center.
6. Remove oil drain plug and drain oil into
an approved container. See Figure 13.
7. Install oil drain plug and tighten securely.
8. Fill with recommended oil. See "III. Oil and Fuel Speci-
fications" instructions on page 3. See "Table 1. Recom-
mended Engine Oil" instructions on page 3. See Figure
14.
9. Wipe away any spilled oil.
10. Carefully disconnect spark plug wire from grounding
post, if provided.
11. Carefully re-connect spark plug wire to spark plug.
NOTES
The oil filter if so equipped, should be changed every 100
operating hours or at least once a year.
The filter should be changed more often if the engine is
operated in extremely dust or dirty conditions.
Changing the oil filter requires that additional oil be added to
fill the filter.

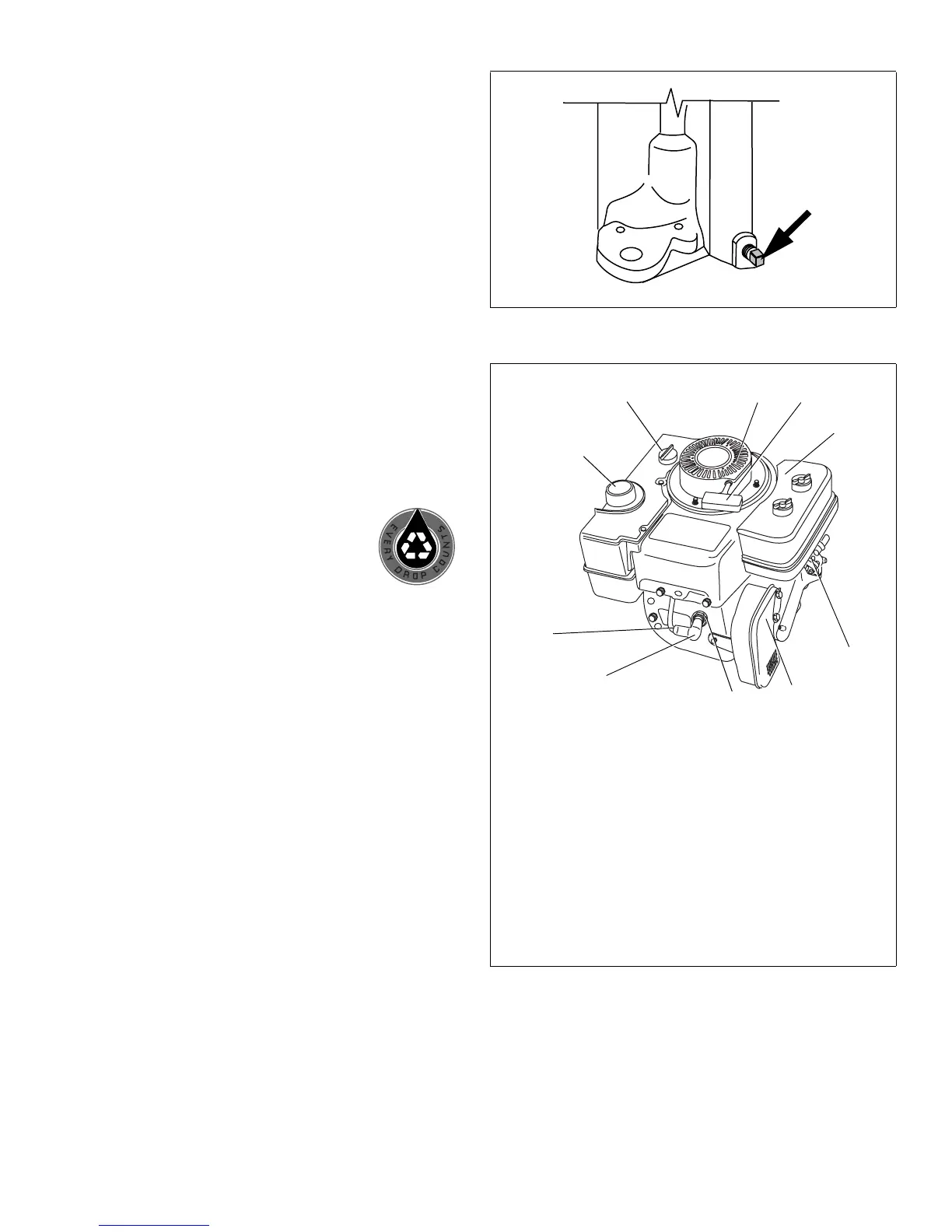

Figure 13. Oil Drain Plug Location
Figure 14. Engine Assembly with Oil Fill Dipstick
1
4
5
6
9
2
3
10
8
7
1. Spark Plug
2. Spark Plug Cap
3. Spark Plug Wire
4. Fuel Fill Cap
5. Oil Fill Plug and Dipstick
6. Air Intake Screen
7. Recoil Starter Handle
8. Air Filter
9. Carburetor
10. Muffler
