MAINTENANCE INSTRUCTIONS TEEJET TECHNOLOGIES
98-01580-EN-R0_A4LT-E-ChemSaver-MaintenanceInstructions-TB.docx

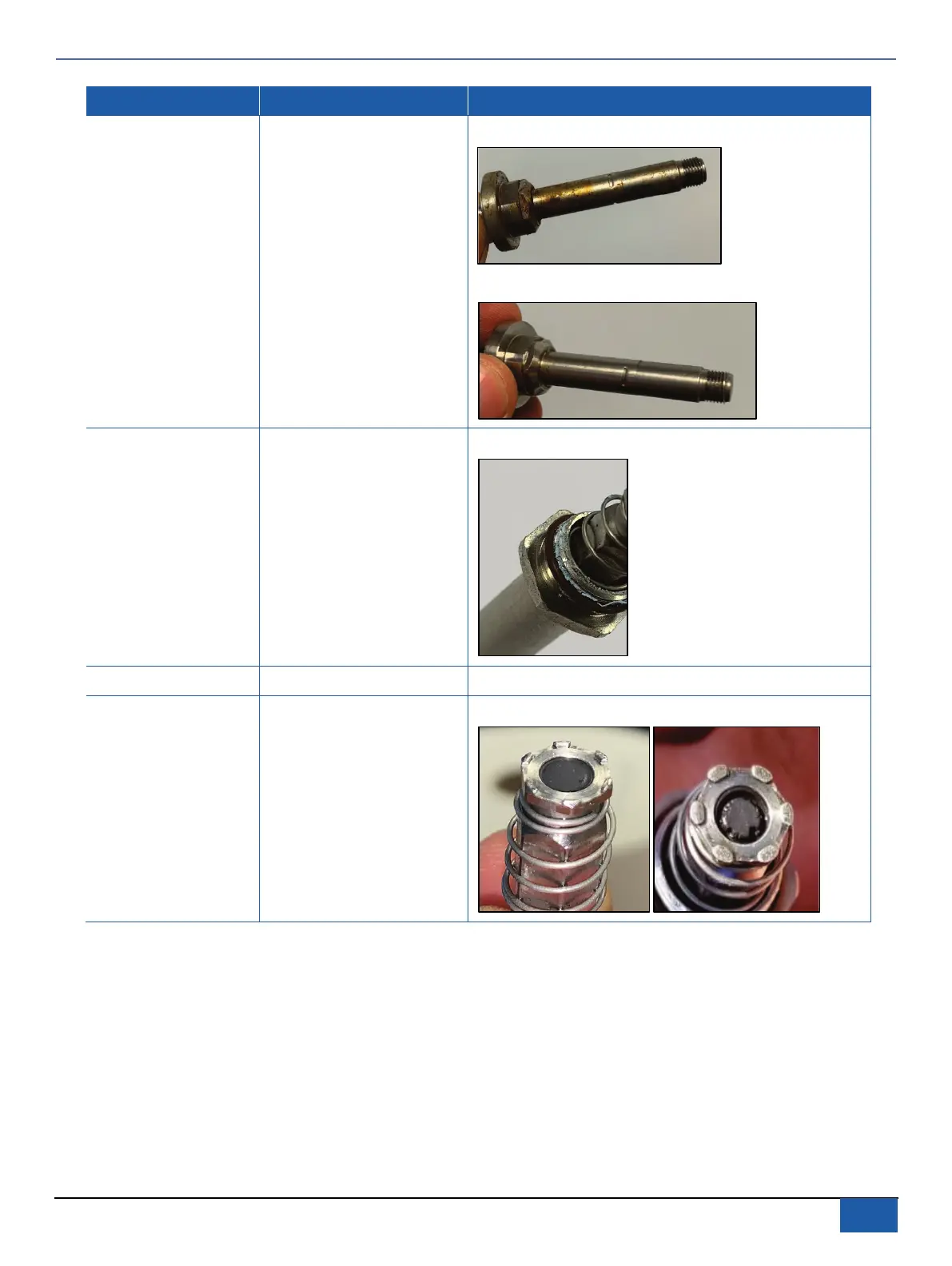

Inspection Area Procedure Example
Tube Sub-Assembly (3)
Clean and inspect the Tube Sub-
Assembly (4).
Replace the tube assembly if the
rubber seal is worn or damaged.
Before
After
Brown O-Ring (6)
Observe that the O-ring is well well-
maintained. In case of degradation,
replace it.
Proper O-Ring
Stainless Steel Spring (5) Inspect. Replace if necessary.
Plunger (4) gasket
If a severe degradation, replace the
complete kit (Reference AB115880-
2-KIT).
Gasket OK Gasket Not OK
