STEP
Attach Large & Small Assemblies
• Align and slide the Small Bar Assembly (labeled 4, 5, 6) into the Large
Bar Assembly (labeled 1, 2, 3) (Figures 7 & 8).
• The width of the EZ-Up Rack may be adjusted by sliding the Small
and Large Assemblies in or out (Figure 9), to fit doorways between
28 in - 36 in (71 - 91.4 cm) wide. For purpose of assembly, slide to
the narrowest width.
• SECURELY TIGHTEN ALL BOLTS and NUTS (3 on each side) using a
screwdriver and wrench.

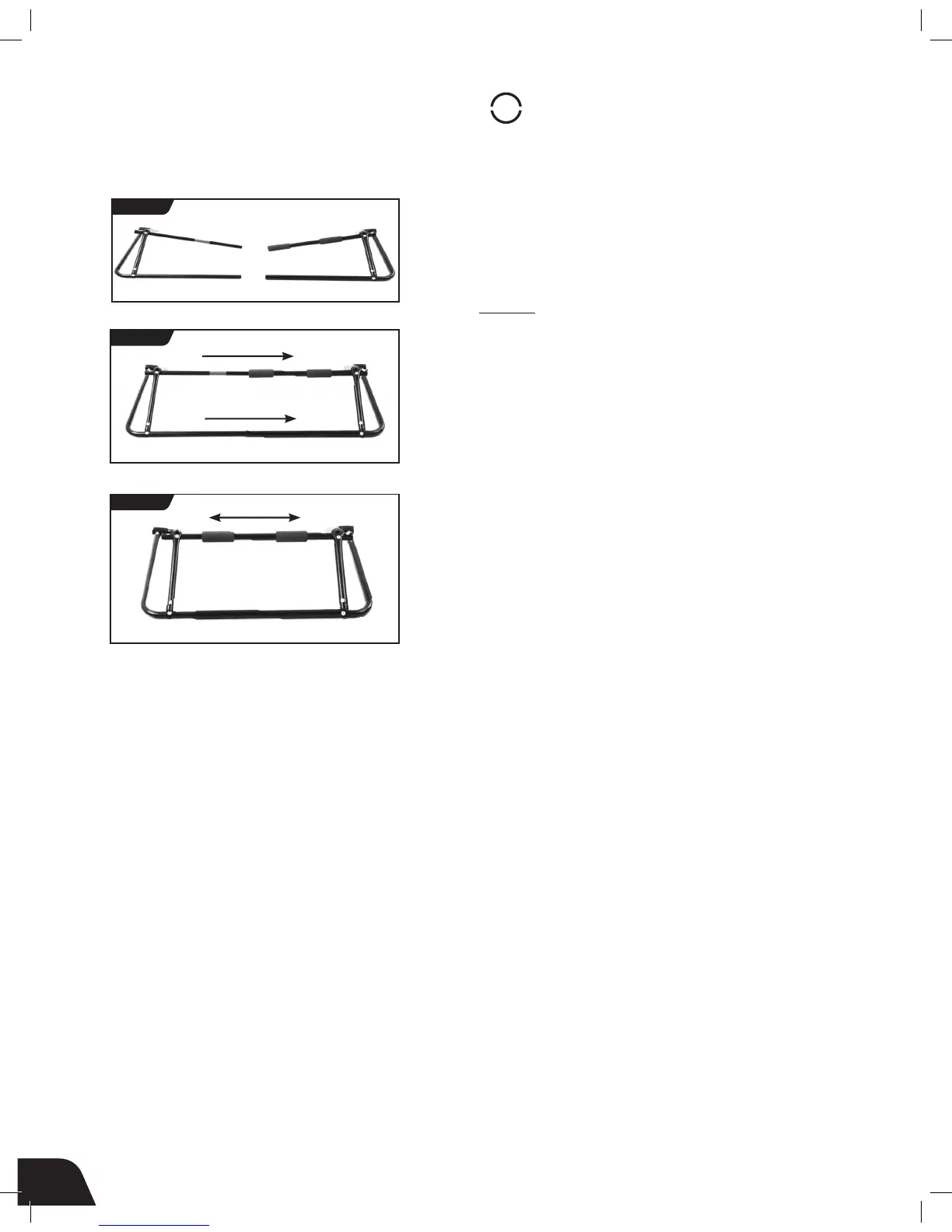

FIGURE 7
FIGURE 8
FIGURE 9
