Unpack and Prepare Your Workspace
• If possible, assemble the equipment at or near the space in which you intend to use it to avoid moving it later.
• Unpack all parts and support materials. Set aside packing materials and clear your work area.
• Locate the Hardware Kits packaged with the manuals. They are labeled to correspond with the assembly process.
LET’S GET STARTED

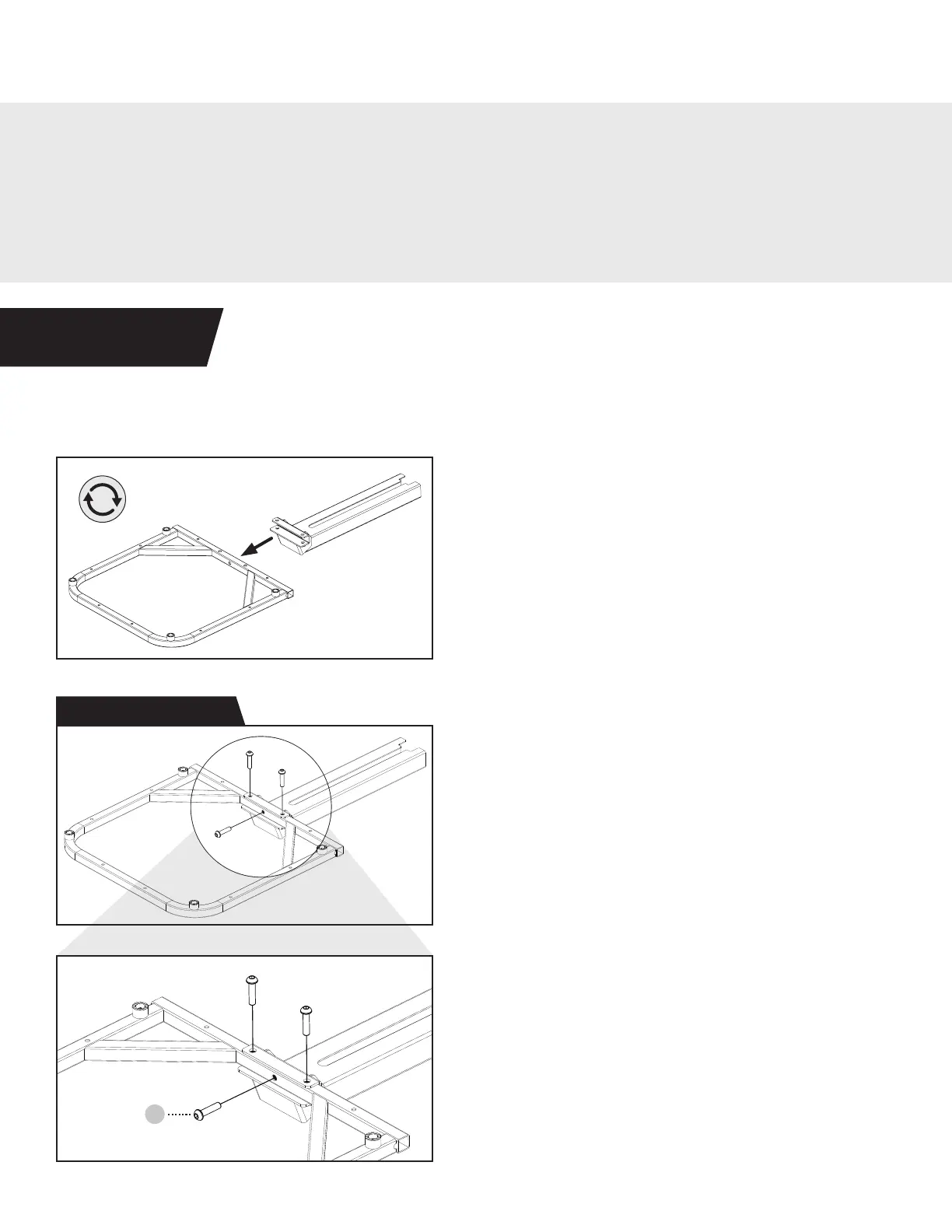

Figure 1: For easier access to the screw holes,
flip the Platform Adjustment Bar so the numbers
are facing down and Platform Support Frame so
the rubber feet are facing up.
Proceed to align the Platform Adjustment Bar
to the Platform Support Frame.
NOTE: Always hand tighten all hardware in each step before fully tightening with the wrench or screwdriver.
The Front, Back, Right and Left of the equipment is labeled in the drawing on Page 4.
PLATFORM SUPPORT ASSEMBLY
STEP 1
Figure 1
Figure 2a & 2b: Use the Step 1 Hardware Kit to
attach the Platform Adjustment Bar to the Platform
Support Frame.
Hand tighten 3 × Bolts on the Platform Joint.
Proceed to fully tighten the bolts with the Allen
Wrench provided.
84
Bolt
Figure 2a
Figure 2b
Step 1 Hardware Kit
5
