FIGURE 4
SEAT ASSEMBLY
Washer (M8)
Figure 19b
Figure 19a
Figure 20
Step 9 Hardware Kit
Bolt (M8 x 20)
12

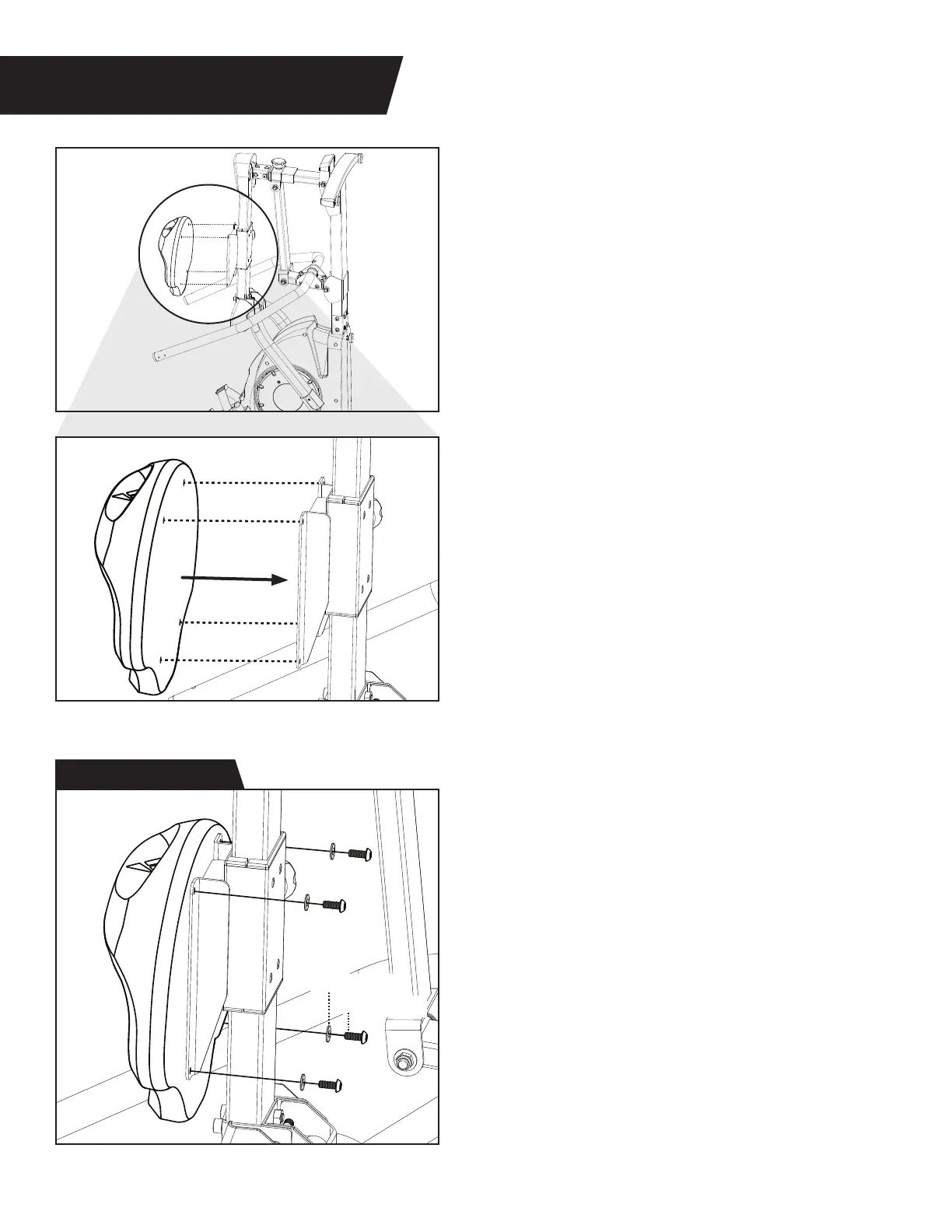

Figure 19a & 19b: While the Power10 remains
tipped upward, align the Seat with the Seat Support
on the Rear Linkage.
Figure 20: Use the Step 9 Hardware Kit to attach
the Seat to the Seat Support.
Hand tighten 4 × Bolts with 4 × Washers through the
Seat Support and into the Seat.
Proceed to fully tighten all 4 × Bolts with the 6mm
Allen Wrench.
