1830A Diagnostic Procedure
Once a channel is selected the user will select a procedure (Refer to Figure 5.3). Each step
will lead user through connection diagrams and detailed instructions to accurately
complete the selected step. Refer to figures 5.4 & 5.5 for an example of what these
screens contain.

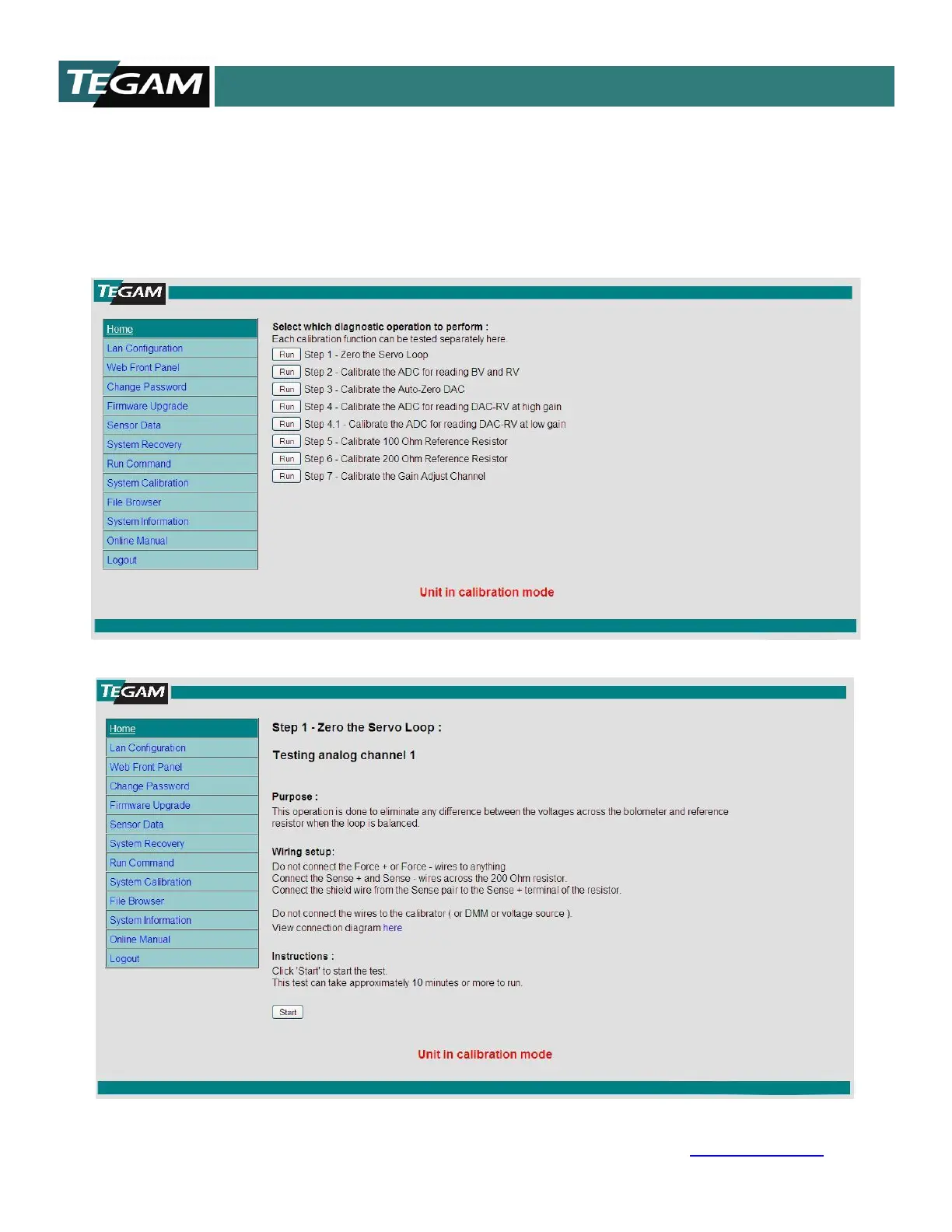

Figure 5.3 - Diagnostic Operation Selection
Figure 5.4 – Zero Servo Loop
