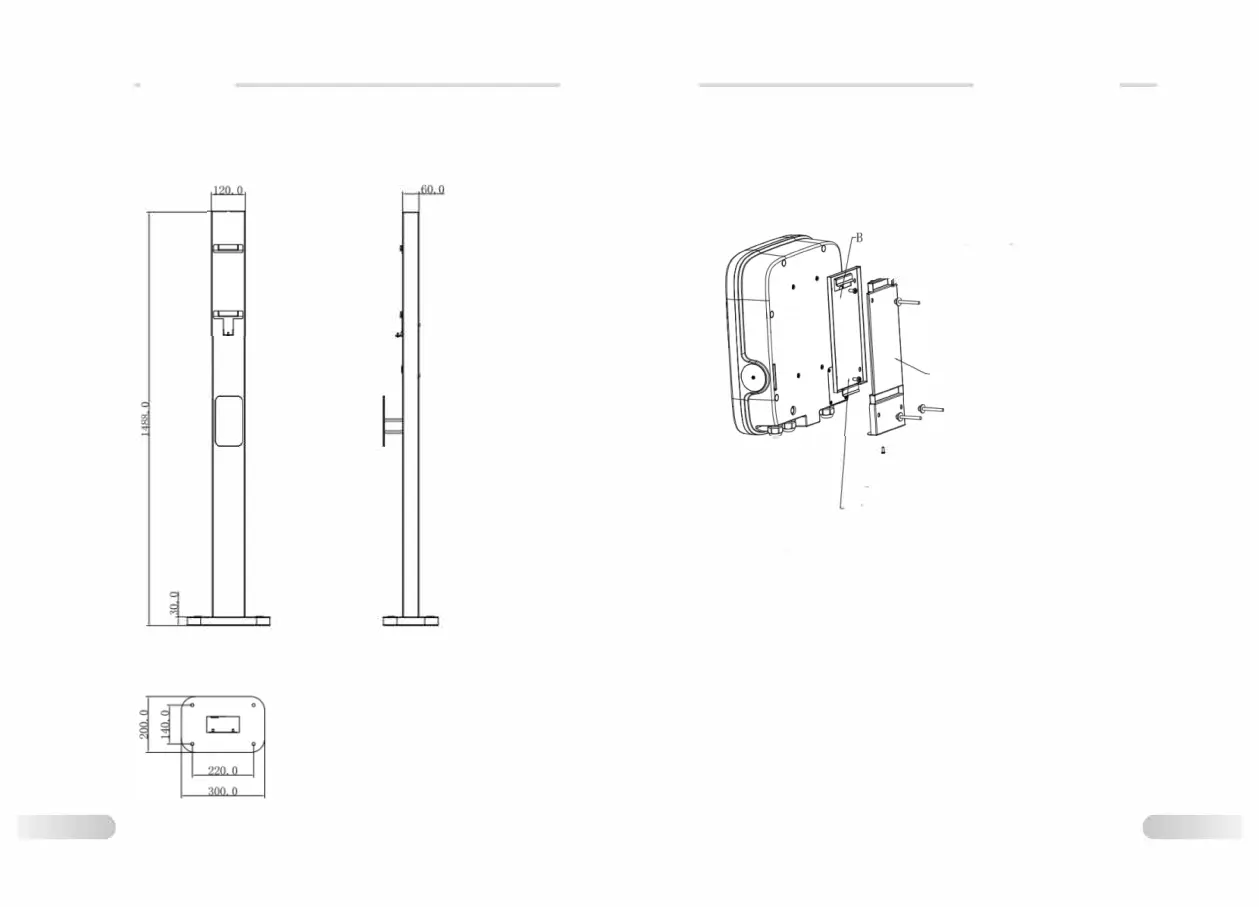

Pedestal installation dimensions
0
Warning:
Ens
ure the backplate is fitted to
a s
ound structure ideally
200mm thic
k
Wall Installation:
Technology changes life
3
. Install the backplate (A) with
the expansion screws
1.Offer up backplate to wall min 1
meter above ground mark hole position.
Drill holes in the wall.
2.Install expansion screws
.
A
4. Install the plate B to the back of the
charger
5. Secure the charger on the fitted
backplate.
Danger!
Installation must be carried out by a qualified electrician.
The electric s
hock would happen if don't install accord with
operation procedure.
The electric shock or the serious hazard would happen if
don't observe operation instruction of safety precaution.
