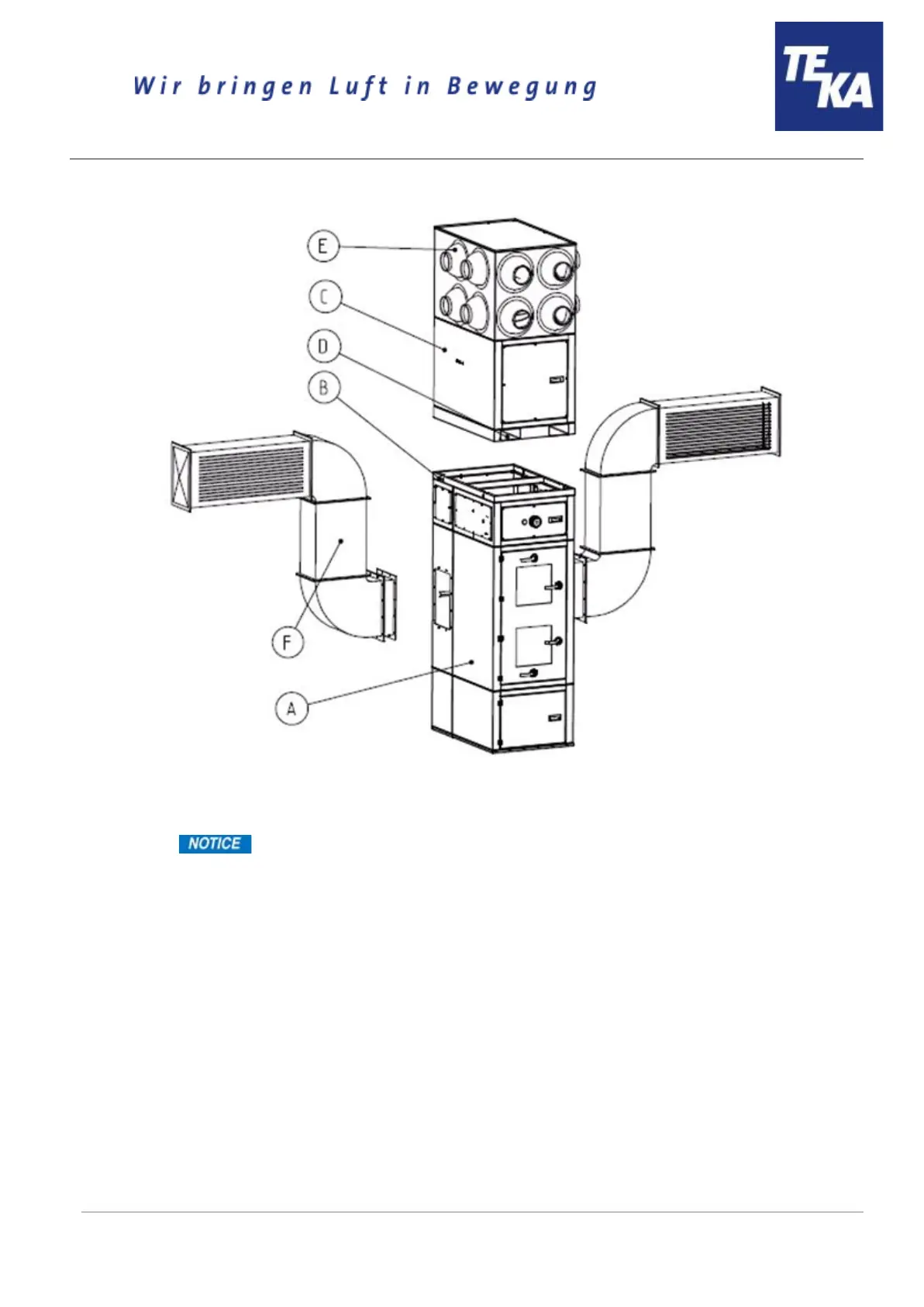

● Set up the preassembled part of the filter unit (A). Use the 4 crane eyelets of the yellow
transport frame (B). The device must be safely fixed on the ground, e.g. with the help of lag
bolts or high load anchors.
The yellow transport frame must be dismantled after installing the filter unit.
● Fix the preassembled upper part (C) of the unit onto this part with the help of the screws
included in the delivery. You can lift it with the help of the forklift skids (D) located at the
connection cover.
● Adjust the ejection nozzles (E).
● Fix the intake ducts (F) to the extraction housing with the help of the assembly material included
in the delivery. The holes of the grid must be adjusted to the front.
As an option, intake elements can be used additionally to the intake ducts. They have to be
connected to the filter housing via piping.
