Teka ECO-Cube - Drawing; Description of the System Elements

BA_ECO-Cube_190815_EN.docx 5 15.08.2019

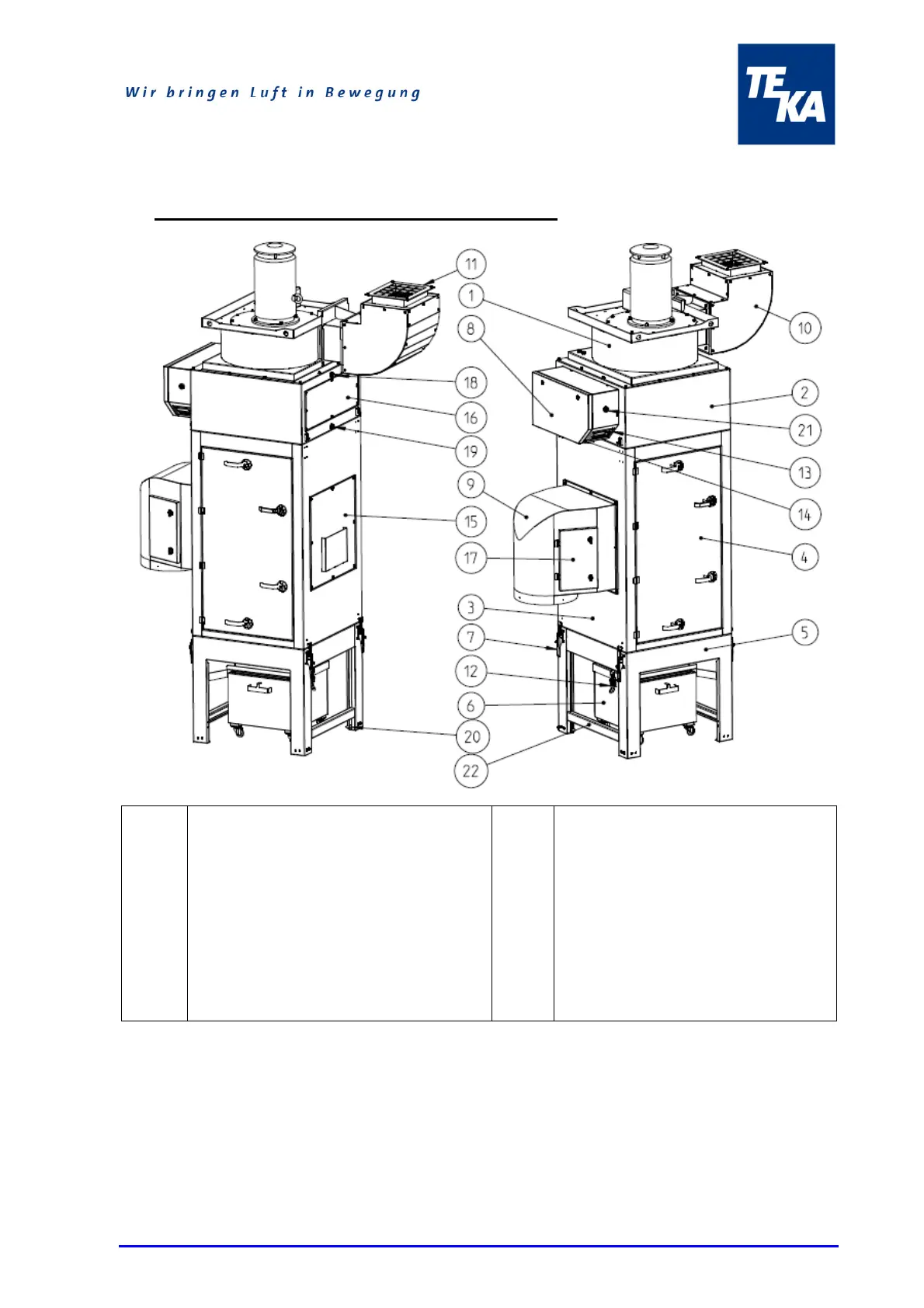

1.2 Drawing / Description of the system elements
(Z.Nr. 16291705)
Pos. 1
Pos. 2
Pos. 3
Pos. 4
Pos. 5
Pos. 6
Pos. 7
Pos. 8
Pos. 9
Pos.10
Fan
Cleaning device housing (with com-
pressed air tank inside)
Filter housing
Service door for filter cartridges
Dust collector housing
Dust collector
Toggle clamping system for housings
Control housing
Spark labyrinth with suction support
Curved silencer
Pos.11
Pos.12
Pos.13
Pos.14
Pos.15
Pos.16
Pos.17
Pos.18
Pos.19
Pos.20
Pos.21
Pos.22
Discharge orifice with grille
Toggle closure of the dust collector
Display control
Main switch
Cover plate
Service plate of cleaning device
Service door of suction support
Hose nozzle
Drain cock
Earthing bolt
Signal horn
Cross brace
