Service Manual: MSDW16012 - 8 -

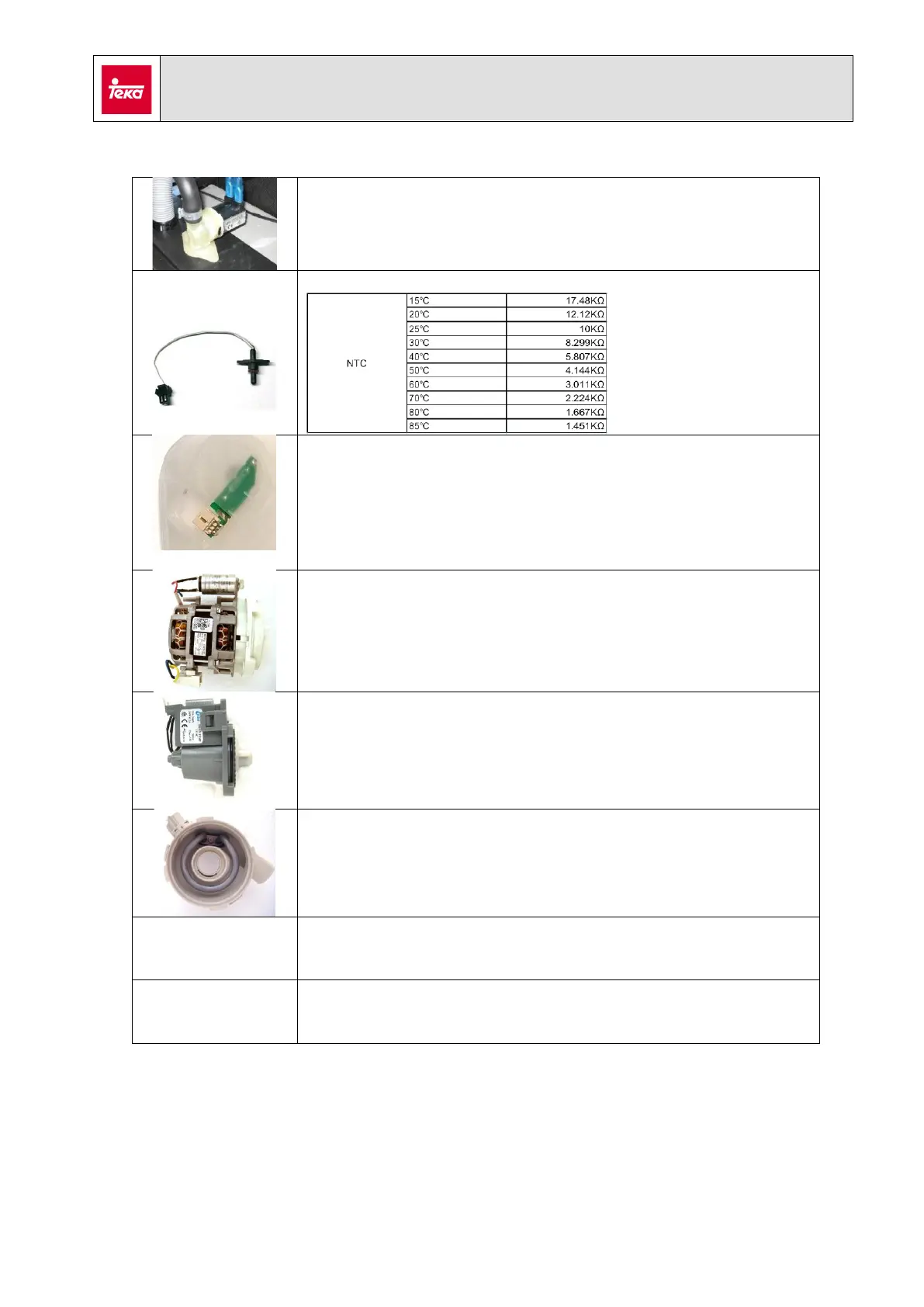

6. Main components
Inlet valve / Aquastop (depending on models)
Power supply = 220 – 240 V
Coil resistance = 4.4 – 4.8 KΩ
Flowmeter
Measure with the multimeter in diode function between the two
pins in the connector while water is coming in the dishwasher. If
the flowmeter is ok, the multimeter should beep intermittently.
Washing pump
Power supply = 220 – 240 V
Main coil resistance = 116.4 Ω (±7%)
Secondary coil resistance = 101.5 Ω (±7%)
Capacitor = 3μF
Draining pump
Power supply = 220 – 240 V
Coil resistance = 235 Ω ± 15 Ω
Heating element
Power supply = 230 V
Rated power = 1800 W
Resistance = 29.3 Ω ± 1.47 Ω
Alternate valve (Opc.(1))
Power supply = 230 V
Resistance = 5,75 K Ω
Turbidity sensor (Opc.(2))
It can be check during service test, step 1. If the display shows 99, the
sensor is faulty.
