- 7 -

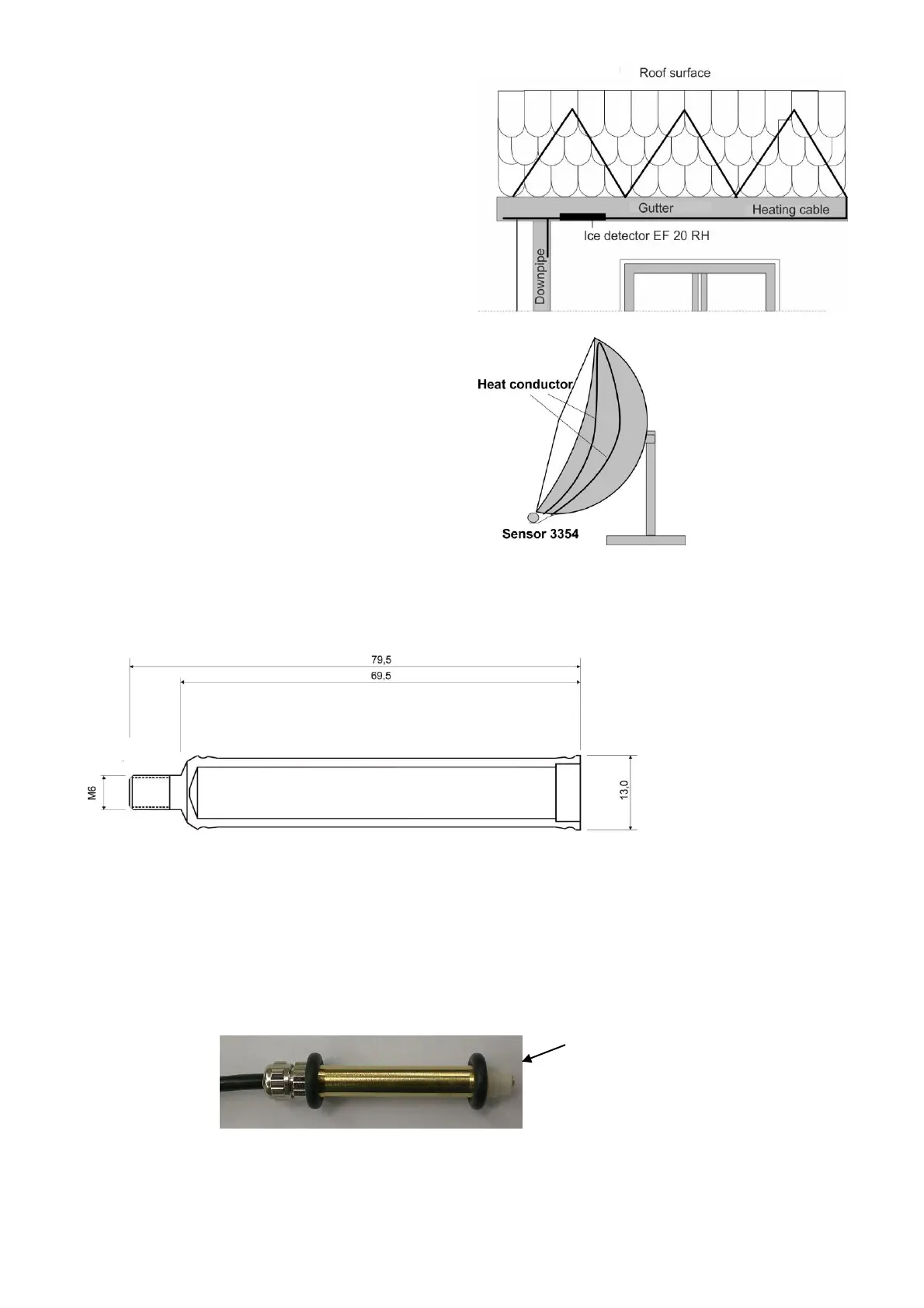

Installation location in the gutter
The sensor has to be installed below the drip edge
and close to the downpipe in such a way that melt
water drips on the sensor. The heating cables, which
are also installed in the lower part of the roof surface
in the example on the right, ensure that a sufficient
area inside and above the gutter are kept free from
snow and ice. In this way the melt water can run off.
Installation location in case of satellite
systems
The sensor is fixed to the lower edge of the satellite
dish in order to detect melt water until the dish is free
from snow and ice. The heat conductors are fixed to
the back side of the dish and switched on until the
snow or ice in the dish are completely melted.
Dimensions: Type 3354 sensor [mm]
Side view (cross section)
Technical data: Type 3354
Supply line: SL-Y11Y, 6 m, 20 m, 50 m
resistant to microbes and oil according to DIN VDE 0472/9.21 para. 8036
Degree of protection: IP 68
Temperature resistance: –30 ...+75 °C
Fasten the sensor only with the supplied
fastening material (plastic)!
