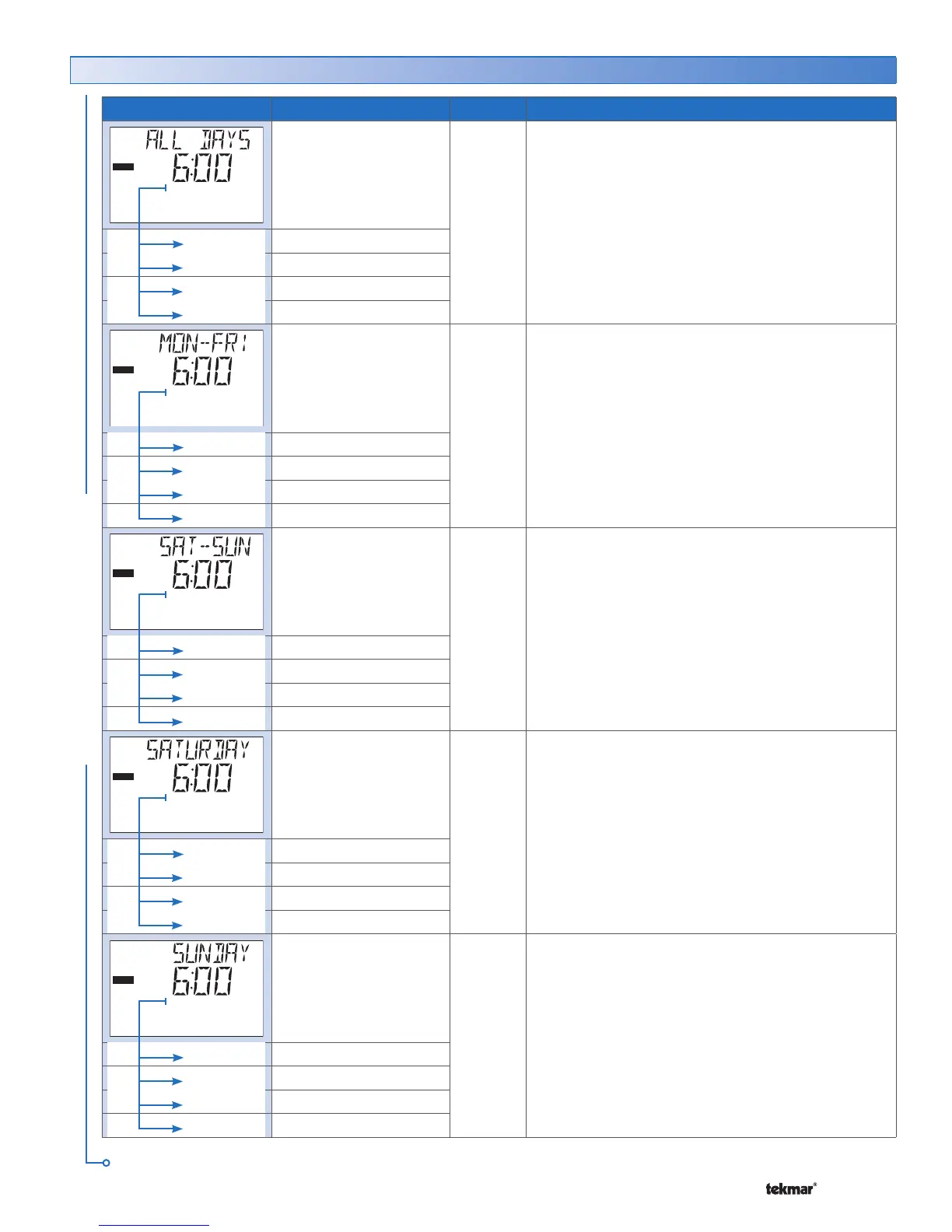

Tekmar 274 - Schedule Event Time Configuration; Setting Schedule Event Times (All Days, Weekdays, Weekends)

37 of 44 © 2012 274_D - 11/12
Item Field Range Access Description
SCHD
AM
Wake UnOccSleep
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
ALL DAYS OF THE WEEK SECTION K
Select the times for the scheduled events.
Note: This item is only available when the Heat
Schedule is set to CTRL or MST1 to MST4 AND the
Setback DIP is set to On AND the Schedule Type is
set to 24 hr.
Wake
Default = 6:00 AM
UnOccupied
Default = 8:00 AM
Occupied
Default = 6:00 PM
Sleep
Default = 10:00 PM
SCHD
AM
Wake UnOccSleep
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
MONDAY THROUGH FRIDAY SECTION K
Select the times for the scheduled events.
Note: This item is only available when the Heat
Schedule is set to CTRL or MST1 to MST4 AND the
Setback DIP is set to On AND the Schedule Type is
set to 5-2 or 5-11.
Wake
Default = 6:00 AM
UnOccupied
Default = 8:00 AM
Occupied
Default = 6:00 PM
Sleep
Default = 10:00 PM
SCHD
AM
Wake UnOccSleep
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
SATURDAY AND SUNDAY SECTION K
Select the times for the scheduled events.
Note: This item is only available when the Heat
Schedule is set to CTRL or MST1 to MST4 AND the
Setback DIP is set to On AND the Schedule Type is
set to 5-2.
Wake
Default = 6:00 AM
UnOccupied
Default = 8:00 AM
Occupied
Default = 6:00 PM
Sleep
Default = 10:00 PM
SCHD
AM
Wake UnOccSleep
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
SATURDAY SECTION K
Select the times for the scheduled events.
Note: This item is only available when the Heat
Schedule is set to CTRL or MST1 to MST4 AND the
Setback DIP is set to On AND the Schedule Type is
set to 5-11 or 7 Day.
Wake
Default = 6:00 AM
UnOccupied
Default = 8:00 AM
Occupied
Default = 6:00 PM
Sleep
Default = 10:00 PM
SCHD
AM
Wake UnOccSleep
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
SUNDAY SECTION K
Select the times for the scheduled events.
Note: This item is only available when the Heat
Schedule is set to CTRL or MST1 to MST4 AND the
Setback DIP is set to On AND the Schedule Type is
set to 5-11 or 7 Day.
Wake
Default = 6:00 AM
UnOccupied
Default = 8:00 AM
Occupied
Default = 6:00 PM
Sleep
Default = 10:00 PM
Continued on next page.
Schedule Menu (2 of 3)
SCHEDULE MENU
