Tekmar tekmarNet 4 Setpoint Control 161 Wiring Brochure

3 of 12 © 2008 W 161 - 12/08

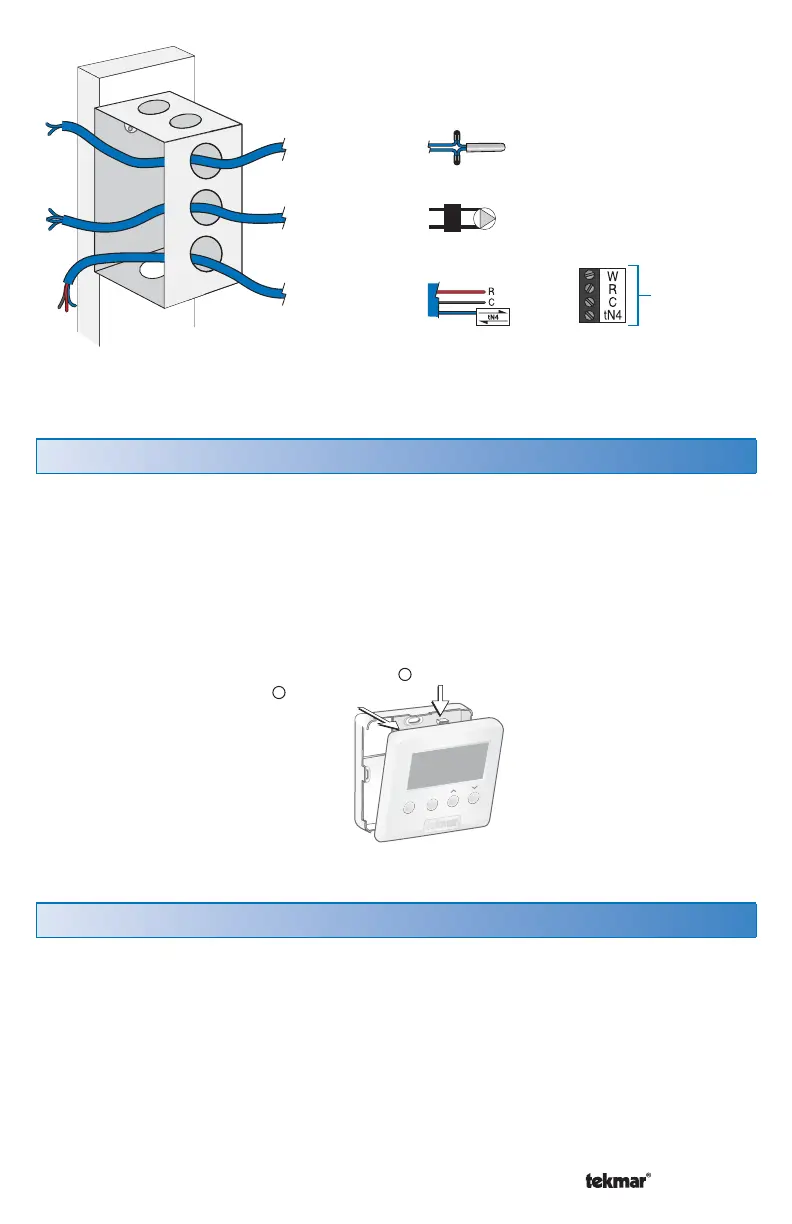

Remove the Wiring Cover
Mounting the Setpoint Control
To remove the wiring cover:
•
Place a small slot screwdriver or similar tool into the slot located on the top of the
control.
•
While pushing against the plastic tab, pull the top of the front cover so that it pivots
around the bottom edge of the control’s base.
If a single gang switch box is used, an Adaptor Plate 007 is required to mount the
control to the box.
•
Fasten the base of the control to the adaptor plate.
•
Feed the wiring through the openings in the back of the adaptor plate and control.
•
Use the upper and lower screw holes to fasten the adaptor plate to the box.
Sensor
2 Cond. / 18 AWG
2 Cond. / 18 AWG
3 Cond. / 18 AWG
Note: When multiple wires
run to the same equipment
location, wiring conductors
can share one wire jacket.
R
C
tN4
Zone Manager
Pump
or
Valve
M
en
u
Item
Remove cover
Push tab
1
2
