Wiring Symbols
Electrical Drawings
Dry contact switch. Operates a device.
tekmarNet
®
4
Do not apply power to these terminals. Serious control damage
will result.
The electrical drawing examples on the following pages show the 161 in common
applications. Choose the drawing that most accurately depicts the components in
your system and use that drawing as a guide to aid in wiring your system.
These are only concept drawings, not engineered drawings. They are not intended
to describe a complete system nor any particular system. It is up to the system
designer to determine the necessary components for and configuration of the
particular system being designed including additional equipment isolation relays
(for loads greater than the controls specified output ratings) and any safety devices
which in the judgement of the designer are appropriate in order to properly size,
configure and design that system and to ensure compliance with building and safety
code requirements.

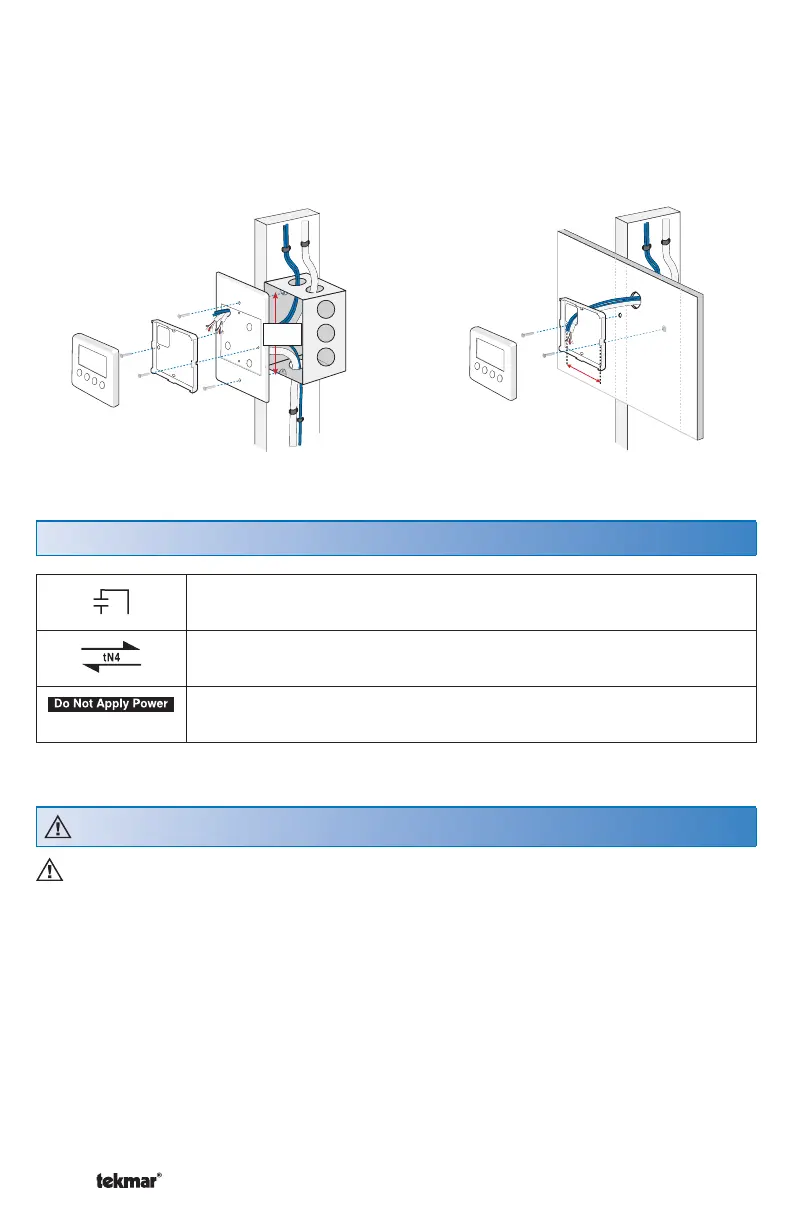

Stud
Switch
Box
Control
Base
007 Adaptor
Plate
Control
3
1
/4”
(83 mm)
Stud
2
3
/8”
(60 mm)
screwhole
2
3
/8”
(60 mm)
screwhole
Control
Control
Base
Wall
Mounted on switch box Mounted on wallboard
If a switch box was not used, mount the control directly to the wall.
•
Feed the wiring through the openings in the back of the control.
•
Use screws in the screw holes to fasten the control to the wall. At least one of the
screws should enter a wall stud or similar rigid material.
