Tekmar tekmarNet 4 Setpoint Control 161 Wiring Brochure

Tekmar tekmarNet 4 Setpoint Control 161
12 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Page #5 background imageLoading...
Page #5 background image
5 of 12 © 2008 W 161 - 12/08
Description:
Setpoint Control used with tN4 System Zone Manager.

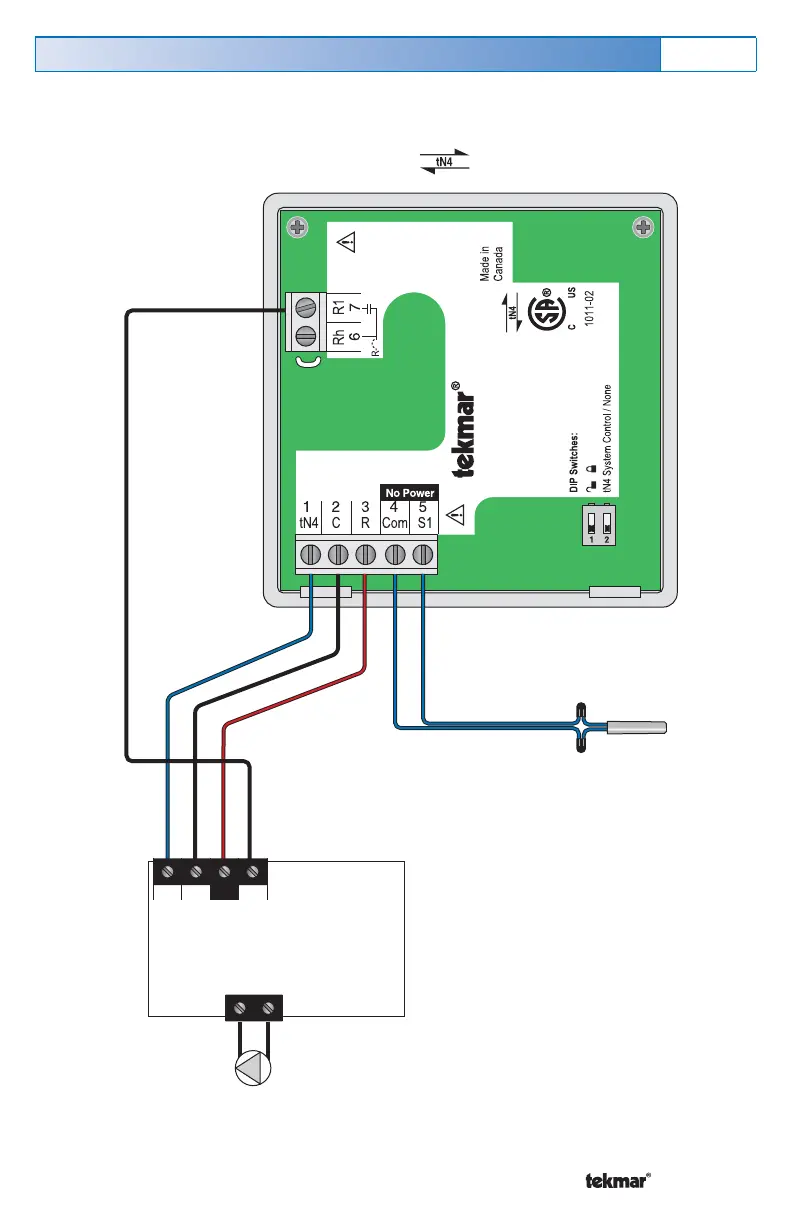

Electrical Application 161 E1
24 V ±10% 50/60 Hz 1.7 VA
24 V (ac) 2 A
Power:
Relays:
tN4 Setpoint Control 161
One Stage Heat
Feb 2006
Lot 1948
Meets Class B:
Canadian ICES
FCC Part 15
Cut jumper to
isolate relay
For product instructions see brochure
Use at least 194°F (90°C) conductors
/
161
161
Zone Manager
tN4 C R W
Heat Zone
Zone Pump
or
Valve
Sensor
