TEKNA DPG601 - Monitoring Panel

MONITORING PANEL

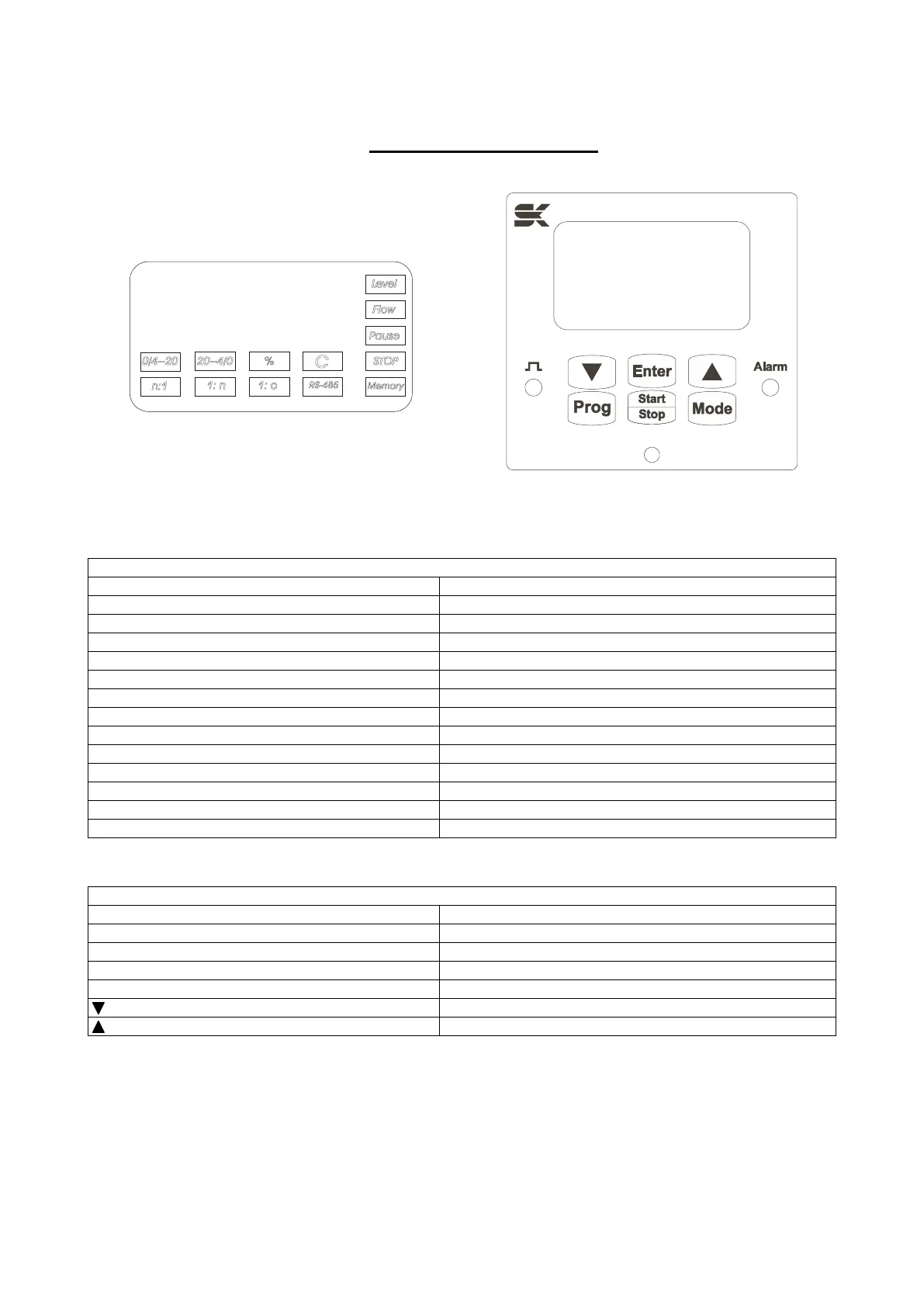

Fig 1: Display Fig 2: Pannello Comandi
DISPLAY
Icon
Functions of the pump
Level
Level alarm from a level control probe
Flow
Unavailable
Pause
Unavailable
Stop
Pump at standstill
Memory
Memory function
0/4—20
0/4—20 Mode
20—4/0
20—4/0 Mode
%
Indication of flow-rate value
C
Pump operate on is costant
n:1
n:1 Mode
1:n
1:n Mode
1:C
Unavailable
RS-485
Unavailable
KEYPAD
key
Functions of the pump
Prog
Programming
Start/Stop
Pump ON/OFF
Enter
To view the flow-rate that has been set
Mode
Flow-rate adjustment
Cursor for changing the setting
Cursor for changing the setting
