INSTALLATION INSTRUCTIONS:
!
Do not begin assembly of VERSATURN™ Grinding Wheel if the AC power cord is
plugged into an AC power receptacle.
!
Do not begin assembly of VERSATURN™ Grinding Wheel Accessory if power switch on
the front of the lathe is switched to the “ON” position.
!
INSPECTION: Carefully inspect each individual part of the VERSATURN™ Grinding
Wheel Accessory to ensure there are no cracked, broken, or bent components needed for a
safe installation.

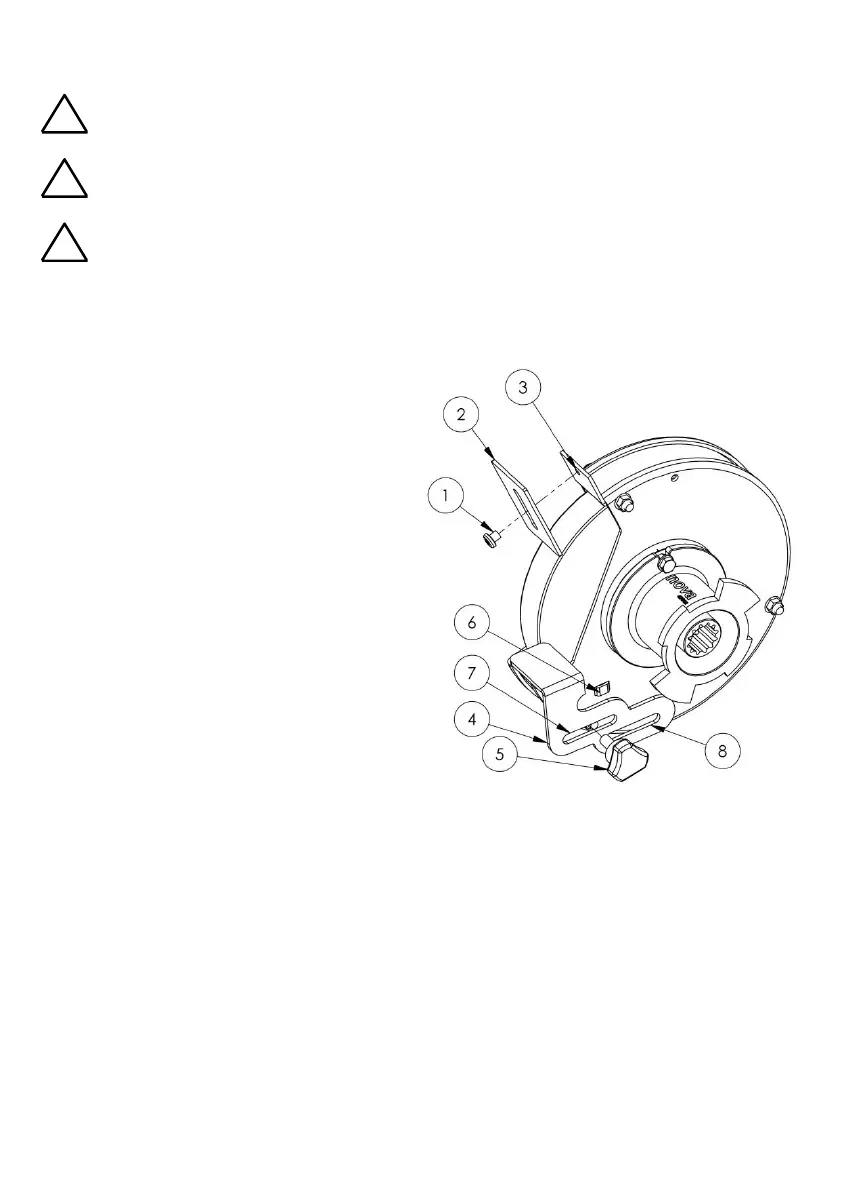

INSTALLING THE SPARK SHIELD AND TABLE
1. Align the lower slot in the Table (8) with
the protruding alignment lug (6) in the
Grinder Housing.
2. Insert the securing knob (5) through
the upper slot in the Table (7) and
screw it into the associated threaded
hole in the Grinder housing.
Position the Tool Rest so it has a 1/8"
(~3.2mm) gap between it and the
Grinding Stone then tighten the
securing knob (5) to secure the table.
(As the grinding stones wear down,
adjust the tool rest inward maintaining
the 1/8" (~3.2mm) gap).
3. To secure the Spark shield (2), place
the mounting screw through the slow in
the Spark shield (2).
4. Thread the screw (1) into the mounting
hole in the grinder guard (3).
5. Adjust the spark shield so it has
approximately 1/16” (1.5mm) clearance
off the grinding wheel.
6. Tighten the spark shield mounting
screw (1) to secure the spark shield(2)
firmly
Figure 1
