Installing onto the lathe
1. Carefully choose a location for the NOVA™ Comet II Midi Lathe and VERSATURN™
Grinding Wheel Accessory. If mounted on a workbench, ensure there is adequate room
all around the grinder for safe operation. The area must be level and clear of other power
tools and/or power tool cords that could interfere with operation of the Versaturn Grinding
Wheel.
2. If the NOVA™ Comet II Midi Lathe is installed on a stand ensure there is plenty of
unobstructed space around the grinder as not to interfere with safe operation on the tool.
3. The VERSATURN™ Grinding Wheel should be installed on the NOVA™ Comet II Midi
Lathe in a place that is away from outside elements.
4. Carefully inspect the grinding wheels to ensure they were not damaged during shipment.
Fractured grinding wheels can shatter during grinding operations and throw off pieces at
high speeds. Failure to adhere to these cautions can cause severe injury including
blindness or even death to the operator

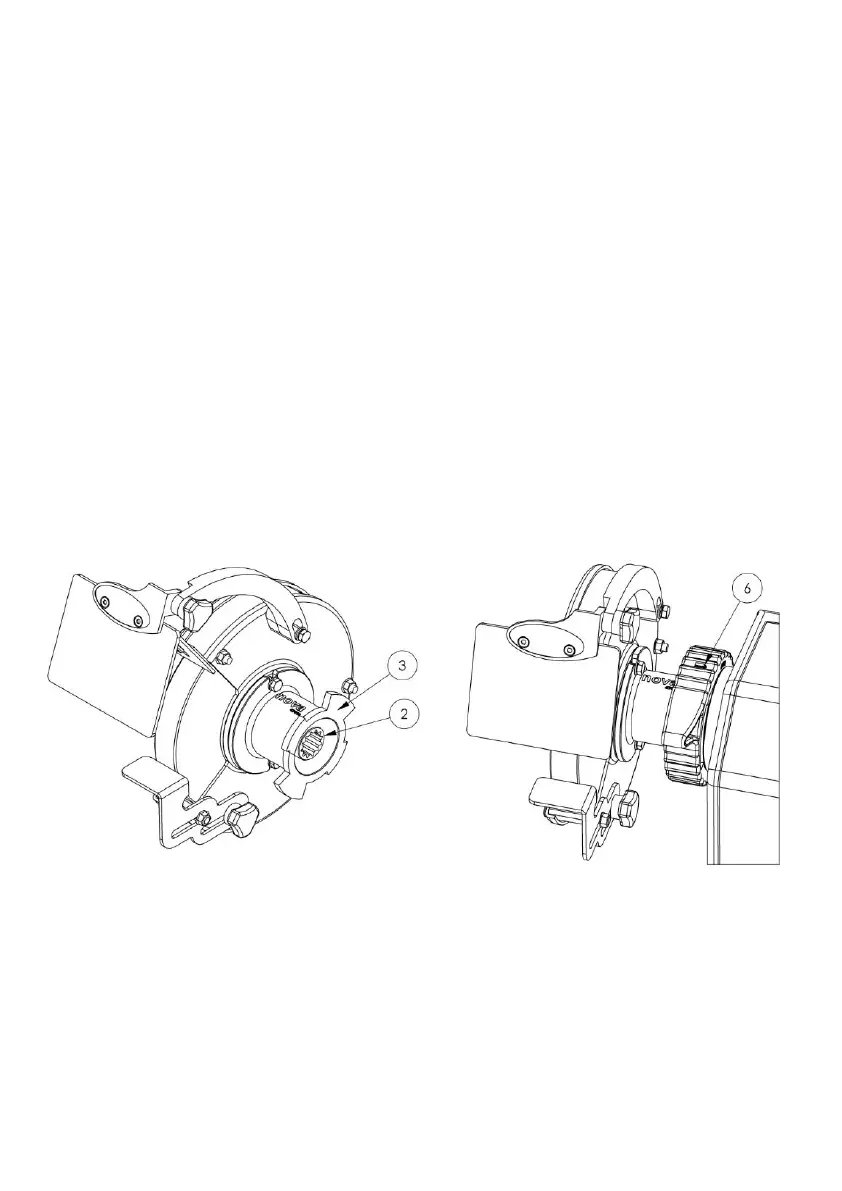

5. Rotate the VERSATURN™ Coupler Lock Ring anticlockwise until the "Unlocked" Tab (5)
is on top. Align the outboard end of the Comet II Lathe spindle (1) with the Grinding
Accessory shaft (2).
6. Press the Grinding Wheel Accessory coupler (3) up against the rubber mounting surface
inside the VERSATURN™ Coupler on the lathe (4).
