118-0417-011 12
INSTALLING THE EYE SHIELDS
The Eye Shields prevent hot sparks and other
debris from flying off the spinning grind
wheels and possibly causing injury to the
eyes of the operator. The eye shields can be
mounted in different positions depending on
the operator. See Figure 3 (page 14).
1. Attach the Eye Shield screen (1, Error! Reference source not found.) to the Eye
Shield Mounting Bracket (3, Error! Reference source not found.) using the
Fasteners (2 & 4, Error! Reference source not found.).
2. Attach the Eye Shield and Mounting Bracket to the Grinder guard using the long
Screw (9, Error! Reference source not found.).
3. Adjust the Eye Shield by loosening the adjustment Screw Knob and Screw (6 & 9,
Error! Reference source not found.) and moving the shield to the desired position.
Re-tighten the adjustment Screw Knobs and Screw (6 & 9, Error! Reference source
not found.) to lock the Shield in place.

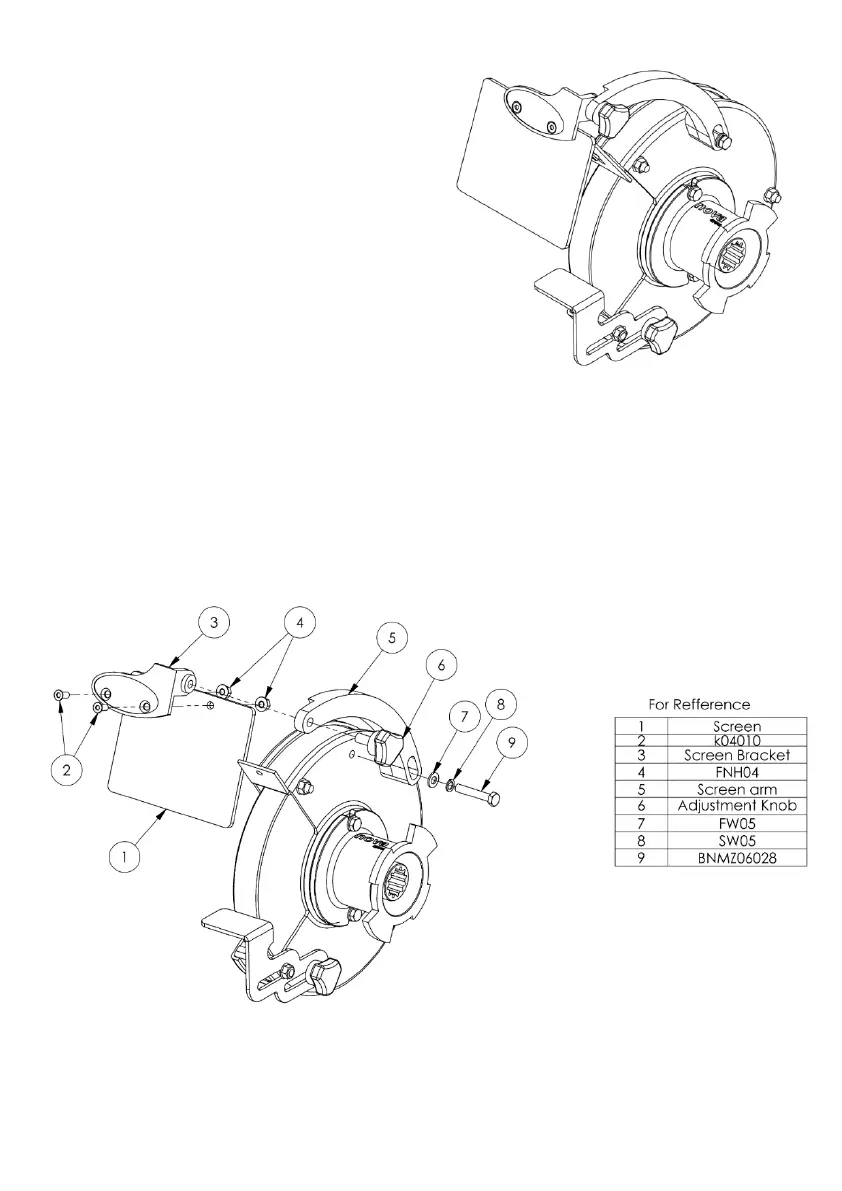

Figure 3
