14 Original user manual

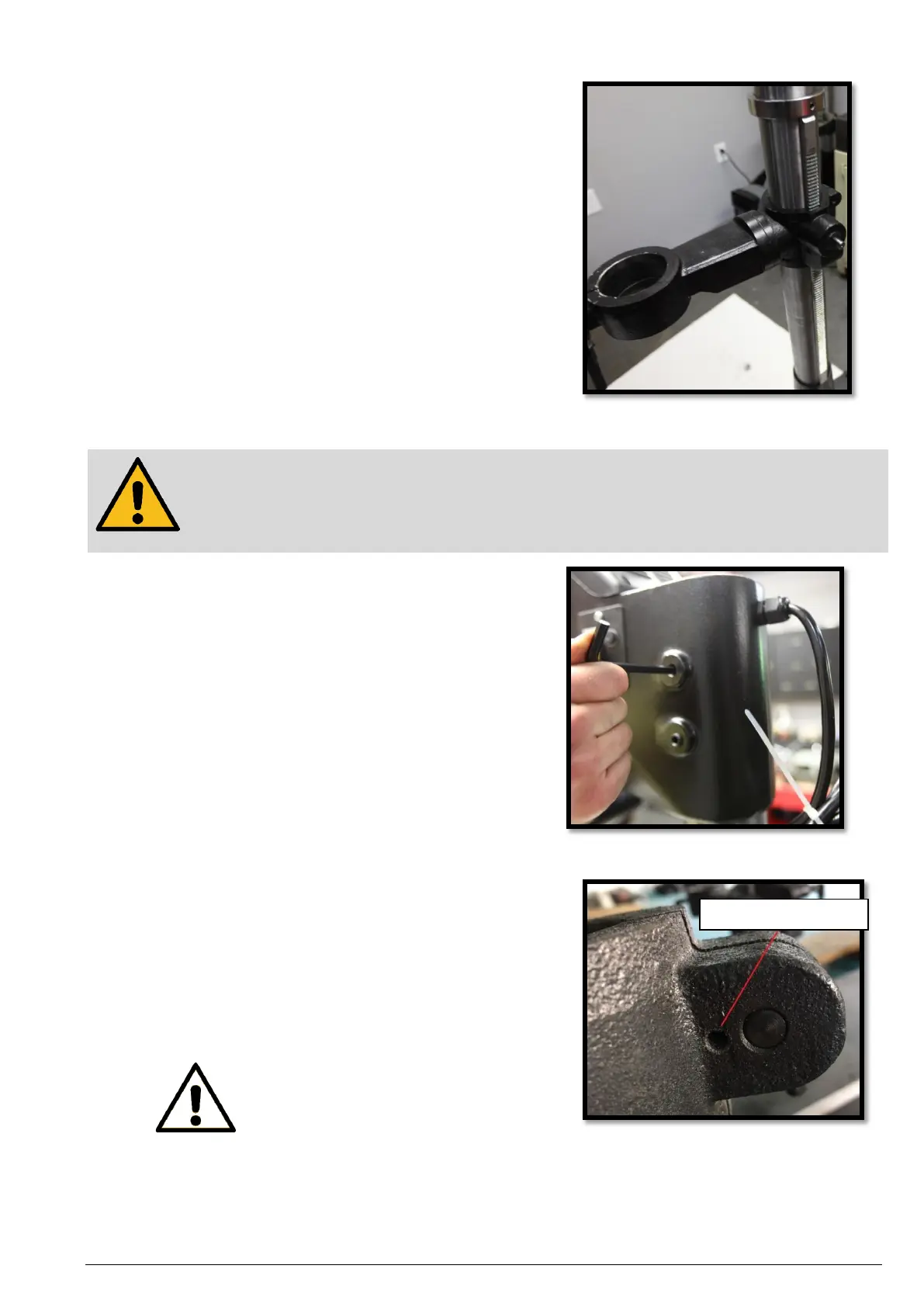

7. Slide the table arm with the mounted rack from above onto
the column and insert the bottom of the rack into the
mating groove in the column base.
8. Slide the top ring from above over the rack ensuring that
the groove on the ring that serves as the guide for the rack
is facing down. Tighten the set screw.
Mounting the headstock
Attention!
When lifting the headstock, be sure to use appropriate lifting techniques to avoid injury or damage
to the machine. Plan the method of attaching the headstock to the column before lifting. Only lift
the headstock by the casting to avoid damaging more fragile components. Applying lubricant to
the column will ease the installation.
9. Slide the headstock down over the column. Make sure
that the sides of the headstock are parallel to the base.
Tighten the set screws.
Final assembly steps
10. Attach the table vertical adjustment lever to the lifting
mechanism.
11. Lock the table arm clamping lever (clamping lever on the
rear of the column) and insert the table into the table arm.
12. Loosen the safety screw of the table to allow proper fixation
of the table to stop rotation.
13. Install the three quill driving handles.
NOTE:
Do not overtighten the handles.
