ASSEMBLY
Assemblyiseasyand
requiresnotools.
●

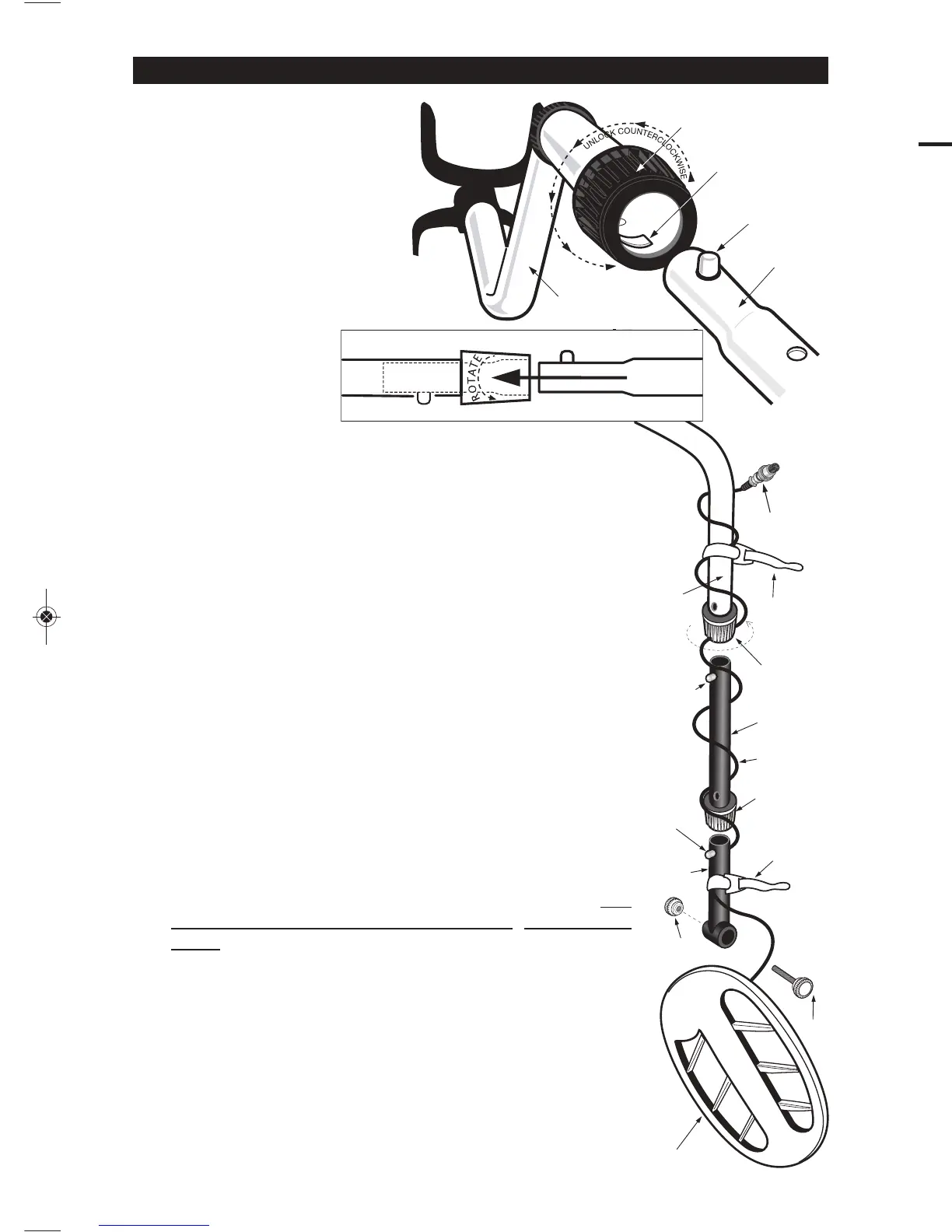

1 Position S-Rod upright.
●
2 Rotate the
LOCKING COLLAR
fully in the
counterclockwise
direction.
●
3 Insert your finger
inside the tube and
make sure the INTERNAL CAM LOCK is flush with the
inside of the tube.
●
4
Insert the MIDDLE STEM into the S-ROD,
with the SILVER BUTTON pointed upward
●
5 Rotate the MIDDLE STEM until the SILVER BUTTON
snaps into the hole.
●
6 Twist the LOCKING COLLAR fully in the clockwise direction
until it locks.
●
7 Repeat this process on the LOWER STEM.
●
8 Using the BOLT and KNURLED KNOB, attach the
SEARCHCOIL to the LOWER STEM.
●
9
Adjust the LOWER STEM to a length that lets you maintain a
comfortable upright posture, with your arm relaxed at your side,
and the SEARCHCOIL parallel to the ground in front of you.
●
10
Wind the CABLE securely around the STEMS.
●
11
Connect CABLE PLUG to housing.
Do not twist the Cable or Plug. Turn Locking Ring only. Use
minimal finger pressure to start the threads. Do not cross-
thread. When the Locking Ring is fully engaged over the
threaded connector, give it a firm turn to make sure that it is
very tight. When the Locking Ring is fully engaged over the
threaded connector, it may not cover all of the threads.
●
12
Tighten both LOCKING COLLARS.
S-ROD
LOCKING
COLLAR
INTERNAL
CAM LOCK
SILVE R BUTTON
MIDDLE
STEM
S-ROD
MIDDLE STEM
●
2
●
3
●
4
*
Note: Very tall users can purchase the optional Extended
Lower Stem (TUBE5X), for extended reach.
Caution:
Forcing in MIDDLE STEM with CAM
LOCK raised may form a burr on
cam lock. If this happens, remove
burr with knife to allow insertion.
LOCKING
COLLAR
LOCKING
COLLAR
S-ROD
VELCRO
STRAP
VELCRO
STRAP
KNURLED
KNOB
BOLT
SEARCHCOIL
LOWER
STEM
SILVER
BUTTON
SILVER
BUTTON
MIDDLE
STEM
CABLE
PLUG
●
4
●
5
Relic-Hunting and Coin-Shooting
with the Optional 5” DD Searchcoil
While the G
2+
is a high performance, specialized relic hunting metal detector, it is
also a good multi-purpose detector. With the purchase of a 5” DD searchcoil, you
can bring more precision to your coin-shooting and gold prospecting searches.
The standard 11” elliptical
G
2+
searchcoil is engineered for target separation and
a wide sweep. This searchoil is ideal for searching field stubble and forest
debris often associated with relic hunting sites.
If you want a smaller sweep area, the 5” DD should be considered.
Advantages of the 5” DD searchcoil over the standard 11” searchcoil are:
1. More separation between adjacent buried targets.
Better at extremely trashy sites.
2. More sensitivity to the tiniest targets and gold pieces.
3. Fits into tight spaces.
For information about
the 5” DD searchcoil
(Part#5COIL-TEK,
MSRP=$159.99),
Please call
800-413-4131.
●
13
Secure cable with velcro straps as shown.
