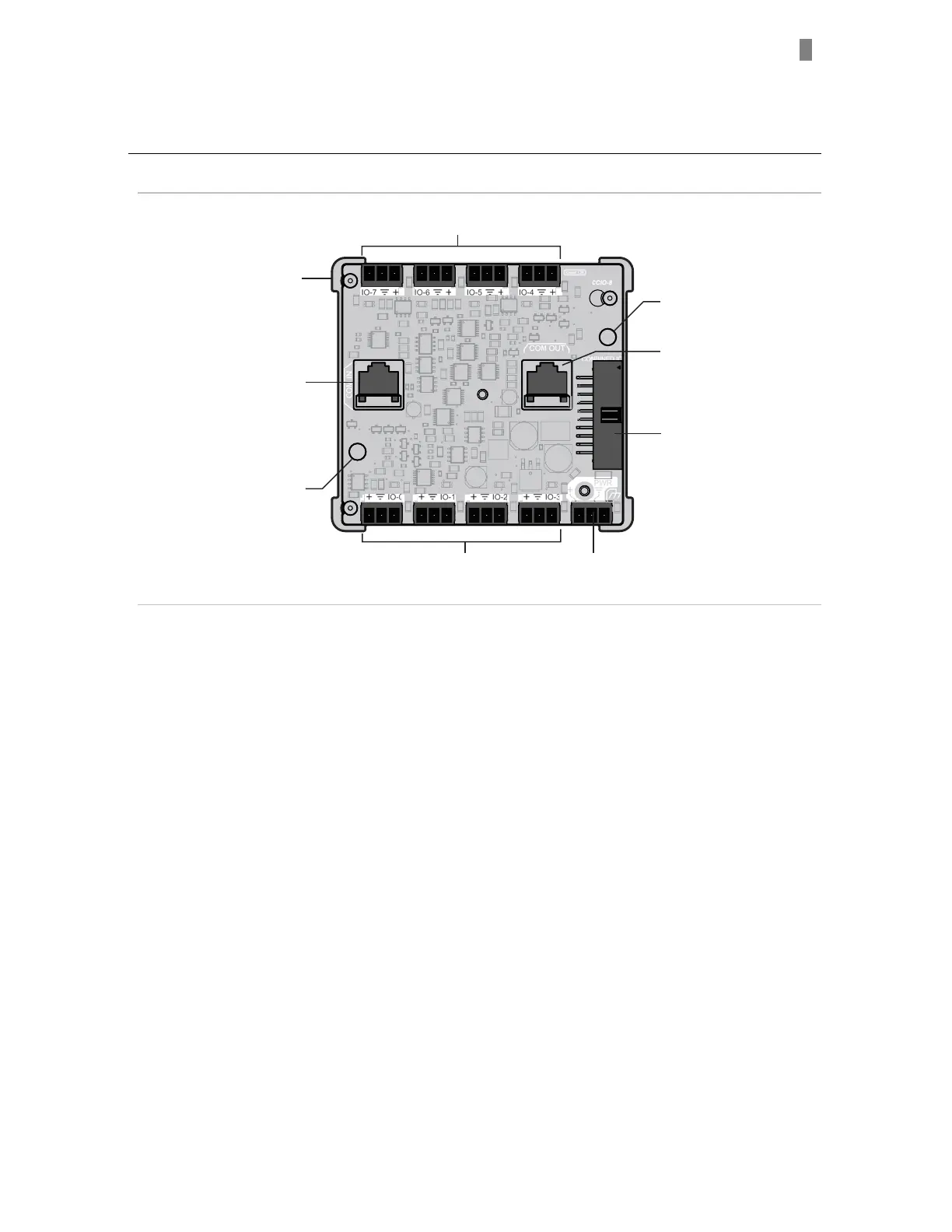

Parts of a CCIO-8 (I/O Expansion Board)

Combined I/O Header

For alternate hookup of

I/O points (for use with

custom break-out boards,

bulkhead connectors,

harness, etc.)

COM IN (RJ-45)

Serial communication

input from ClearCore

or previous CCIO-8

Mounting Hole

Mounting Plate

Aluminum, 2mm

COM OUT (RJ-45)

Serial communication

output to next CCIO-8

if applicable

DC Power Input

24VDC

Digital Inputs or

Digital Outputs (8 total)

Digital Inputs or

Digital Outputs (8 total)

CCIO-8 I/O expansion board
