Powering ClearLink and CCIO-8
ClearLink and CCIO-8 are 24VDC compatible devices. This section includes
ClearLink power supply recommendations and wiring instructions.
Important: Do not use your ClearLink power supply to also supply DC bus
power to servo or stepper drives attached to ClearLink (this applies to
ClearPath motors too!). Always use a separate, dedicated power supply,
such as the IPC-5
, that is specifically designed to manage the power and
regenerated energy requirements of servo or step motor drives.
Recommended Power Supply
PWR-IO-24VDC

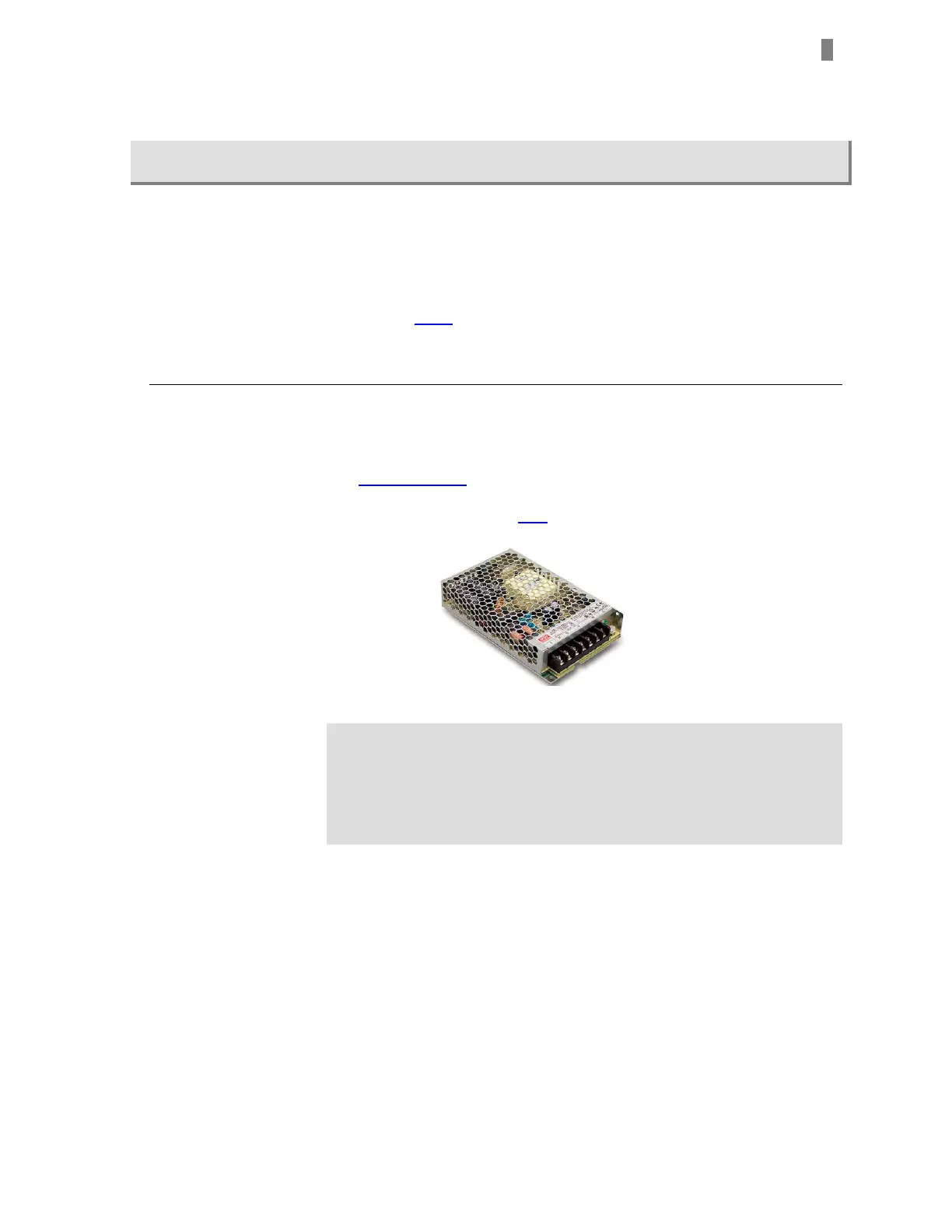

The PWR-IO-24VDC power supply (Mean Well PN LRS-150-24) is an
inexpensive, 24VDC, 6.5A (156W) switching supply capable of powering most
ClearLink applications. Click here
to view product datasheet.
Why choose a "higher current" power supply?
A power supply of 6.5A or more is recommended for ClearLink applications to ensure that
the ClearLink processor always remains powered, even under adverse operating conditions
such as overloads or shorts. Note: Lower current supplies will work with ClearLink, but may
experience shutdowns or brown outs if ClearLink is overloaded or shorted due to use or
application error.
