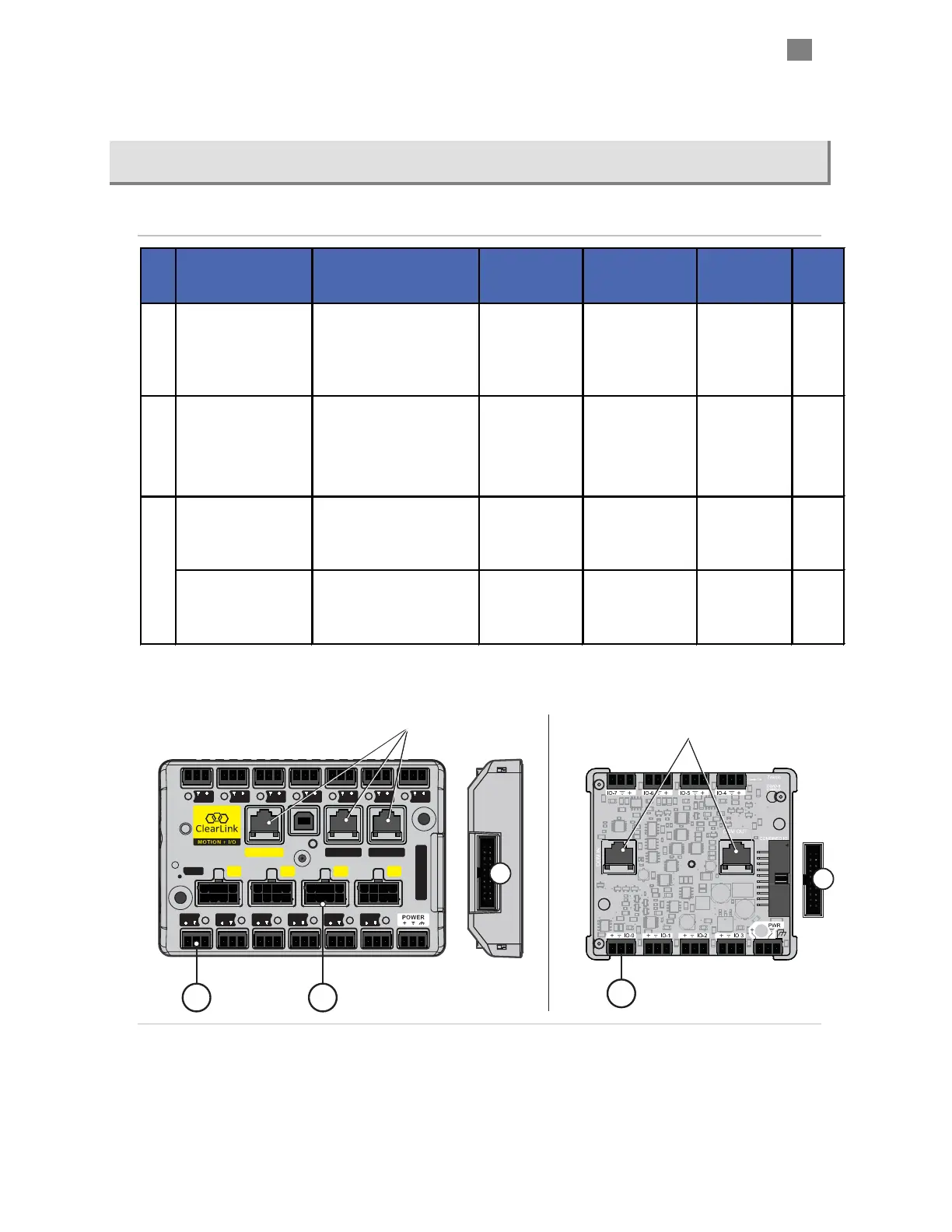

Appendix C: Mating Connectors and Terminals
Ref.
Mating Connector
Description
Mating Connector
or Cable PN
Terminal
Description
Terminal PN Tooling
Wire
Gauge
(AWG)
A
Screw terminal block, 3-
position, 3.81mm pitch
Molex/0395105003
OPTIONAL
Wire ferrule, 20-24
AWG, white
OPTIONAL
American Electrical
1181050
OPTIONAL
Crimp Tool
American Electrical
TRAP 22-10
20-24
B
Molex MiniFit-Jr,
receptacle, 8-position
Molex part numbers:
39-01-2080 (natural, UL 94V-2)
39-01-3085 (black, UL 94V-2)
39-01-2085 (natural, UL 94V-0)
39-03-9082 (black, UL 94V-0)
Female crimp terminal,
tin plate, 22-28 AWG
Molex/39-00-0046 (reel)
Molex/39-00-0047
(loose)
Crimp tool
Molex/63819-1000
---------------------------
Extraction tool
Molex/11-03-0044
22
Crimp style connector
, 20
positon, free hanging, panel
mount, 0.10" (2.54mm) pitch
TE/102387-4
Socket contact, gold
plate, 22-26 AWG
crimp
TE/87756-4
Crimp tool
TE/169481-1
22-26
Ribbon cable connector
, 20-
position, IDC, gold finish
Connector
OST/101-206
Ribbon cable stock
CnC Tech/304-28-20-MC-0250F
N/A N/A N/A N/A
C
EtherNet/IP
M-2 M-3M-1M-0
ClearLink
A-12 A-11 A-10 A-9 DI-8 DI-7 DI-6
5V COM-0 CCIO Port
COMBINED I/O
I/O-5I/O-4I/O-3I/O-2I/O-0 I/O-1
RESET
x14
A
x4
B
C
x9
A
Use CAT5e cable
or better (non-crossover)
Use CAT5e cable
or better (non-crossover)
C
