Teknion Leverage - Top Trim Installation Process

Section:
Description:
Page No:
Date:
LOOSEN HEAD SCREWS
INSERT SCREEN
TLE_558
2 of 8
Sept 2021
PANEL ADD-ON SCREENS
PANELS
leverage Installation Guides

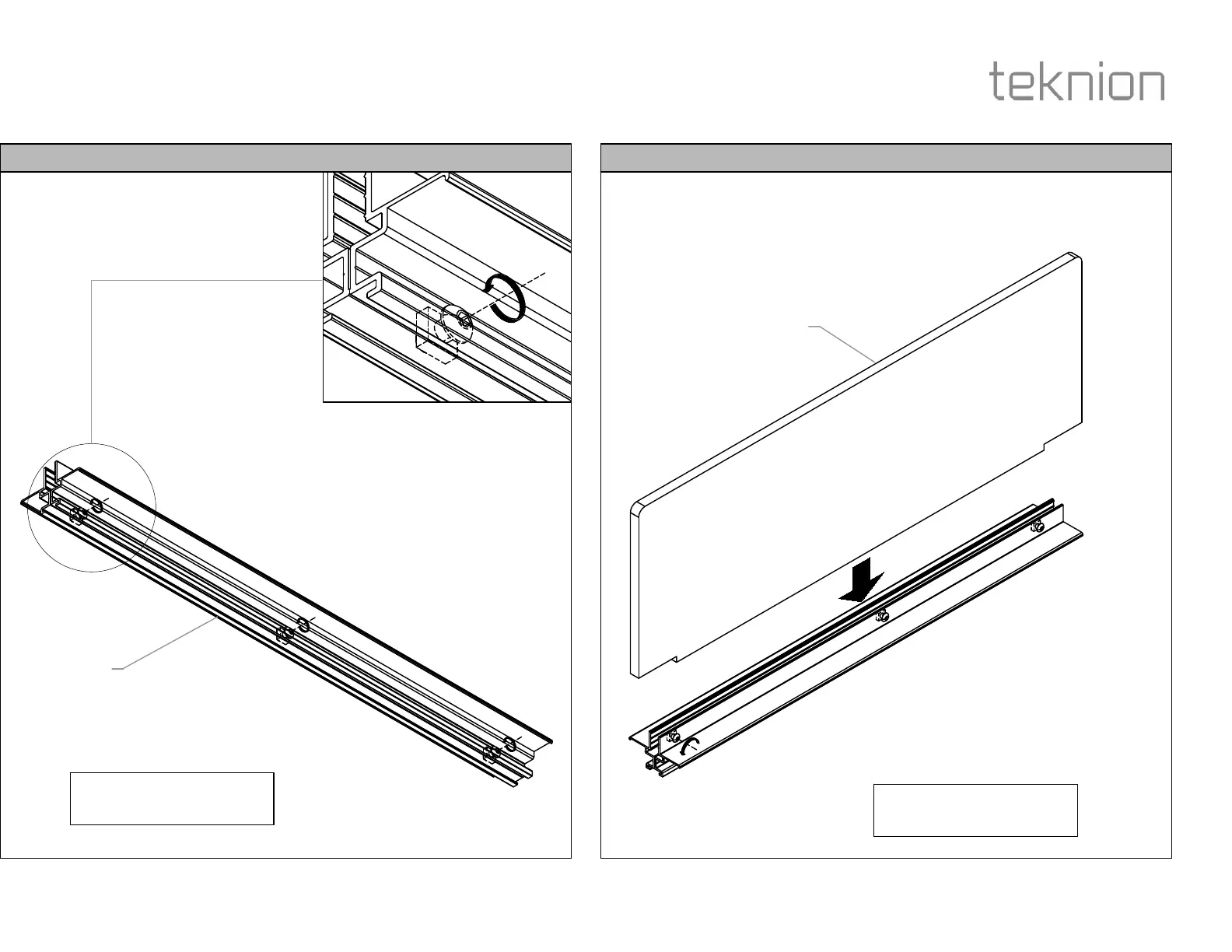

STEP 2: Insert Screen Assm. into extrusion making sure edge of Screen lines up with metal rail
as per specifications. Tighten the Button Head screws.
STEP 1: Loosen the Hex Socket Button Head screws alongthe side of the extrusion.
NOTE: Ensure that the Torque is between Min 8.5lbf-in to Max 14lbf-in.
C1
A
NOTE: Please Ensure that the
Torque is between Min 8.5lbf-in
to Max 14lbf-in.
NOTE: Please Ensure that the
Torque is between Min 8.5lbf-in
to Max 14lbf-in.
