PANEL ADD-ON SCREEN - EXTENDED CORNER APPLICATION
Sept 2021
8 of 8
TLE_558
PANEL ADD-ON SCREENS
PANELS
leverage Installation Guides

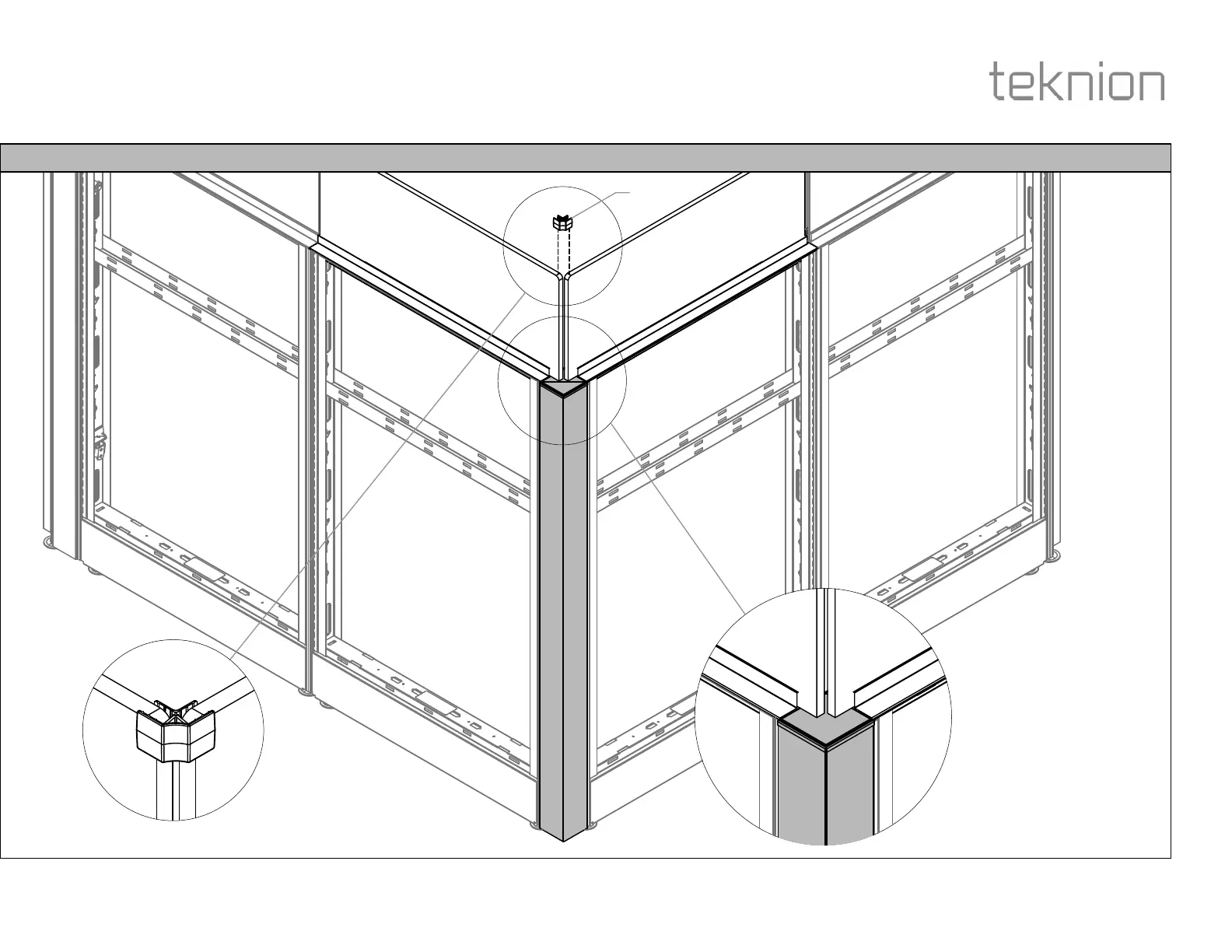

Step 6: Install 90 deg Alignment Clip by pushing it between the two screens. NOTE: Always install 90° Corner Cover Trim together with the Panel Add-On Screen when Extended Screens meet
at the corner. The Cap of the Corner Cover has to engage into the trims. For 90° Corner Cover Trim installation, refer to installation guide TLE_205.
