INSTALL ANCHOR PLATE ASSEMBLY
May 2019
5 of 9
ZNS_101b
FREESTANDING LOUNGE & SEMI-SUPPORTED SCREENS INSTALLATION
FREESTANDING SCREENS
zones Installation Guides

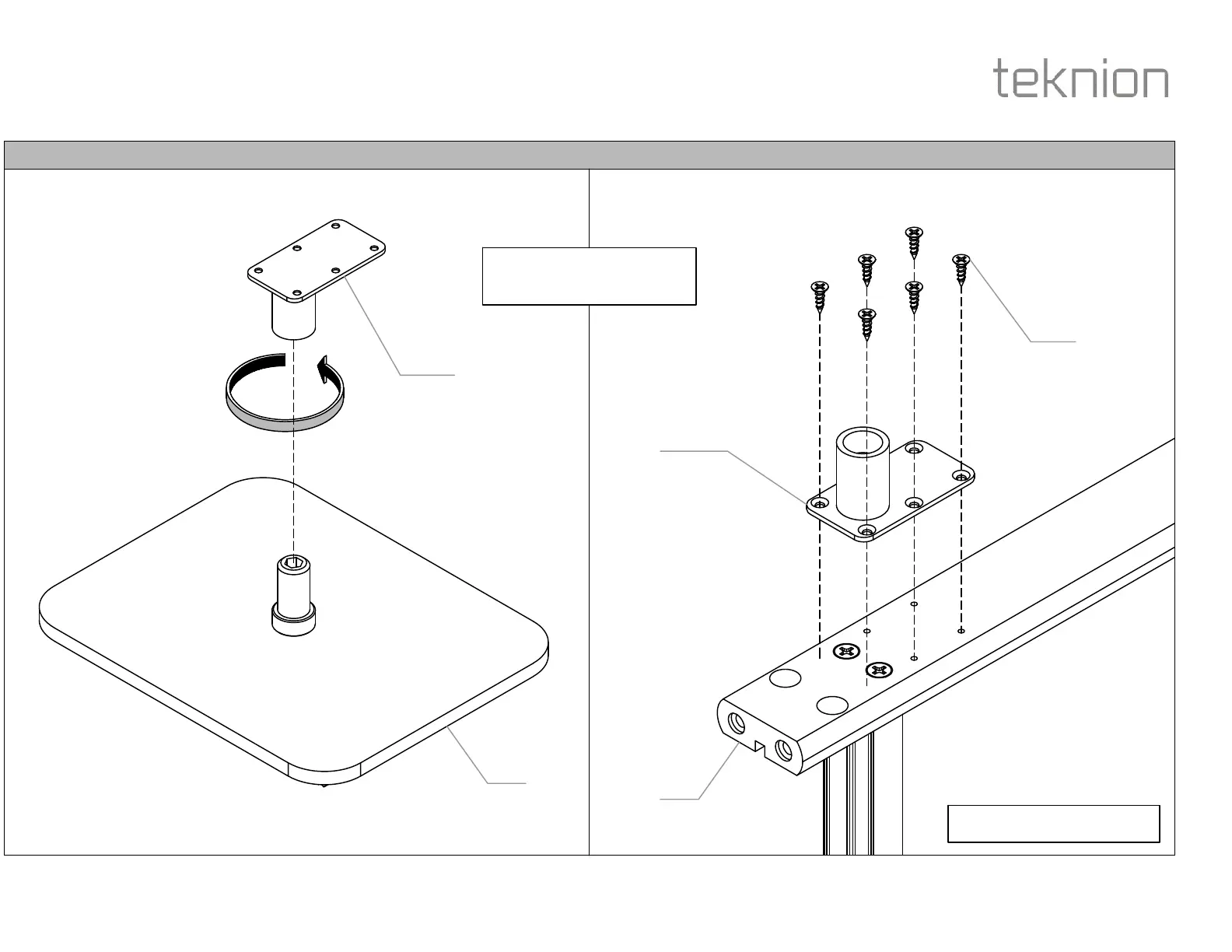

STEP 2: Unscrew the Bushing and Plate Assembly from the Screen Anchor Plate Assembly. Flip Flat Screen Assembly upside down. Place Bushing and Plate Assembly and secure it with Wood
Screws.
NOTE: Ensure that the screen is
placed on a clean and flat surface.
NOTE: ONLY APPLICABLE
WHEN ANCHOR PLATE
IS SPECIFIED.
H2
H1
G
H1
H4
