Teknion zones - Level Screen Assembly

Section:
Description:
Page No:
Date:
LEVEL SCREEN ASSEMBLY
May 2019
7 of 9
ZNS_101b
FREESTANDING LOUNGE & SEMI-SUPPORTED SCREENS INSTALLATION
FREESTANDING SCREENS
zones Installation Guides

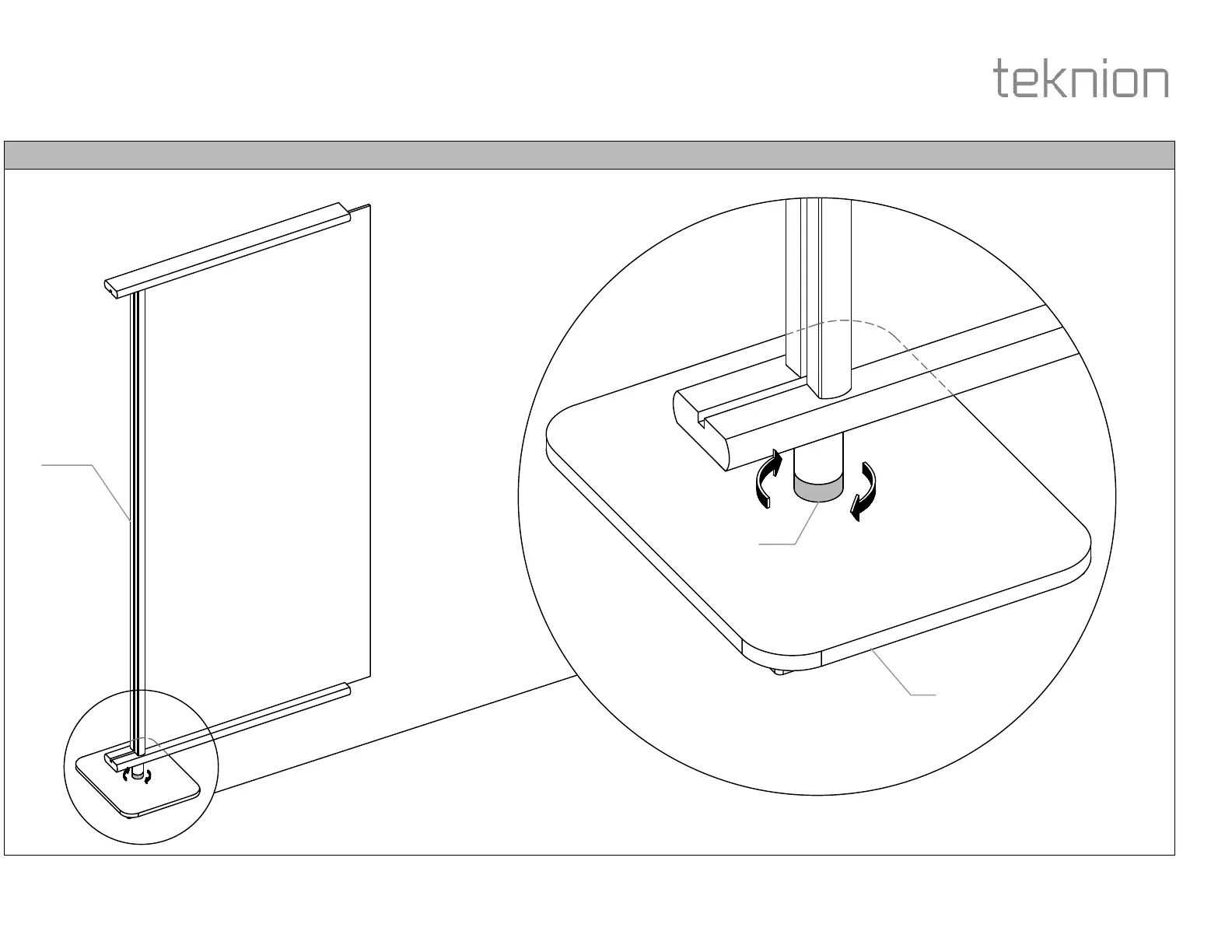

STEP 4: Hand tighten the Lock Ring to the bottom the the Bushing and Plate to level Screen Assembly.
G
H1
H3
