ENGLISH
Wiring connections
Connect the cable to the indoor unit
1. Indoor/Outdoor connection cable should be H07RN-F type.
2. Lift the indoor unit panel up and remove the screw, then remove the window cover.
3. Connect cables according to their marks to terminals.
4. Wrap those cables not connected with terminals with insulation tapes, so that they will not touch
any electrical components.
Connect the cable to the outdoor unit
1. Remove the electric parts cover from the outdoor unit.
2. Connect the connective cables to the terminals as identified with their respective matched num
bers on the terminal block of indoor and outdoor units.
3. To prevent the ingress of water, from a loop of the connective cable as illustrated in the installation
diagram of indoor and outdoor units.
4. Insulate unused cords (conductors) with PVC-tape. Process them so they do not touch any electri
cal or metal parts.
Wires specifications

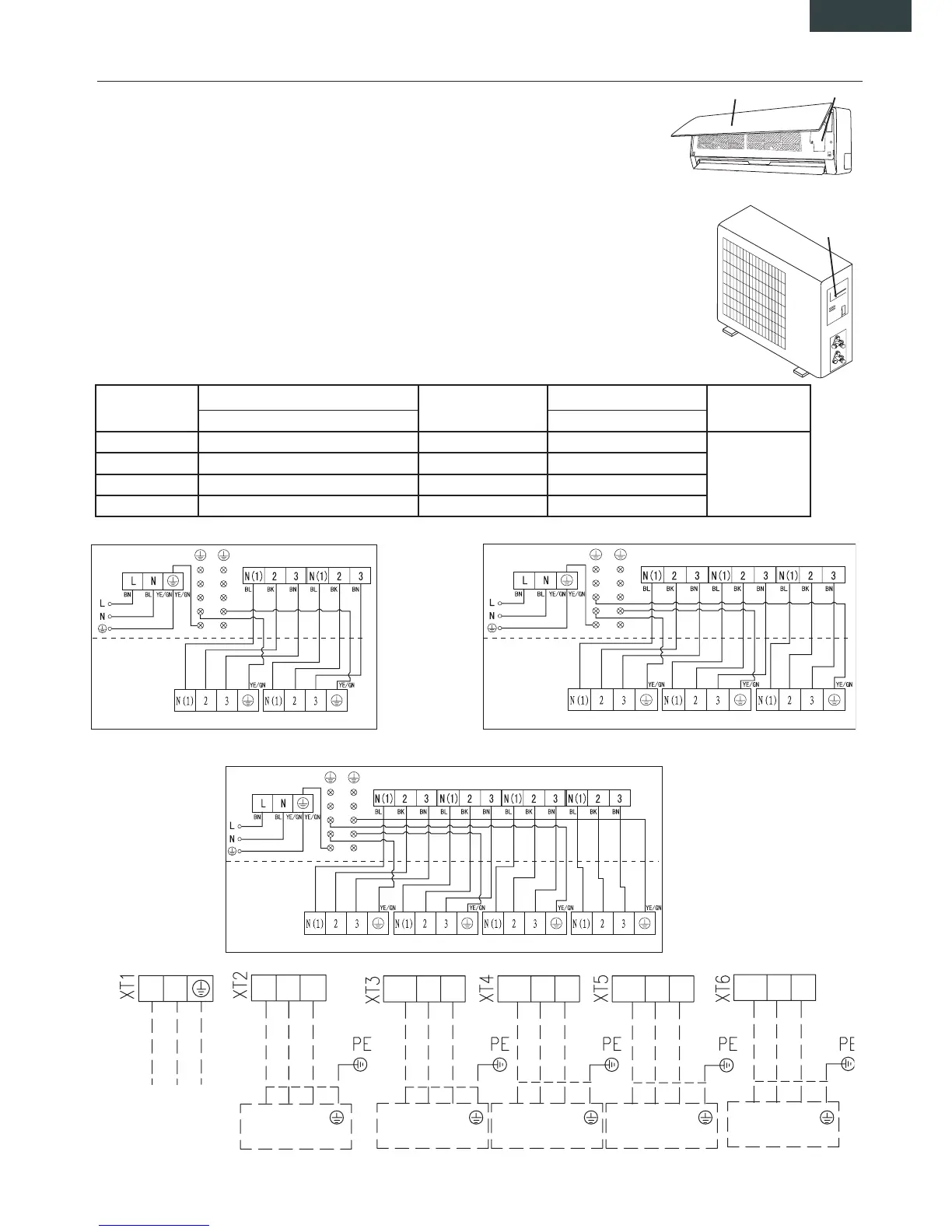

8. INSTALLATION
INDOOR UNIT
OUTDOOR UNIT
Front panel Terminal
Acces door
terminal
INDOOR A XT1
INDOOR A XT1
INDOOR A XT1
INDOOR UNITS
A B C D
INDOOR B XT1 INDOOR C XT1 INDOOR D XT1
INDOOR UNITS A B C
OUTDOOR UNIT
OUTDOOR UNIT
OUTDOOR UNIT
INDOOR B XT1 INDOOR C XT1
INDOOR UNITS A B
INDOOR B XT1
1 x 2 MULTI DC INVERTER 1 x 3 MULTI DC INVERTER
1 x 4 MULTI DC INVERTER
1 x 5 MULTI DC INVERTER
L N
2 3
N(1)
2 3 N(1)
2 3 N(1)
2 3 N(1)
2 3 N(1)
2 3 N(1)
2 3 2 3 2 3 2 3
N(1)
N(1)
N(1) N(1)
INDOOR UNIT A INDOOR UNIT B INDOOR UNIT C INDOOR UNIT D
INDOOR UNIT E
POWER / ALIMENTAZIONE
TO OUTDOOR UNIT
Indoor unit (W)
Indoor - outdoor connecting cable
Outdoor unit
Power connecting cable Alimentazione
principale
Section Section
2600 W 4 x 1,0 mm² 1 x 2 DC inverter 3 x 2,5 mm²
To outdoor unit
5300 W 4 x 1,0 mm² 1 x 3 DC inverter 3 x 4,0 mm²
5300 W 4 x 1,0 mm² 1 x 4 DC inverter 3 x 4,0 mm²
1 x 5 DC inverter 3 x 6,0 mm²
