TKR8052A
Right
Left

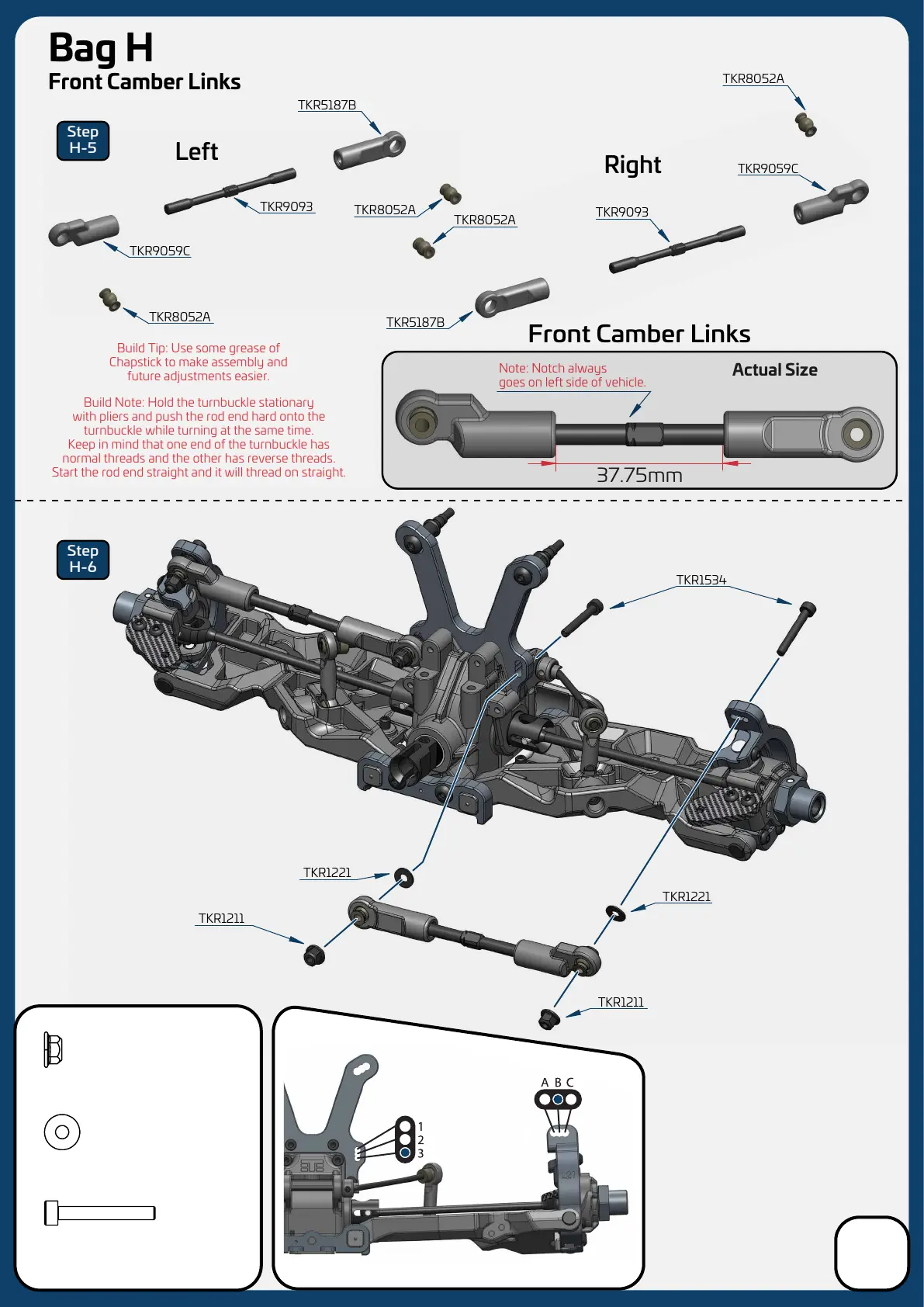

Front Camber Links
TKR9059C
TKR8052A
TKR5187B
TKR5187B
TKR9093
TKR9093
TKR9059C
TKR8052A
TKR1534
TKR8052A
Bag H
Front Camber Links
Step
H-5
Step
H-6
Build Note: Hold the turnbuckle stationary
with pliers and push the rod end hard onto the
turnbuckle while turning at the same time.
Keep in mind that one end of the turnbuckle has
normal threads and the other has reverse threads.
Start the rod end straight and it will thread on straight.
TKR1211
TKR1221
TKR1211
TKR1221
TKR1534
M3x22mm Cap Head Screw
x4
TKR1211
M3 Lock Nut Flange Black
x4
TKR1221
M3x8mm Washer
x4
37.75mm
Note: Notch always
goes on
left side of vehicle.
Actual Size
Build Tip: Use some grease of
Chapstick to make assembly and
future adjustments easier.
12
Stock position is 3/B
To Next Page
