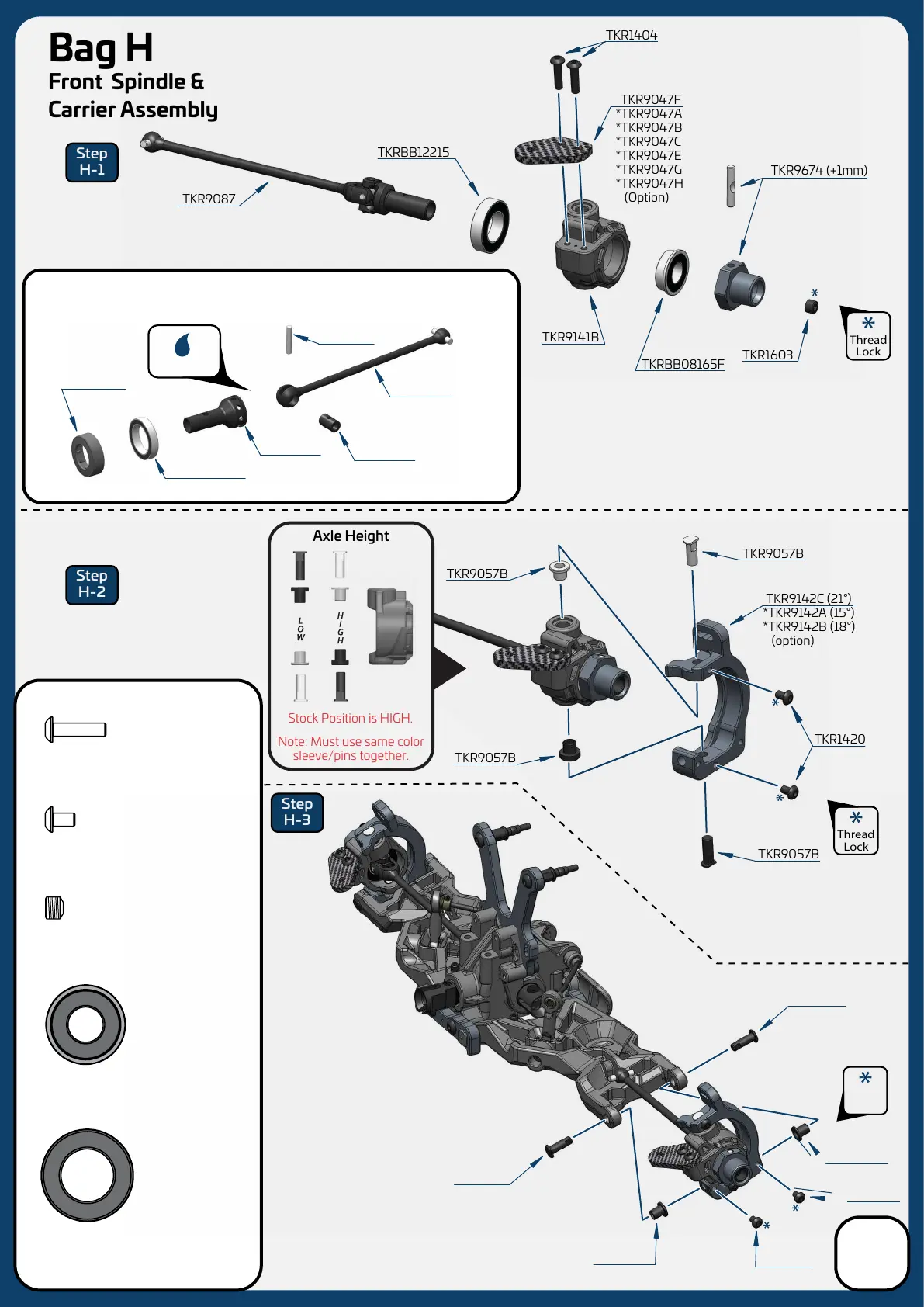

Tekno EB48 2.2 - Page 11

Bag H
Front Spindle &
Carrier Assembly
Step
H-1
Step
H-2
Step
H-3
TKR9141B
TKRBB12215
TKRBB08165F
TKR9674 (+1mm)
TKR1603
TKR9087
TKR1404
TKR1420
M3x5mm Button Head Screw
x8
TKR1404
M3x12mm Button Head Screw
x4
Thread
Lock
TKR1603
M5x4mm Set Screw
x2
TKRBB08165F
Flanged Ball Bearing (8x16x5)
x2
TKRBB12215
Ball Bearing (12x21x5)
x2
TKR9047F
*TKR9047A
*TKR9047B
*TKR9047C
*TKR9047E
*TKR9047G
*TKR9047H
(Option)
TKR9057B
TKR9142C (21 °)
TKR9057B
TKR9057B
TKR9057B
TKR1420
Thread
Lock
*TKR9142A (15 °)
*TKR9142B (18 °)
(option)
Axle Height
Note: Must use same color
sleeve/pins together.
Stock Position is HIGH.
11
*TKR5071 (0mm)
*TKR9671 (+2mm)
*TKR5071X (light, 0mm)
*TKR5071B (light, +1mm)
*TKR5071C (light, +2mm)
(Option)
*TKR8073
(Option)
Grease
*TKR8072
(Option)
*TKRBB15214
(Option)
*TKR9141
(In BAG Q)
*TKR8070
(Option)
*TKR8073
(Option)
Note: These parts are not included.
Optional CVD Setup
TKR9043
TKR1420
TKR9043
TKR1420
TKR9055
TKR9055
Thread
Lock
