Tekno EB48 2.2 - Page 21

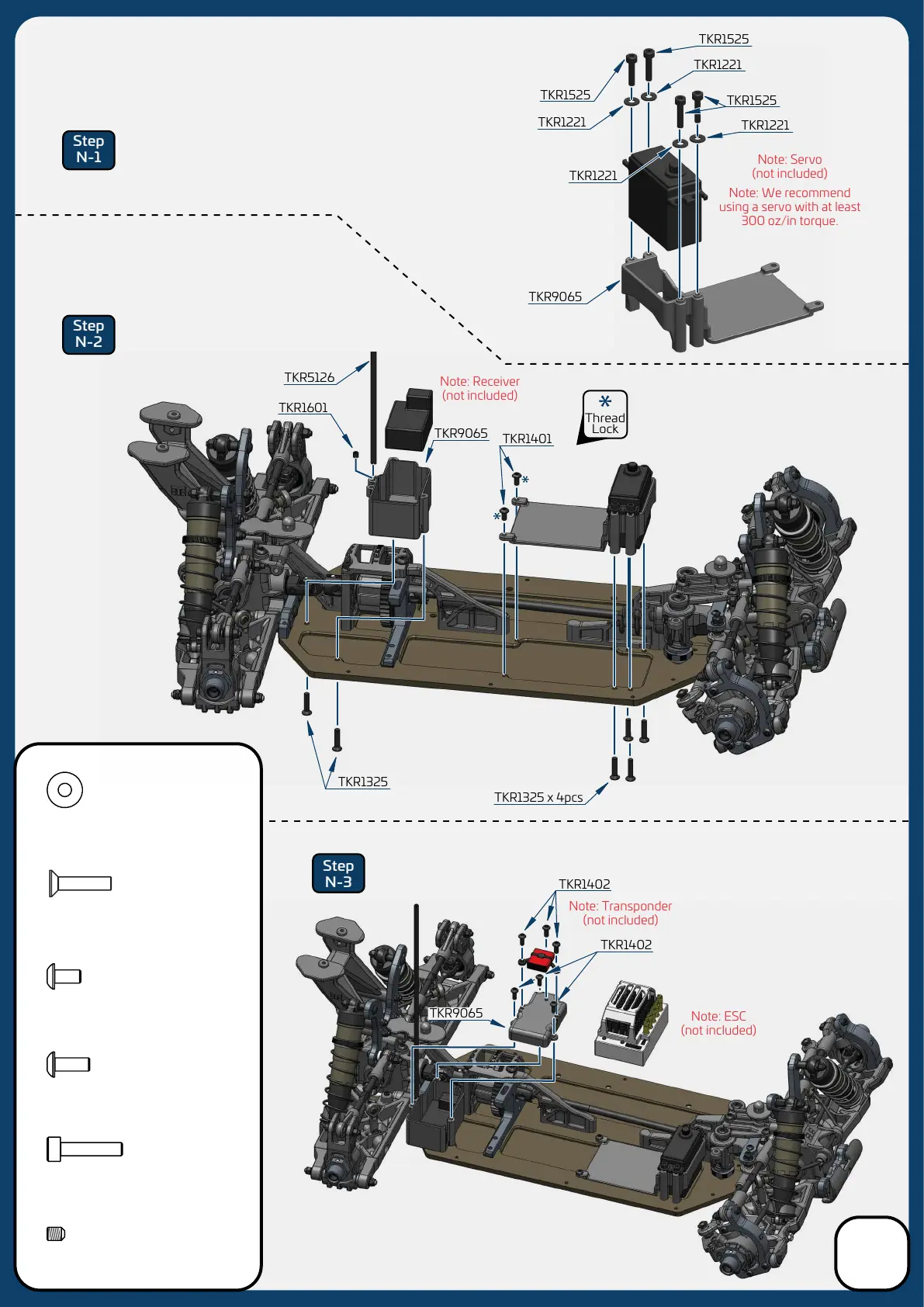

Step
N-1
Step
N-2
Step
N-3
TKR1525
TKR1221
TKR1221
TKR9065
TKR9065
TKR5126
TKR1601
TKR1525
TKR1525
TKR9065
TKR1221
TKR1221
TKR1325 x 4pcs
TKR1325
TKR1402
TKR1402
TKR1401
TKR1221
M3x8mm Washer
x4
Note: Receiver
(not included)
Note: ESC
(not included)
Note: Transponder
(not included)
Note: Servo
(not included)
Note: We recommend
using a servo with at least
300 oz/in torque.
TKR1401
M3x6mm Button Head Screw
x2
TKR1525
M3x14mm Cap Head Screw
x4
Thread
Lock
TKR1601
M3x4mm Set Screw
x1
TKR1325
M3x14mm Flat Head Screw
x6
TKR1402
M3x8mm Button Head Screw
x6
Bag N
ESC/Radio Tray install
21
