Tekno EB48 2.2 - Page 5

Note: Do not over-tighten.
Note: Apply a small
amount of black grease
to the ring gear teeth.
Thread
Lock
TKR1603
TKR1301
TKR1301
TKR1301
TKR9153
TKR1222
TKR9416B
TKR8777B
TKR9268E
TKR9416B
TKR1525
TKR1525
TKR9268E
TKR8777B
TKR5075
TKR5075
TKR1226
TKR9416B
TKR9017B
TKR1443
TKR1443
TKR1525 x4pcs
TKR1525
x4pcs
TKR9017B
TKR1301
TKR9153
TKR1603
TKR9416B
TKRBB05145
TKRBB05145
TKR1226
TKRBB05145
TKRBB05145
Step
C-1
Step
C-3
Step
C-4
Step
C-2
TKR1301
M2.5x6mm Flat Head Screw
x2
TKR1525
M3x14mm Cap Head Screw
x6
TKR1603
M5x4mm Set Screw
x1
TKR1226
M5x7x.2mm Shim
x1
TKR1222
13x16x.1mm Shim
x2
TKRBB05145
Ball Bearing (5x14x5)
x2
Grease
TKR1443
M4x10mm Button Head Screw
x2

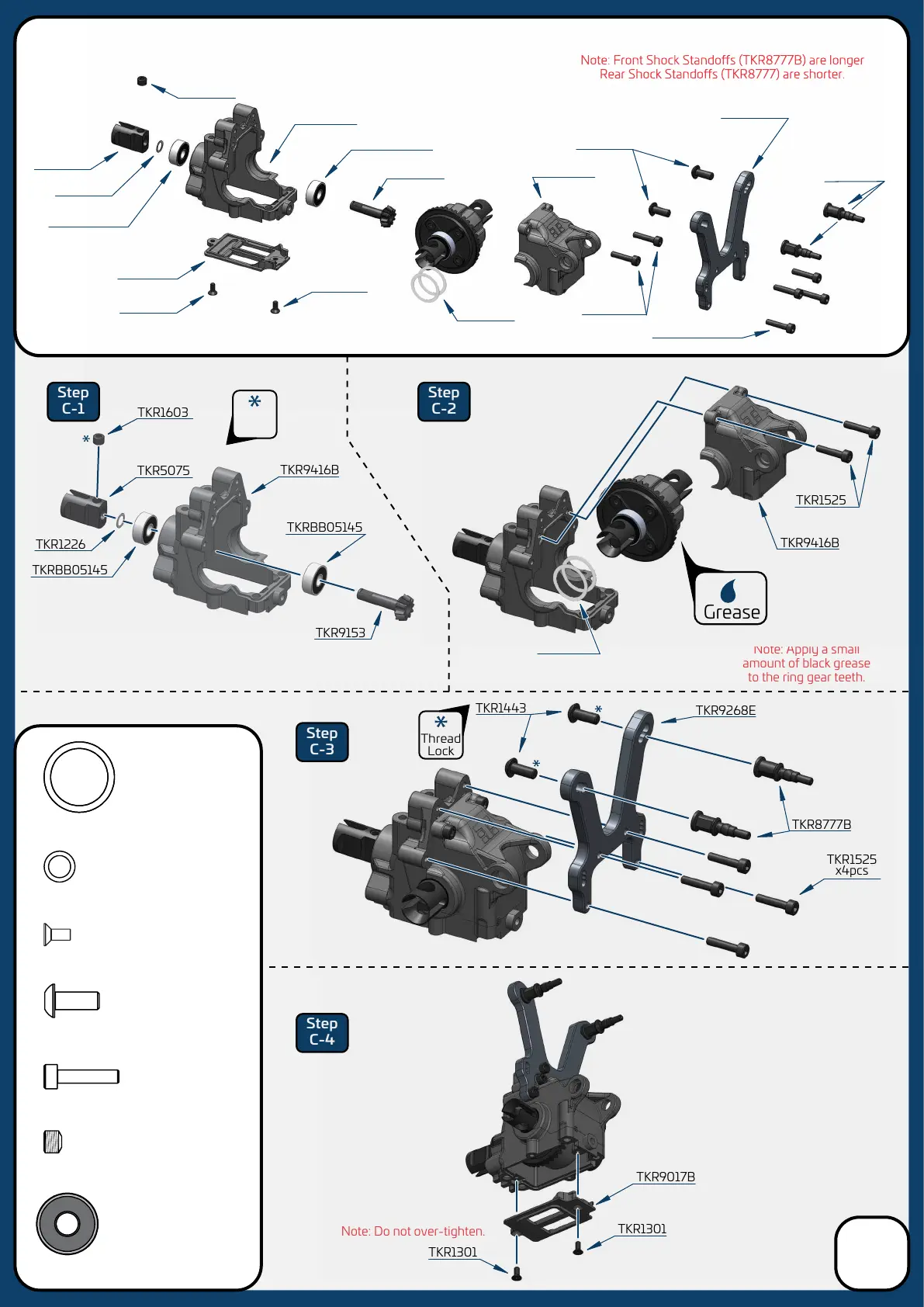

Bag C Front Gearbox (overview)
5
Thread
Lock
Note: TKR1222 may not be required.
Check fitment and add if needed.
TKR1222
