Tekno EB48 2.2 - Page 6

Note: Do not over-tighten.
TKR1603
TKR1301
TKR1301
TKR1201 x 4pcs
TKR9269B
TKR9153
TKR1525
x 4pcs
TKR9416B
TKR1525 x 6pcs
TKR1525 x 4pcs
TKR1525
TKR8727
TKR1201
x 4pcs
TKR9181T
TKR9095
TKR9416B
TKR9017B
TKR9017B
TKR1525
TKR1443
TKR1443
TKR8777
TKR1525 x 2pcs
TKR9181T
TKR1301
TKR9416B
TKR9153
TKR9181T
TKR1603
Thread
Lock
TKR9416B
TKRBB05145
TKR1226
TKRBB05145
TKR9095
TKR1226
TKR9181T
TKR9269E
TKR1525 x 4pcs
TKRBB05145
TKRBB05145
Step
D-1
Step
D-3
Step
D-4
Step
D-2
TKR1301
M2.5x6mm Flat Head Screw
x2
TKR1525
M3x14mm Cap Head Screw
x12
TKR1603
M5x4mm Set Screw
x1
TKRBB05145
Ball Bearing (5x14x5)
x2
TKR1226
M5x7x.2mm Shim
x1
TKR1201
M3 Locknut Black
x4
Grease
Note: Apply a small
amount of black grease
to the ring gear teeth.
Note: TKR1222 may not be required.
Check fitment and add if needed.
TKR1222
TKR1222
13x16x.1mm Shim
x2
TKR1443
M4x10mm Button Head Screw
x2
Thread
Lock

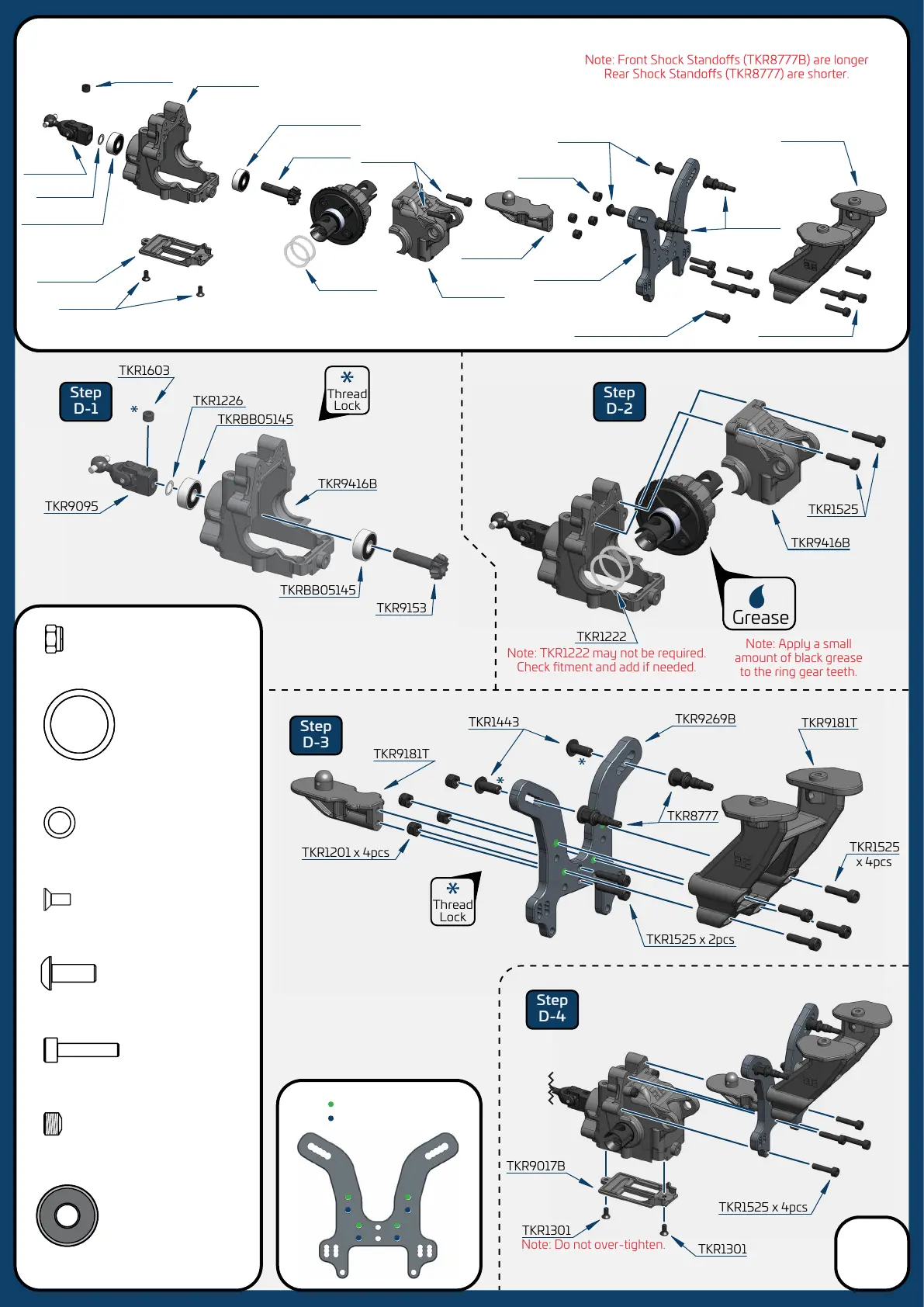

Bag D Rear Gearbox (overview)
6
Note: Wing mount height is now
adjustable by moving it up or down
on the tower.
Note: Stock position is + 7mm.
7mm (stock)
0mm
TKR1222
