Kona Macro User Guide T0005158_UG Version 0.6
TEKTELIC Communications Inc. Confidential Page 13 of 32

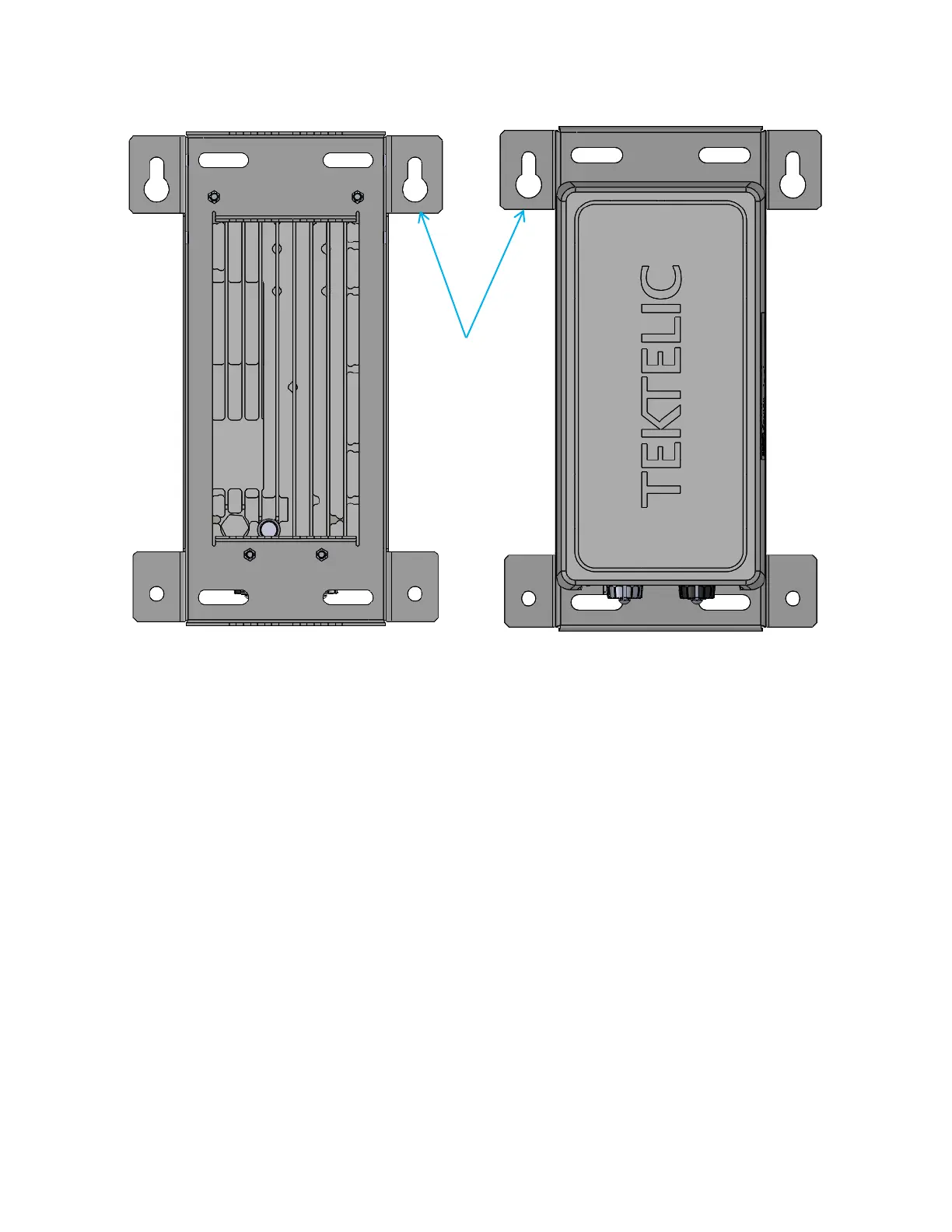

Figure 4: Kona Macro Gateway Module with Mounting Bracket
Ensure that the structure to which the Gateway is being mounted is secure and able to support
a dead load of at least 136 kg (300 lbs). The area below must be free of any obstructions to cable
ingress.
The Kona Macro Gateway wall mounting procedure is as follows:
1. Bolt the wall mounting bracket to the Gateway module using the supplied bolts and
washers.
2. Install 2 site supplied M8 bolts into the wall at 139.7 mm (5.5”) center spacing, leaving
the bold heads protruding with a 2mm gap from the wall surface.
3. Hang the Kona Macro Gateway with bracket from the two bolts by inserting the keyhole
slots at the top of the bracket onto the 2 bolts and tightening the bolts.
4. Insert and tighten two additional site supplied M8 bolts through the holes at the bottom
of the bracket.
The Kona Macro Gateway pole mounting procedure is as follows:
Mounting
Bracket
