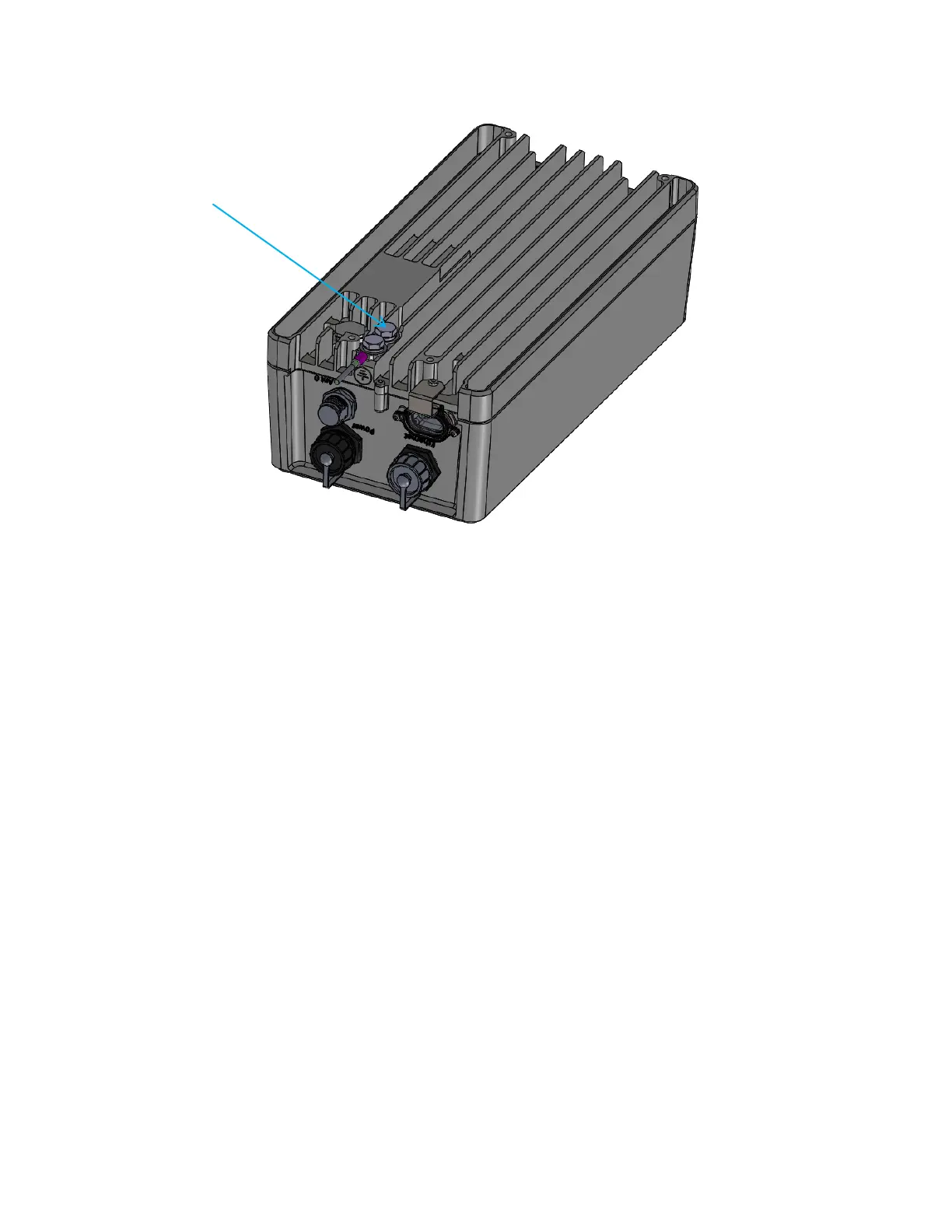

Figure 5: Chassis Ground Connection
2.6 Direct DC Power Cable Installation
The Kona Macro Gateway direct DC feed terminates at a dedicated two pin circular plastic
connector (CPC) on the bulkhead. The direct DC power input is isolated from chassis (earth) with
the exception of the primary surge suppressors. One lead of the DC power feed is normally earth
referenced external to the Kona Macro Gateway (usually at the power source by convention).
The DC power cable shall be rated for outdoor application according to local and national
electrical codes.
The CPC direct DC connector shall be as specified in Table 2 and shall follow the signal polarity
identified in Figure 6.
Chassis Ground
Connection
