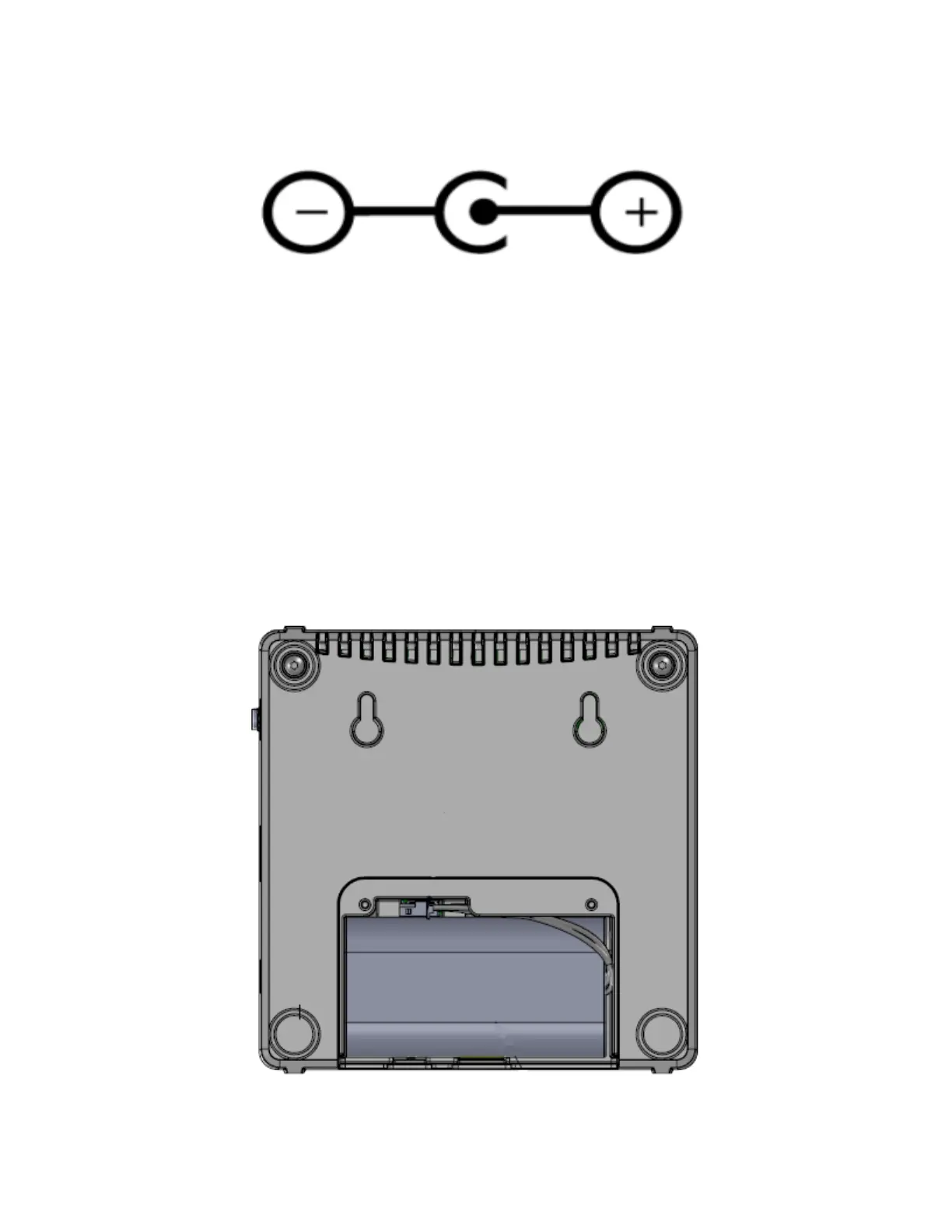

Figure 5: DC Power Connection Polarity
2.5. Battery Installation
Use only a battery provided by Tektelic Communications Inc. Dispose of old batteries in
accordance with regulatory requirements. Remove the battery cover by removing the two Torx-
drive battery cover securement screws. Connect the 3-pin battery connector to the connector at
the bottom of the battery compartment and then insert the battery into the battery
compartment as illustrated in Figure 6. After the battery is connected and inserted, reinstall the
battery cover and secure it in place using the two battery cover securement screws.
