1.2. Physical Interfaces

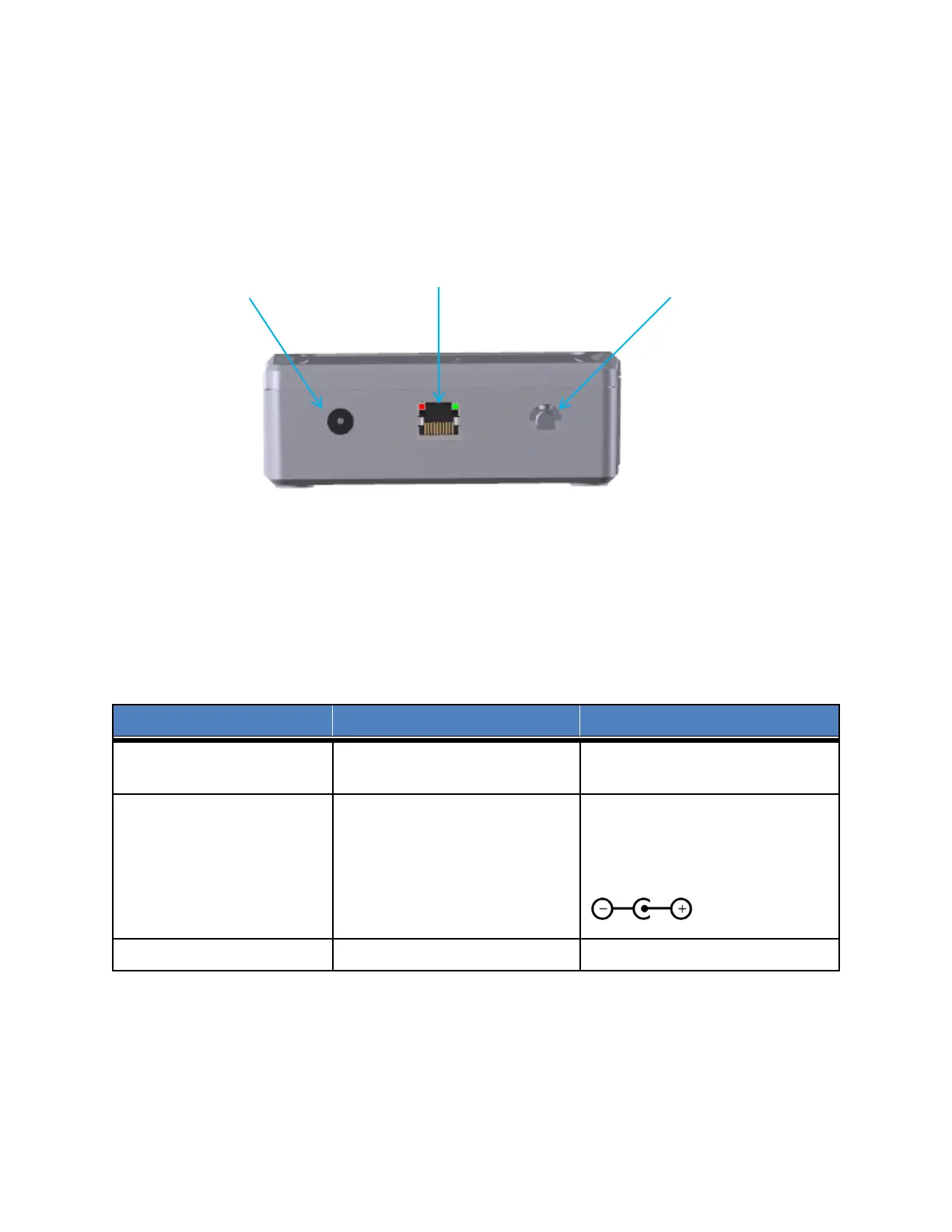

Figure 2 illustrates the connector layout for the Kona Micro Gateway.
Figure 2: Kona Micro Gateway Bulkhead Layout
The Gateway connectors are listed in Table 2.
Table 2: Kona Micro Gateway Interface Connector Types
Interface
Connector Type
Mating Connector
LoRa Antenna Ports
Reverse SMA female
Industry standard Reverse SMA
male
DC Power Input Port
Barrel Jack
DC Barrel plug
2.1 mm (inner), 5.5 mm (outer)
Center positive
Ethernet Port
RJ-45
Industry standard RJ45 plug
1.3. Specifications
The Kona Micro Gateway specifications are listed in Table 3.
DC Power
LoRa RF
Antenna
Ethernet

TEKTELIC Communications Kona Micro Gateway Series Specifications

General

Brand	TEKTELIC Communications
Model	Kona Micro Gateway Series
Category	Gateway
Language	English
