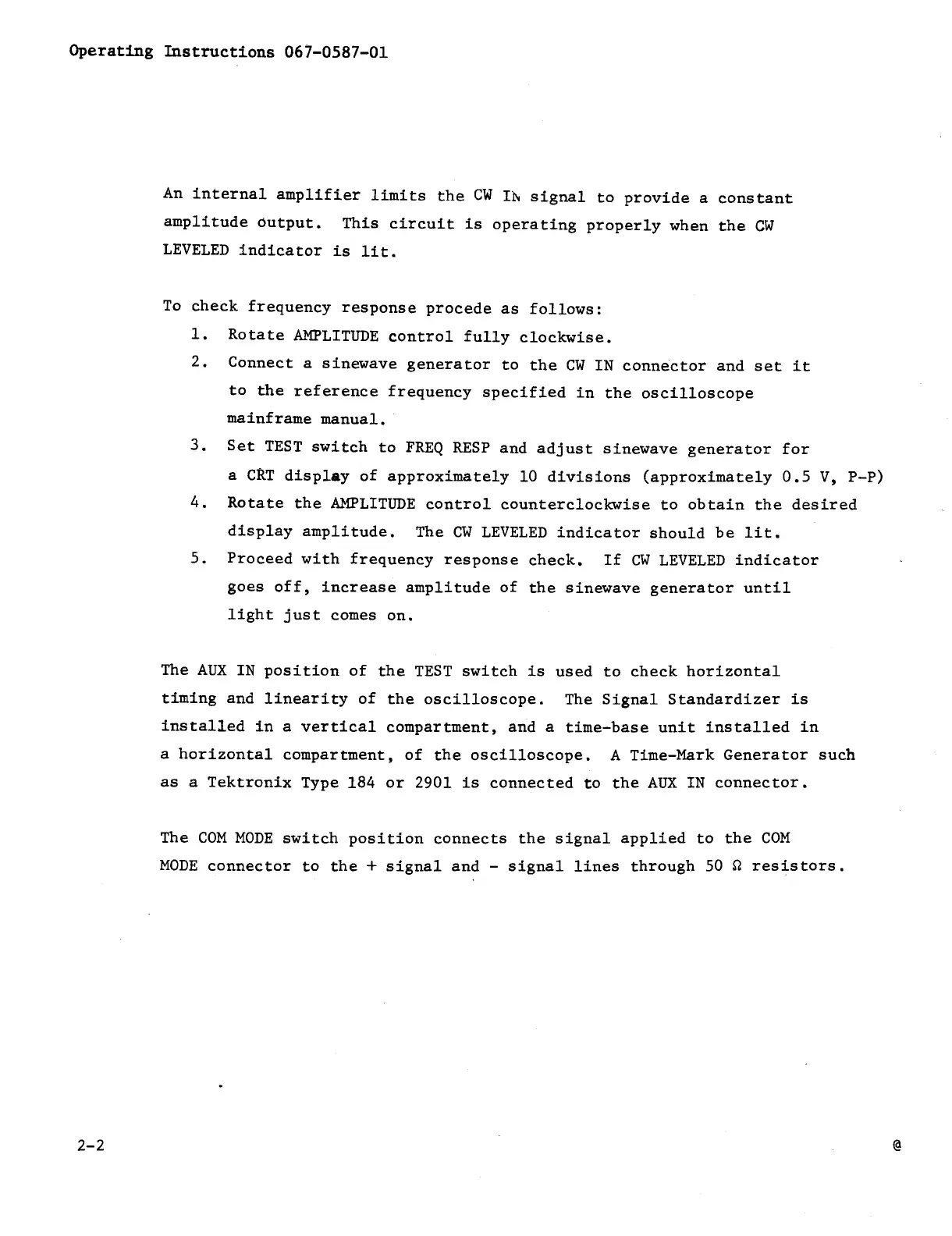

Operating
Instructions
067-0587-01
2-2
An
internal
amplifier
limits
the
CW
In
signal
to
provide
a
constant
amplitude
output.
This
circuit
is
operating
properly
when
the
CW
LEVELED
indicator
is
lit.
To
check
frequency
response
procede
as
follows:
1.
Rotate
AMPLITUDE
control
fully
clockwise.
2.
Connect
a
sinewave
generator
to
the
CW
IN
connector
and
set
it
to
the
reference
frequency
specified
in
the
oscilloscope
mainframe
manual.
3.
Set
TEST
switch
to
FREQ
RESP
and
adjust
sinewave
generator
for
a
CRT
display
of
approximately
10
divisions
(approximately
0.5
V,
P-P)
4.
Rotate
the
AMPLITUDE
control
counterclockwise
to
obtain
the
desired
display
amplitude.
The
CW
LEVELED
indicator
should
be
lit.
|
3.
Proceed
with
frequency
response
check.
If
CW
LEVELED
indicator
goes
off,
increase
amplitude
of
the
sinewave
generator
until
light
just
comes
on.
The
AUX
IN
position
of
the
TEST
switch
is
used
to
check
horizontal
timing
and
linearity
of
the
oscilloscope.
The
Signal
Standardizer
is
installed
in
a
vertical
compartment,
and
a
time-base
unit
installed
in
a
horizontal
compartment,
of
the
oscilloscope.
A
Time-Mark
Generator
such
as
a
Tektronix
Type
184
or
2901
is
connected
to
the
AUX
IN
connector.
The
COM
MODE
switch
position
connects
the
signal
applied
to
the
COM
MODE
connector
to
the
+
signal
and
-
signal
lines
through
50
2
resistors.
