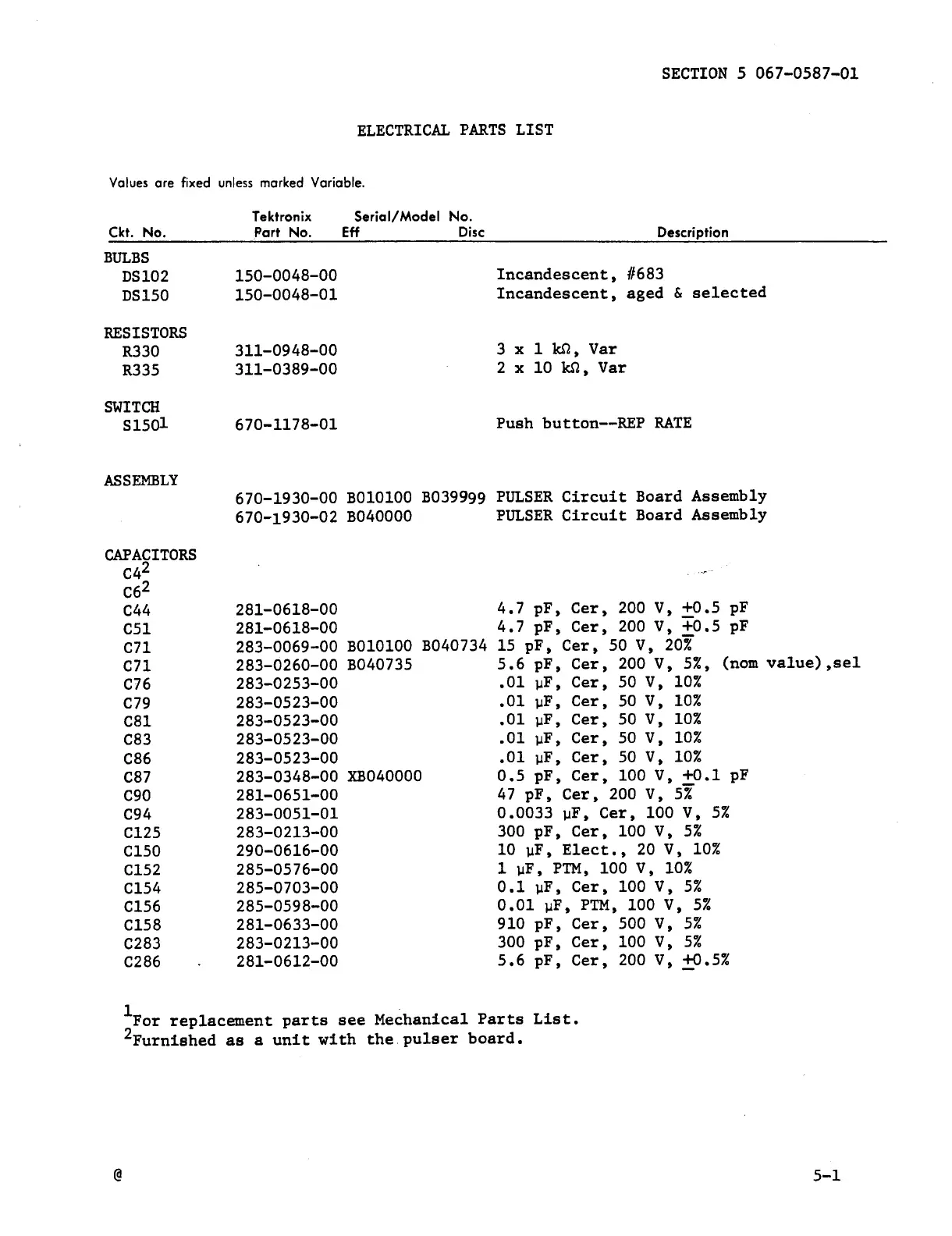

SECTION 5 067-0587-01
ELECTRICAL PARTS LIST
Values are fixed unless marked Variable.
Tektronix Serial/Model No.
Ckt. No. Part No. Eff Disc Description
BULBS
DS102 150-0048-00 Incandescent, #683
DS150 150-0048-01 Incandescent, aged & selected
RESISTORS
R330 311-0948-00 3 x 1 kQ, Var
R335 311-0389-00 2 x 10 kQ, Var
SWITCH
s1501
670-1178-01
Push
button--REP
RATE
ASSEMBLY
670-1930-00
BO010100
BO39999
PULSER
Circuit
Board
Assembly
670-1930-02
BO40000
PULSER
Circuit
Board
Assembly
CAPACITORS
C42 oe
c62
C44
281-0618-00
4.7
pF,
Cer,
200
V,
+0.5
pF
C51
281-0618-00
4.7
pF,
Cer,
200
V,
+0.
5
pF
C71 283-0069-00 BO10100 BO40734 15 pF, Cer, 50 V, 20%
C71
283-0260-00
B040735
5.6
pF,
Cer,
200
v,
5%,
(nom
value)
,sel
C76 283-0253-00 .Ol1 uF, Cer, 50 V, 10%
C79 283-0523-00 .Ol uF, Cer, 50 V, 10%
c81 283-0523-00 .O1 pF, Cer, 50 V, 10%
C83 283-0523-00 .O1 uF, Cer, 50 V, 10%
C86 283-0523-00 .Ol uF, Cer, 50 V, 10%
C87 283-0348-00 XB040000 0.5 pF, Cer, 100 V, +0.1 pF
c90 281-0651~-00 47 pF, Cer, 200 V, 5%
C94 283-0051-01 0.0033 uF, Cer, 100 V, 54
C125 283-0213~00 300 pF, Cer, 100 V, 5%
C150 290-0616-00 10 uF, Elect., 20 V, 102
C152 285-0576-00 1 uF, PTM, 100 V, 10%
C154 285-0703-00 O.1 uF, Cer, 100 V, 5%
C156 285-0598-00 0.01 uF, PIM, 100 V, 5%
C158 281-0633-00 910 pF, Cer, 500 V, 52
C283 283-0213-00 300 pF, Cer, 100 V, 54
C286 281-0612-00 5.6 pF, Cer, 200 V, +0.52%
leor replacement parts see Mechanical Parts List.
2Furnished as a unit with the pulser board.
o-1
