Tektronix 067-0587-01 User Manual

067-0587-01 CALIBRATION FIXTURE
Signal Standardizer
‘
/

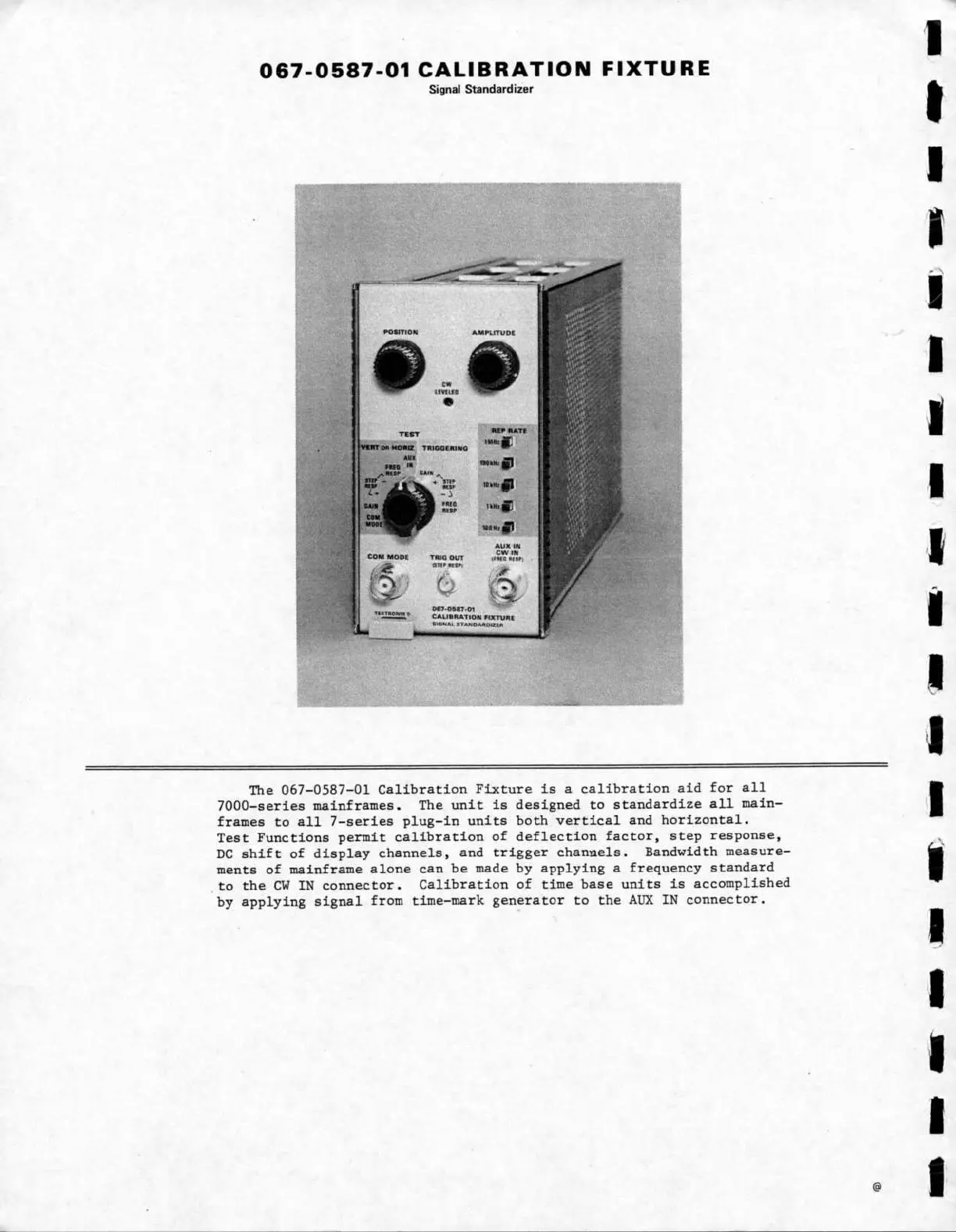

The 067-0587-01 Calibration Fixture is a calibration aid for all
7000-series mainframes. The unit is designed to standardize all main-
frames to all 7-series plug-in units both vertical and horizontal.
Test
Functions
permit
calibration
of
deflection
factor,
step
response,
DC
shift
of
display
channels,
and
trigger
channels.
Bandwidth
measure-
ments of mainframe alone can be made by applying a frequency standard
to
the
CW
IN
connector.
Calibration
of
time
base
units
is
accomplished
by applying signal from time-mark generator to the AUX IN connector.
‘
>

Tektronix 067-0587-01 Specifications

General

Brand	Tektronix
Model	067-0587-01
Category	Test Equipment
Language	English
