Operating Basics

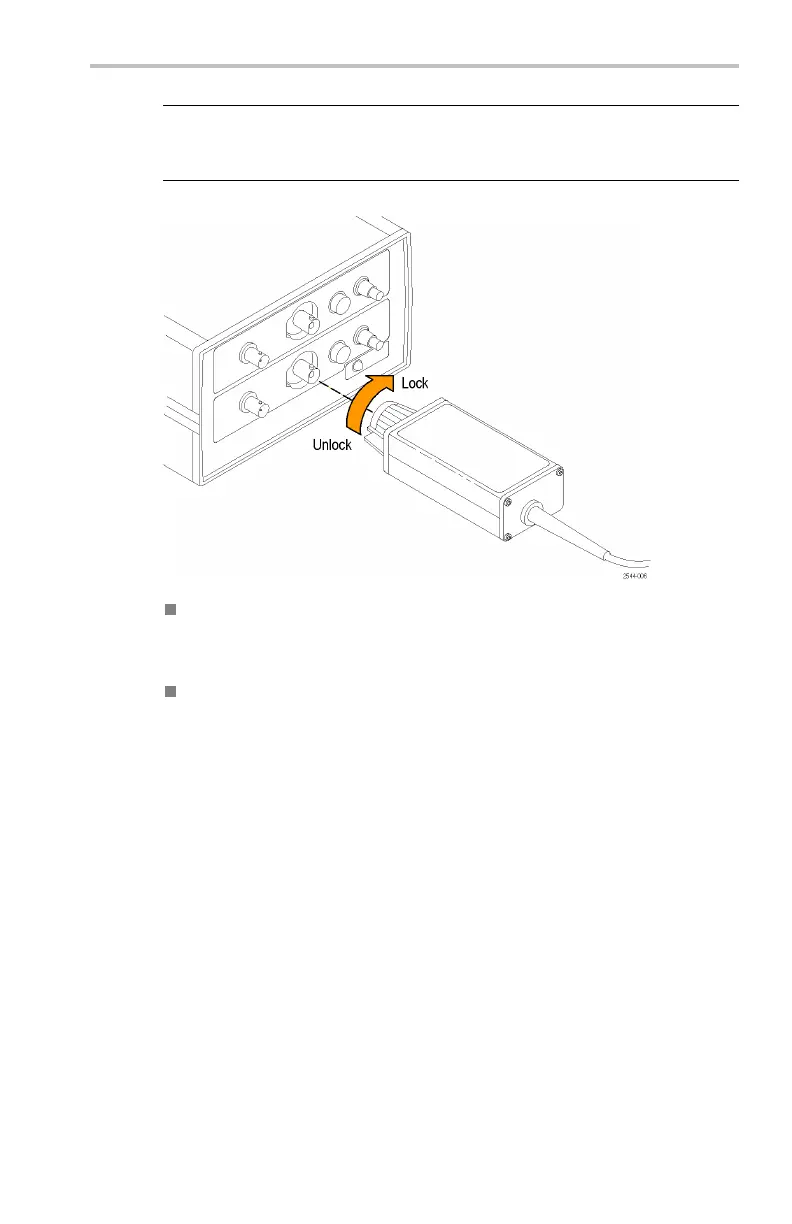

NOTE. Before installing the p robe, ma ke sure that the probe BNC shell is
in the unlocked position (CCW) as shown. The probe cann ot be installed
if the BNC shell is in the locked position (CW).
Connect a 50 Ω BNC coax cable (or BNC cable with a 50 Ω
terminator) between the C H 1 or CH 2 output connector and the
respective input channel on the host oscilloscope.
Use the probe as descr ibed in the probe instruct ion manual.
Information is available on applying a DC offset signal. (See page 8,
Offset Controls.)
1103 Power Supply Instruction Manual 7
