Tektronix 422 - Page 152

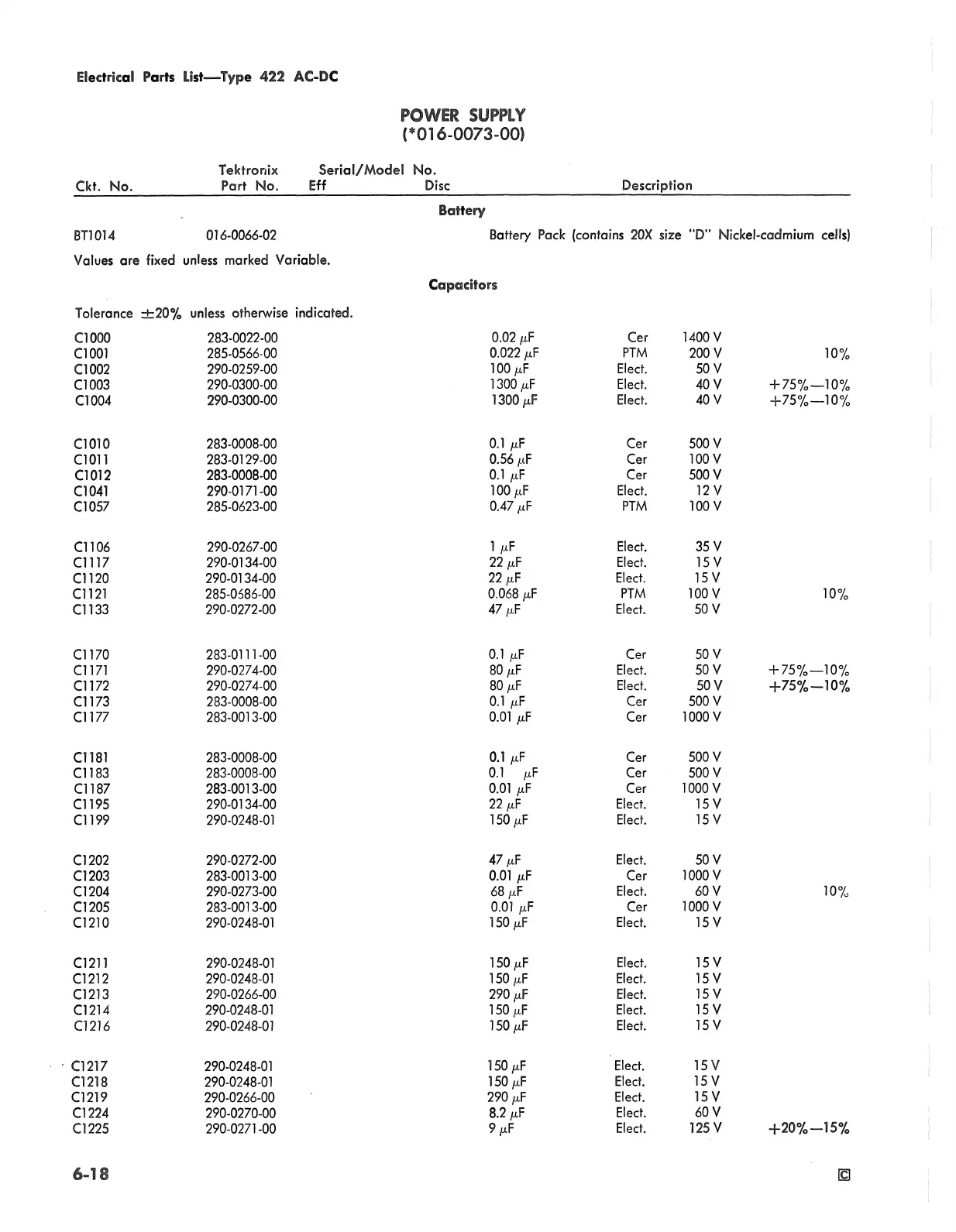

Electrical Parts List— Type 422 AC-DC
POWER SUPPLY
(*016-0073-00)
Tektronix Serial/Model No.
Ckt. No. Part No. Eff _____________ Disc _______________________ Description _____________________
Battery
BT1014 016-0066-02 Battery Pack (contains 20X size “D" Nickel-cadmium cells)
Values are fixed unless marked Variable.
Capacitors
Tolerance ±20% unless otherwise indicated.
a ooo
283-0022-00
0.02 julF Cer
1400 V
Cl 001
285-0566-00
0.022 julF PTM
200 V
10%
Cl 002
290-0259-00
100 J LlF Elect.
50 V
Cl 003
290-0300-00
1300 julF Elect.
40 V + 75%—10%
Cl 004
290-0300-00
1300 julF
Elect.
40 V
+75% — 10%
Cl 010
283-0008-00
0.1 julF
Cer
500 V
c io n
283-0129-00
0.56 jllF
Cer
100 V
Cl 012
283-0008-00
0.1 J i lF
Cer
500 V
Cl 041
290-0171-00
IOOjllF Elect.
12 V
Cl 057
285-0623-00
0.47 julF PTM
100 V
Cl 106
290-0267-00
1 julF
Elect.
35 V
Cl 117
290-0134-00
22 julF
Elect.
15V
Cl 120
290-0134-00
22 julF
Elect.
15V
Cl 121 285-0686-00
0.068 julF
PTM
100 V
10%
Cl 133
290-0272-00
47 julF
Elect.
50 V
Cl 170
283-0111-00
0.1 julF
Cer
50 V
Cl 171
290-0274-00
80 julF
Elect.
50 V + 75%—10%
Cl 172 290-0274-00
80 jxF
Elect.
50 V +75% —10%
Cl 173
283-0008-00
0.1 jjlF
Cer
500 V
Cl 177
283-0013-00
0.01 jxF Cer
1000 V
Cl 181
283-0008-00
0.1 JxF
Cer
500 V
Cl 183
283-0008-00
0.1 jjlF
Cer
500 V
Cll 87
283-0013-00
0.01 fiF
Cer
1000 V
Cl 195
290-0134-00
22 jjlF
Elect.
15V
Cll 99
290-0248-01
150 /xF
Elect.
15V
Cl 202 290-0272-00
47 /xF
Elect.
50 V
Cl 203
283-0013-00
0.01 fiF
Cer
1000 V
Cl 204 290-0273-00
68 j±F
Elect.
60 V
10%
Cl 205
283-0013-00
0.01 jxF
Cer
1000 V
Cl 210 290-0248-01
150 jxF
Elect.
15V
Cl 211
290-0248-01
150 jjlF
Elect.
15V
Cl 212
290-0248-01
150 jiF
Elect.
15V
Cl 213
290-0266-00
290 /jlF
Elect.
15V
Cl 214
290-0248-01 150 jjlF
Elect.
15V
0216
290-0248-01
150 fiF
Elect.
15V
0217
290-0248-01
150 jjlF
Elect.
15V
Cl 218
290-0248-01
150 jxF
Elect. 15V
Cl 219
290-0266-00
290 /xF
Elect.
15V
Cl 224
290-0270-00
8.2 /xF
Elect.
60 V
Cl 225
6-1®
290-0271-00
9/xF
Elect. 125 V +20% -15%
El
