Tektronix 422 - Page 153

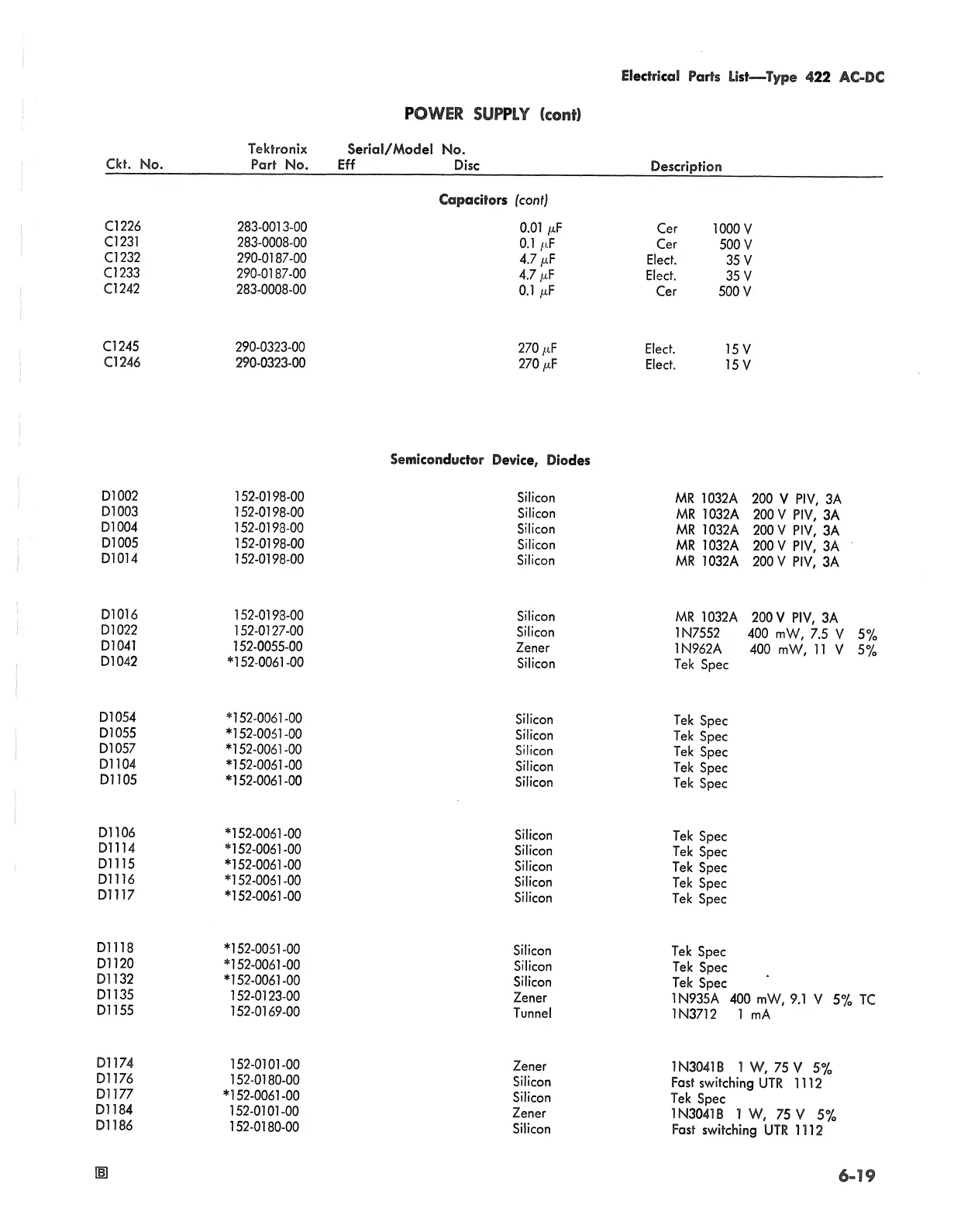

Electrical Parts List— Type 422 AC-DC
POWER SUPPLY (co n !)
Tektronix Serial/Model No.
Ckt. No. Part No. Eff Disc Description
Cl 226
283-0013-00
C1231
283-0008-00
Cl 232
290-0187-00
Cl 233
290-0187-00
Cl 242
283-0008-00
Cl 245
290-0323-00
0246
290-0323-00
D1002
152-0198-00
D1003
152-0198-00
D1004
152-0198-00
D1005
152-0198-00
D1014
152-0198-00
D1016
152-0198-00
D1022
152-0127-00
D1041
152-0055-00
D1042
*152-0061-00
D1054
*152-0061-00
D1055
*152-0061-00
D1057
*152-0061-00
D ll 04
*152-0061-00
D ll 05
*152-0061-00
D ll 06
*152-0061-00
D1114
*152-0061-00
DU 15
*152-0061-00
D1116
*152-0061-00
D1117
*152-0061-00
D1118
*152-0051-00
D ll 20
*152-0061-00
D ll 32
*152-0061-00
D ll 35
152-0123-00
D ll 55
152-0169-00
Dll 74
152-0101-00
Dll 76
152-0180-00
Dll 77
*152-0061-00
Dll 84
152-0101-00
D ll 86
152-0180-00
Capacitors (cont)
0.01 fiF
0.1 jllF
4.7 julF
4.7 ix F
0.1 fxF
270 fiF
270 fiF
Semiconductor Device, Diodes
Silicon
Silicon
Silicon
Silicon
Silicon
Silicon
Silicon
Zener
Silicon
Silicon
Silicon
Silicon
Silicon
Silicon
Silicon
Silicon
Silicon
Silicon
Silicon
Silicon
Silicon
Silicon
Zener
Tunnel
Zener
Silicon
Silicon
Zener
Silicon
Cer
1000 V
Cer
500 V
Elect.
35 V
Elect.
35 V
Cer
500 V
Elect.
15V
Elect.
15V
MR 1032A 200 V PIV, 3A
MR 1032A 200 V PIV, 3A
MR 1032A 200 V PIV, 3A
MR 1032A 200 V PIV, 3A
MR 1032A 200 V PIV, 3A
MR 1032A 200 V PIV, 3A
1N7552 400 mW, 7.5 V 5%
1N962A 400 mW, 11 V 5%
Tek Spec
Tek Spec
Tek Spec
Tek Spec
Tek Spec
Tek Spec
Tek Spec
Tek Spec
Tek Spec
Tek Spec
Tek Spec
Tek Spec
Tek Spec
Tek Spec
1N935A 400 mW, 9.1 V 5% TC
1N3712 1 mA
1N3041B 1 W, 75 V 5%
Fast switching UTR 1112
Tek Spec
1N3041B 1 W, 75 V 5%
Fast switching UTR 1112
