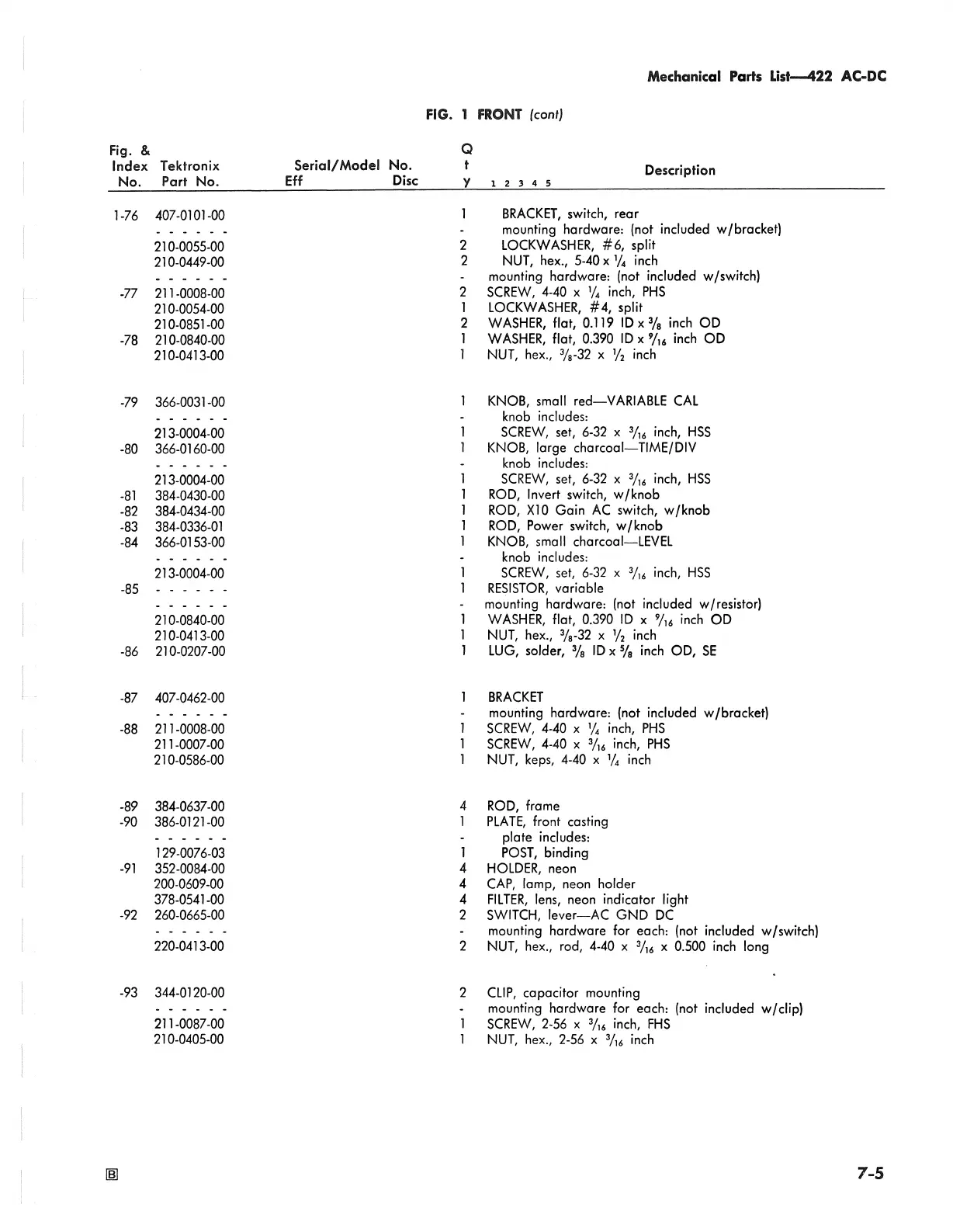

Mechanical Parti List— 422 AC-DC
FIG. 1 FRONT (cont)
Fig. &
Index
No.
Tektronix
Part No.
Serial/Model No.
Eff Disc
Q
f
y
Description
1 2 3 4 5
1-76
407-0101-00
i
BRACKET, switch, rear
-
mounting hardware: (not included w/bracket)
210-0055-00
2
LOCKWASHER, #6, split
210-0449-00
2 NUT, hex., 5-40 x V4 inch
-
mounting hardware: (not included w/switch)
-77
211-0008-00
2
SCREW, 4-40 x V4 inch, PHS
210-0054-00
1 LOCKWASHER, #4, split
210-0851-00
2
WASHER, flat, 0.119 ID x 3/8 inch OD
-78
210-0840-00
1
WASHER, flat, 0.390 ID x 9/ 16 inch OD
210-0413-00
1 NUT, hex., 3/8-32 x y2 inch
-79
366-0031-00
1
KNOB, small red—VARIABLE CAL
-
knob includes:
213-0004-00
1 SCREW, set, 6-32 x 3/u inch, HSS
-80
366-0160-00
1
KNOB, large charcoal—TIME/DIV
-
knob includes:
213-0004-00
1
SCREW, set, 6-32 x 3/u inch, HSS
-81
384-0430-00
1
ROD, Invert switch, w/knob
-82 384-0434-00
1
ROD, XI0 Gain AC switch, w/knob
-83
384-0336-01
1
ROD, Power switch, w/knob
-84
366-0153-00
1
KNOB, small charcoal—LEVEL
-
knob includes:
213-0004-00
1 SCREW, set, 6-32 x 3/16 inch, HSS
-85
1
RESISTOR, variable
-
mounting hardware: (not included w/resistor)
210-0840-00
1
WASHER, flat, 0.390 ID x %6 inch OD
210-0413-00
1
NUT, hex., 3/8-32 x y2 inch
-86
210-0207-00
1
LUG, solder, 3/8 ID x % inch OD, SE
-87
407-0462-00
1 BRACKET
-
mounting hardware: (not included w/bracket)
-88
211-0008-00
1
SCREW, 4-40 x % inch, PHS
211-0007-00
1
SCREW, 4-40 x 3/16 inch, PHS
210-0586-00
1 NUT, keps, 4-40 x y4 inch
-89 384-0637-00
4
ROD, frame
-90 386-0121-00
1
PLATE, front casting
-
plate includes:
129-0076-03
1
POST, binding
-91
352-0084-00
4 HOLDER, neon
200-0609-00
4
CAP, lamp, neon holder
378-0541-00
4 FILTER, lens, neon indicator light
-92 260-0665-00
2
SWITCH, lever—AC GND DC
-
mounting hardware for each: (not included w/switch)
220-0413-00
2
NUT, hex., rod, 4-40 x 3/]6 x 0.500 inch long
-93 344-0120-00
2
CLIP, capacitor mounting
-
mounting hardware for each: (not included w/clip)
211-0087-00
1
SCREW, 2-56 x 3/u inch, FHS
210-0405-00
1
NUT, hex., 2-56 x 3/1<5 inch
7-5
