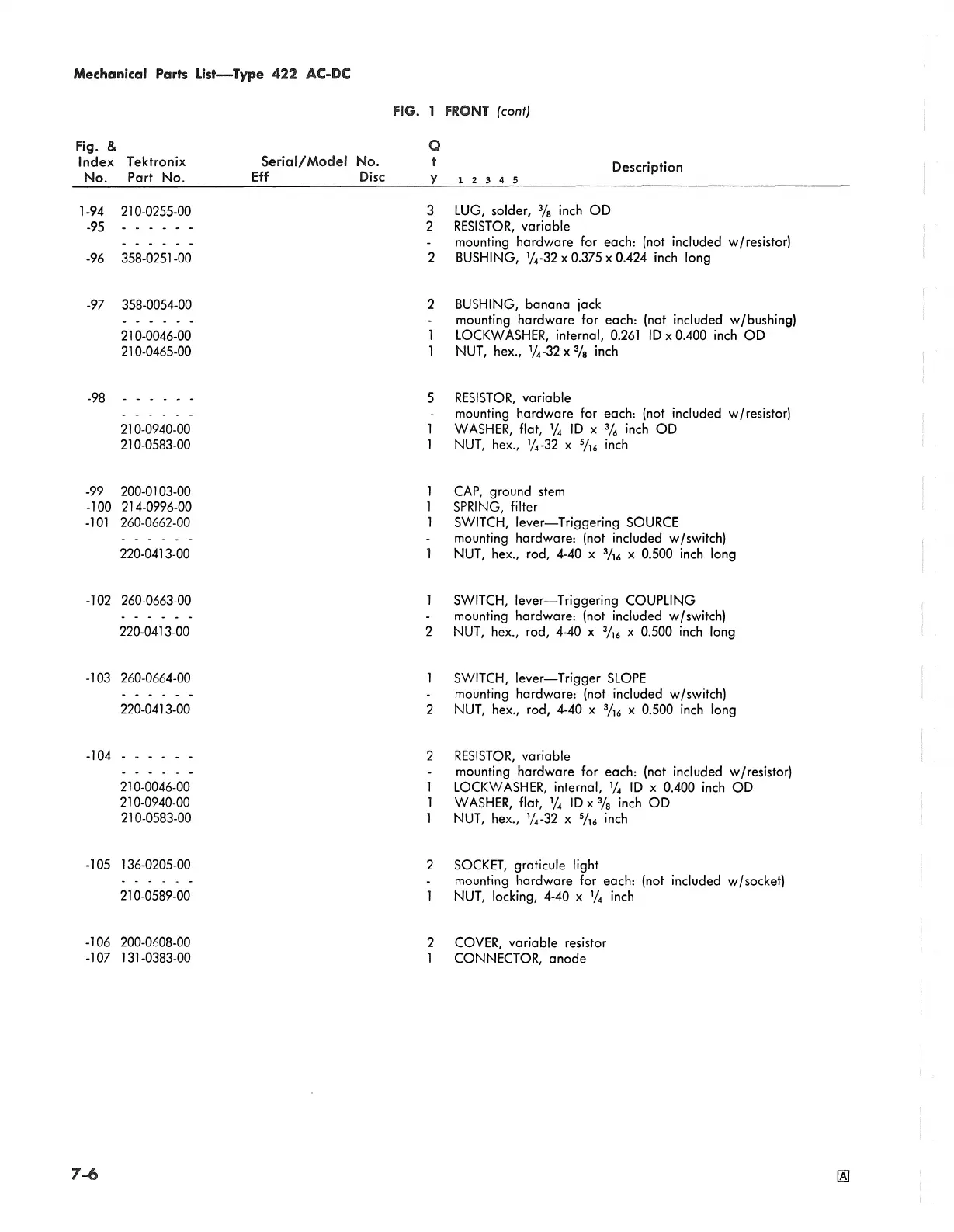

Mechanical Parts List— Type 422 AC-DC
FIG. 1 FRONT (cont)
Fig. & Q
Index Tektronix Serial/Model No. t Descriotion
No. Part No. ________ Eff ____________ Disc y 12345 __________________ P
1-94 210-0255-00 3 LUG, solder, % inch OD
- 9 5 ................................................... 2 RESISTOR, variable
................................................................................... - mounting hardware for each: (not included w/resistor)
-96 358-0251-00 2 BUSHING, y4-32 x 0.375 x 0.424 inch long
-97 358-0054-00 2 BUSHING, banana jack
.................................................................................... - mounting hardware for each: (not included w/bushing)
210-0046-00 1 LOCKWASHER, internal, 0.261 ID x 0.400 inch OD
210-0465-00 1 NUT, hex., y4-32 x 3/8 inch
- 9 8 ................... 5 RESISTOR, variable
................................................... - mounting hardware for each: (not included w/resistor)
210-0940-00 1 WASHER, flat, y4 ID x % inch OD
210-0583-00 1 NUT, hex., y4-32 x 5/u inch
-99 200-0103-00 1 CAP, ground stem
-100 214-0996-00 1 SPRING, filter
-101 260-0662-00 1 SWITCH, lever—Triggering SOURCE
................................................................................... - mounting hardware: (not included w/switch)
220-0413-00 1 NUT, hex., rod, 4-40 x 3/u x 0.500 inch long
-102 260-0663-00 1 SWITCH, lever—Triggering COUPLING
................................................................................... - mounting hardware: (not included w/switch)
220-0413-00 2 NUT, hex., rod, 4-40 x 3/u x 0.500 inch long
-103 260-0664-00 1 SWITCH, lever—Trigger SLOPE
................................................................................... - mounting hardware: (not included w/switch)
220-0413-00 2 NUT, hex., rod, 4-40 x 3/u x 0.500 inch long
-1 0 4 ................................................... 2 RESISTOR, variable
................................................... - mounting hardware for each: (not included w/resistor)
210-0046-00 1 LOCKWASHER, internal, y4 ID x 0.400 inch OD
210-0940-00 1 WASHER, flat, y4 ID x % inch OD
210-0583-00 1 NUT, hex., y4-32 x 5/16 inch
-105 136-0205-00 2 SOCKET, graticule light
.................................................................................... - mounting hardware for each: (not included w/socket)
210-0589-00 1 NUT, locking, 4-40 x V4 inch
-106 200-0608-00 2 COVER, variable resistor
-107 131-0383-00 1 CONNECTOR, anode
