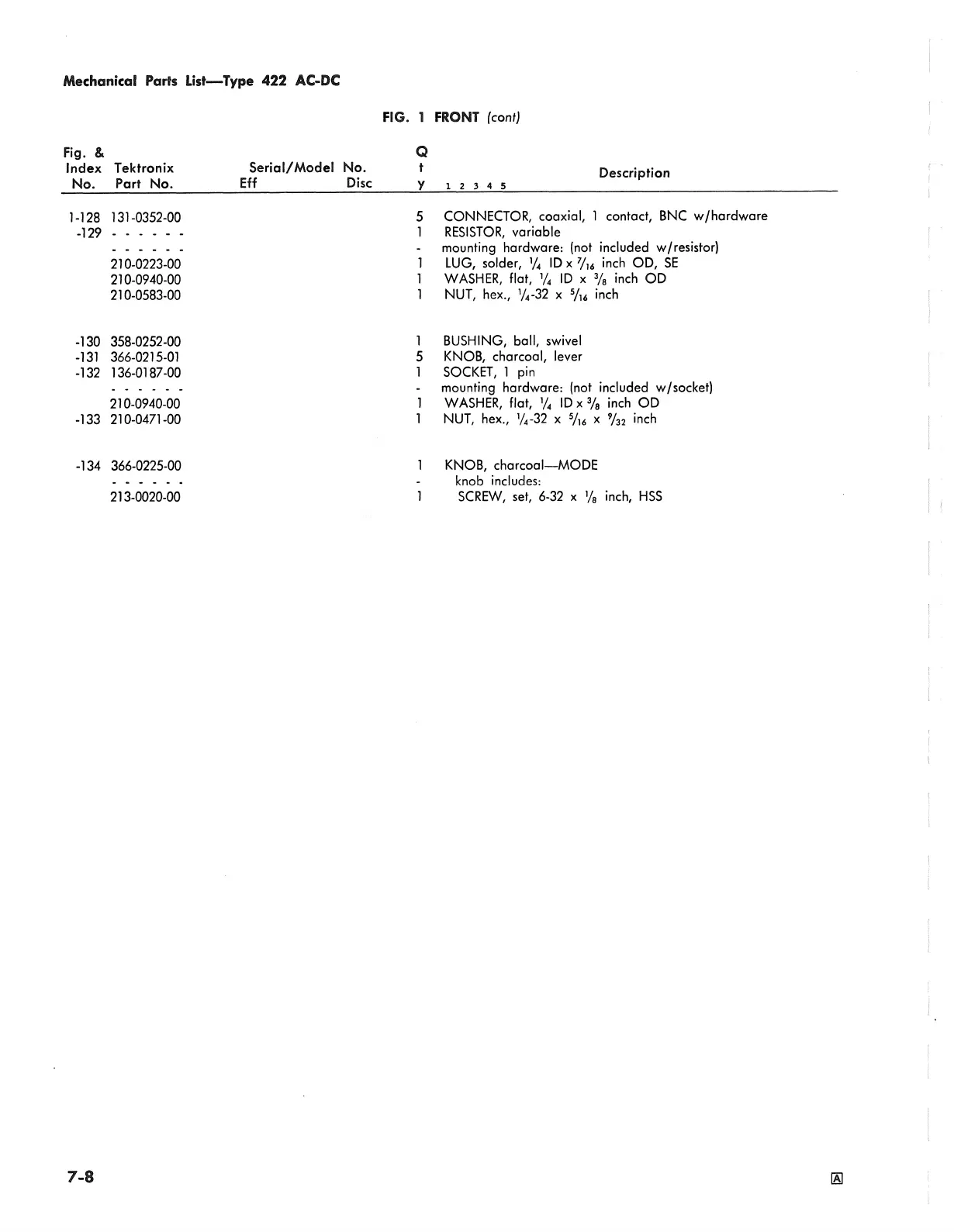

Mechanical Parts List— Type 422 AC-DC
FIG. 1 FRONT fconf)
Fig. a
Index Tektronix
No. Part No.
Q
Serial/Model No. t Description
Eft Disc y 12345
1-128 131-0352-00
-1 2 9
...................
5 CONNECTOR, coaxial, 1 contact, BNC w/hardware
1 RESISTOR, variable
mounting hardware: (not included w/resistor)
210-0223-00
210-0940-00
210-0583-00
1 LUG, solder, y4 ID x 7/ u inch OD, SE
1 WASHER, flat, y4 ID x % inch OD
1 NUT, hex., V4-32 x 5/ u inch
-130 358-0252-00
-131 366-0215-01
-132 136-0187-00
1 BUSHING, ball, swivel
5 KNOB, charcoal, lever
1 SOCKET, 1 pin
mounting hardware: (not included w/socket)
210-0940-00
-133 210-0471-00
1 WASHER, flat, % ID x3/8 inch OD
1 NUT, hex., V4-32 x 5/ u x 9/32 inch
-134 366-0225-00
1 KNOB, charcoal—MODE
knob includes:
213-0020-00
1 SCREW, set, 6-32 x y8 inch, HSS
7-8
